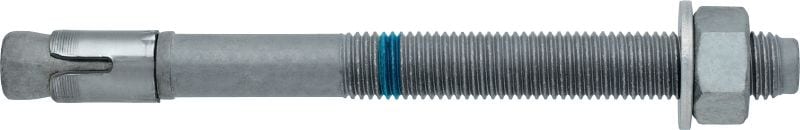

HSA-F HDG Wedge anchor
High-performance wedge anchor for everyday static and seismic loads in uncracked concrete (hot-dip galvanised)
- Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
- Head configuration: Externally threaded
- Approvals / test reports: ETA
Customers also searched for standard expansion anchor, hot dipped glavanised anchor, anchoring high loads, anchors or anchoring.
Technical Data
Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Head configuration
Externally threaded
Approvals / test reports
ETA
Base materials
Concrete (non-cracked)
Type of fastening
Pre-fastening, Through-fastening
Installation tools
TE 6-A36 Cordless rotary hammer
PROFIS software
Yes
Documents
Features & Applications
Features
- ETA-approved torqueing when used with an SIW 14-A or 22-A impact wrench with the S-TB torque-controlled socket wrench
- Faster and easier anchor setting with the HS-SC setting tool and S-TB torque-controlled socket wrench
- Excellent edge and spacing distances
- Three embedment depths offering maximum flexibility
Applications

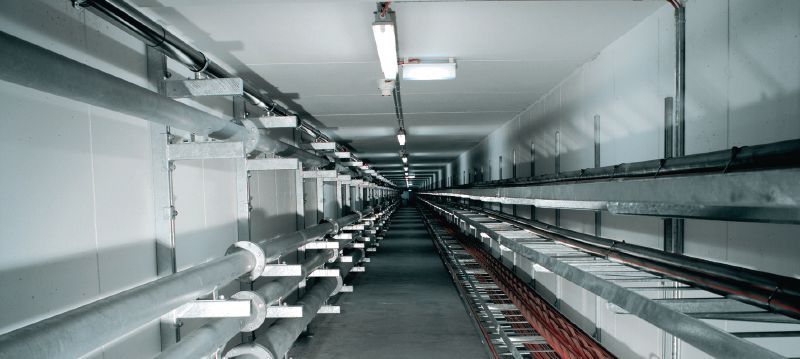

- Wide range of fastening applications in uncracked concrete

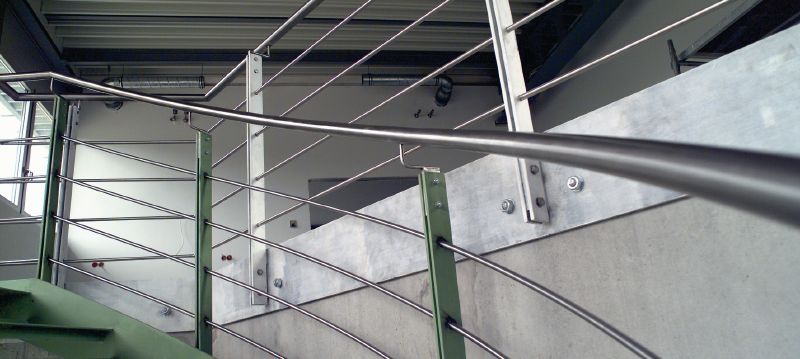

- Handrails and balustrades
- Ladders and staircases

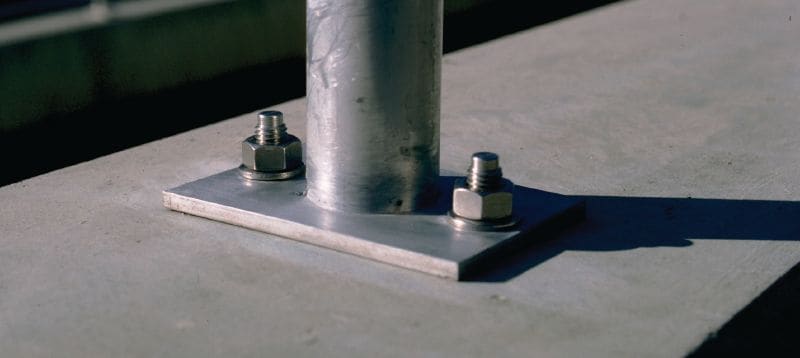

- Guard rails
For approval or certificate information, please see individual items.
