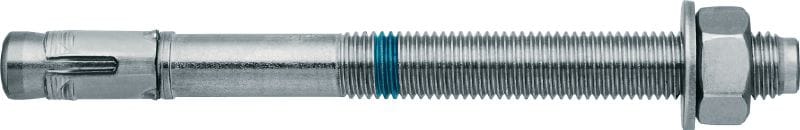

HSA-R2 SS Wedge anchor
.jpg)
.jpg)
High-performance wedge anchor for everyday static loads in uncracked concrete (A2 stainless steel)
- Material, corrosion: Stainless steel, A2
- Head configuration: Externally threaded
- Approvals / test reports: ETA
Technical Data
Material, corrosion
Stainless steel, A2
Head configuration
Externally threaded
Approvals / test reports
ETA
Type of fastening
Pre-fastening, Through-fastening
Installation tools
TE 6-A36 Cordless rotary hammer
PROFIS software
Yes
Environmental conditions
Indoor with temporary condensation
Documents
Features & Applications
Features
- ETA-approved torqueing when used with an SIW 14-A or 22-A impact wrench and S-TB torque-controlled socket wrench
- Faster and easier anchor setting with the HS-SC setting tool and S-TB torque-controlled socket wrench
- High loads (optimal utilization of the concrete strength)
- Excellent edge and spacing distances
- 3 embedment depths offering maximum flexibility
Applications
- Wide range of fastening applications in un-cracked concrete

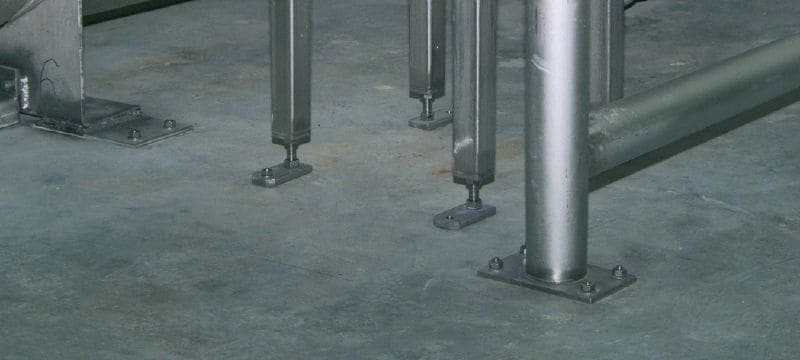

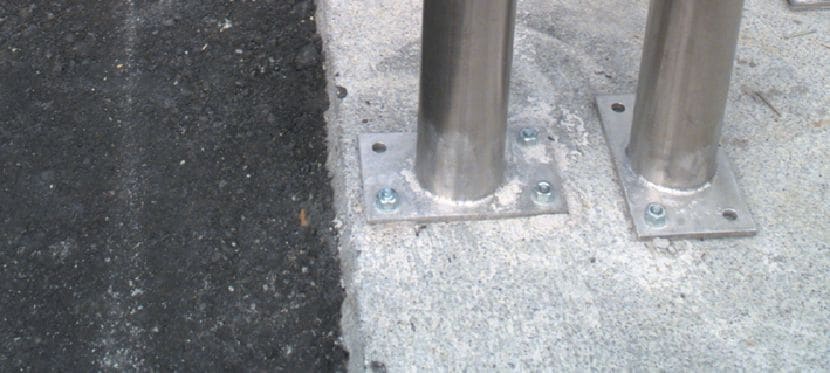

- Handrails and balustrades
- Ladders and staircases
- Guard rails
For approval or certificate information, please see individual items.
