HSA-BW Wedge anchor

Stud anchor HSA M12x100 20/5/- BW #2004228

Configurator
Technical Data
Documents
Features & Applications
Related Products
li03291.tif
HSA-BW, HST-BW
HSA-BW, HST-BW
HSA

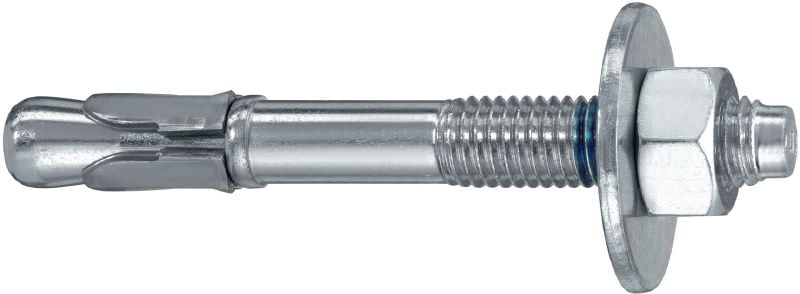

High-performance wedge anchor for everyday static loads in uncracked concrete (carbon steel, big washer)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA

Choose options

Anchor size
  • M12
Anchor length
  • 100 mm
Pack size
  • 16 pc
 Product options
Quantity
Packs
Total Pieces
16
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 840.19
AED 8.75 / 1 Piece

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA
PROFIS software
Yes

Documents

Approval document
Brochure
Operating Instruction
Instruction for use
pdf ETA-11/0374 HSA stud anchor (ETAG 001-02, Option 7), English, German, Polish [ 9.2 MB ]

Features & Applications

Features

  • Faster and easier anchor setting with the HS-SC setting tool and S-TB torque-controlled socket wrench
  • ETA-approved torqueing when used with an SIW 14-A or 22-A impact wrench and S-TB torque-controlled socket wrench
  • Three embedment depths offering maximum flexibility
  • Suitable for pre- and through-fastening in uncracked concrete
  • Large DIN 9021 washer – suitable for use in oversized or slotted clearance holes

Applications

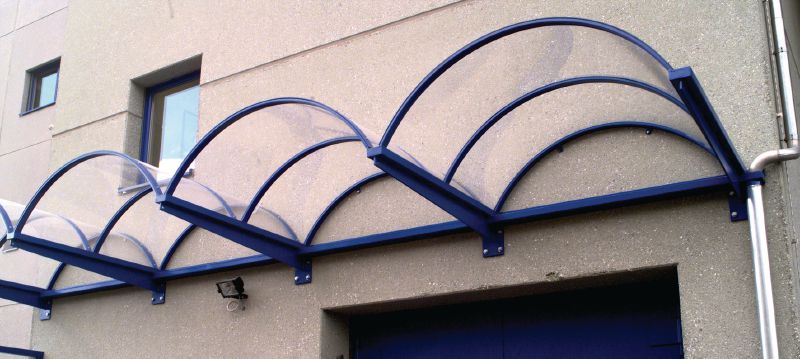

  • Wide range of fastening applications in concrete

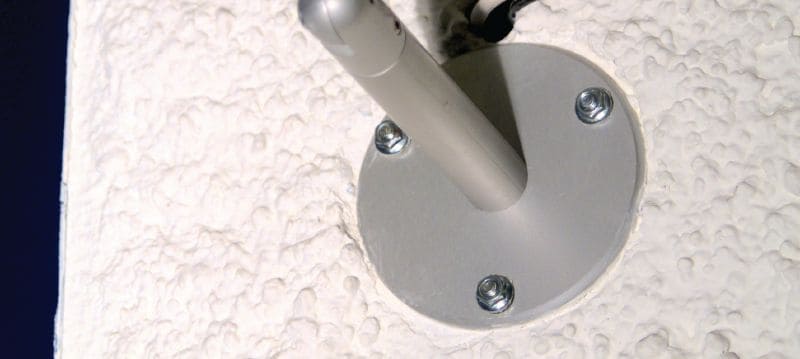

  • Fastening decorative elements

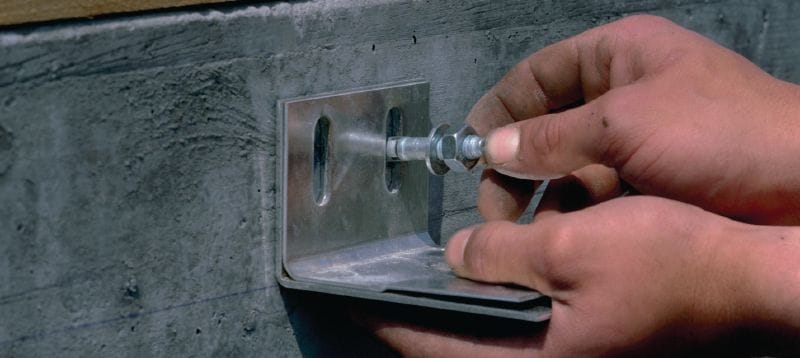

  • Fastening through slotted or oversized holes
