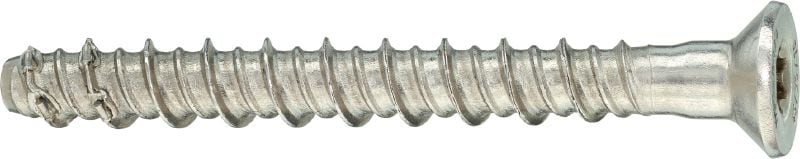

HUS4-CR Screw anchor

High-performing countersunk head screw anchor for fastening to concrete (stainless steel)

Material, corrosion: Stainless steel, A4
Head configuration: Countersunk
Approvals / test reports: ETA, Fire

Choose options

Anchor size

6 mm
8 mm
10 mm

Anchor length

40 mm
60 mm
65 mm
75 mm
85 mm
95 mm
105 mm

Pack size

25 pc
50 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 1,895.81

Technical Data

Material, corrosion

Stainless steel, A4

Head configuration

Countersunk

Approvals / test reports

ETA, Fire

Base materials

Concrete (aerated), Concrete (cracked), Concrete (non-cracked), Masonry (solid)

Reusable (and removable)

Not possible

Cleaning procedures

Manual cleaning, Non-cleaning

PROFIS software

Yes

Environmental conditions

Dry indoor, Outdoor, low to moderate pollution (C3), Outdoor with heavy industrial pollution

Material composition

Stainless steel, A4

Documents

pdf ETA-20/0867, HUS4 for fastening in concrete static loading, ML, English, German, Polish [ 37.2 MB ]

Download

pdf ETA-10/0005, HUS4/HUS3/HUS for fastening in concrete, static loading, ML, German, English, French, Polish [ 13.3 MB ]

Download

pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]

Download

Features & Applications

Features

Removable and high corrosion resistance – ideal for outdoor applications
Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
Improved setting with less blocking – thanks to smaller core diameter and new thread design
Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

Fastening non-structural baseplates – such as handrails, staircases and balustrades
Suitable for use in uncracked and cracked concrete
Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
Suitable for dry indoor and outdoor use, including high corrosion environments

For approval or certificate information, please see individual items.
