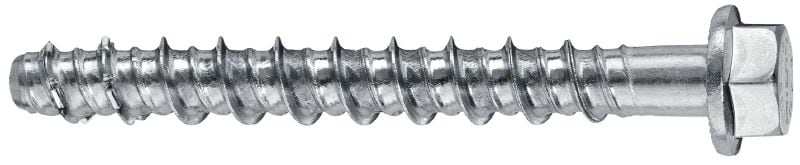

HUS4-HR screw anchor

High-performing hexagonal head screw anchor for fastening to concrete (stainless steel)

  • Material, corrosion: Stainless Steel, 316
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 6 mm
  • 8 mm
  • 10 mm
  • 14 mm
Anchor length
  • 35 mm
  • 45 mm
  • 55 mm
  • 65 mm
  • 75 mm
  • 80 mm
  • 85 mm
  • 95 mm
  • 105 mm
  • 115 mm
  • 120 mm
  • 130 mm
  • 135 mm
Pack size
  • 8 pc
  • 25 pc
  • 50 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 888.86

Technical Data

Material, corrosion
Stainless Steel, 316
Head configuration
Hex head
Approvals / test reports
ETA, Fire
Base materials
Concrete (aerated), Concrete (cracked), Concrete (non-cracked), Masonry (solid)
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor, Outdoor, low to moderate pollution (C3), Outdoor with heavy industrial pollution
Material composition
Stainless steel, A4

Documents

Features & Applications

Features

  • Removable and high corrosion resistance – ideal for outdoor applications
  • Simpler to instal – less drilling, no cleaning, no high-accuracy torque wrench and no hammering required
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Hexagonal head – with an integrated washer
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

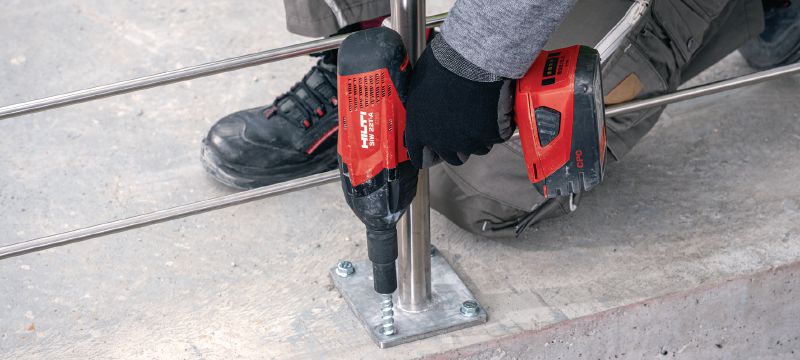

  • Fastening of baseplates – such as secondary steelwork, fences, handrails and racking systems
  • Suitable for use in uncracked and cracked concrete
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
  • Suitable for dry indoor and outdoor use, including high corrosion environments

For approval or certificate information, please see individual items.
