HUS4-C Screw anchor

L144885 (1918697)
L069403.tiff
L156305_cropped (4393582)

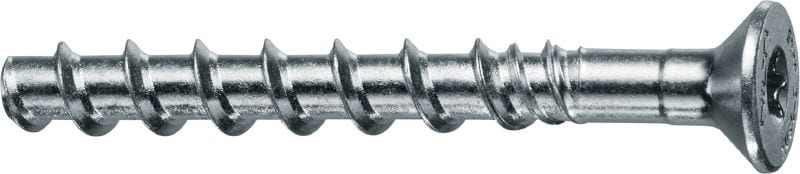

High-performing countersunk head screw anchor for fastening to concrete and masonry (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Countersunk
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Anchor size
  • 8 mm
  • 10 mm
Anchor length
  • 75 mm
  • 90 mm
  • 100 mm
  • 110 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
From AED 848.60

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

pdf ETA-20/0867, HUS4 for fastening in concrete static loading, ML, English, German, Polish [ 37.2 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]
pdf ER-969 HUS4_IAPMO_Evaluation_Report, English [ 1.1 MB ]
pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]

Features & Applications

Features

  • Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

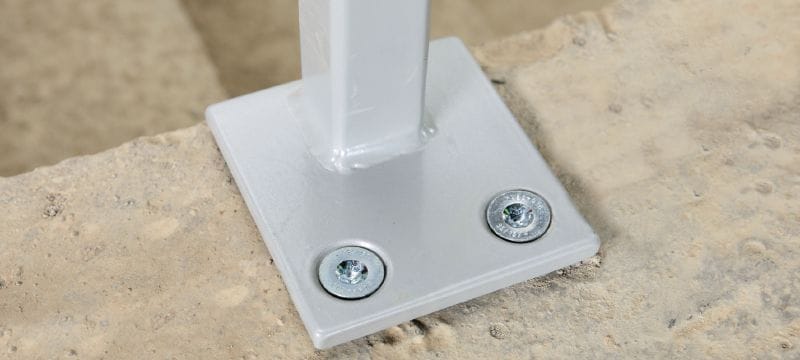

  • Fastening non-structural baseplates – such as handrails, staircases and balustrades
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
  • Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
