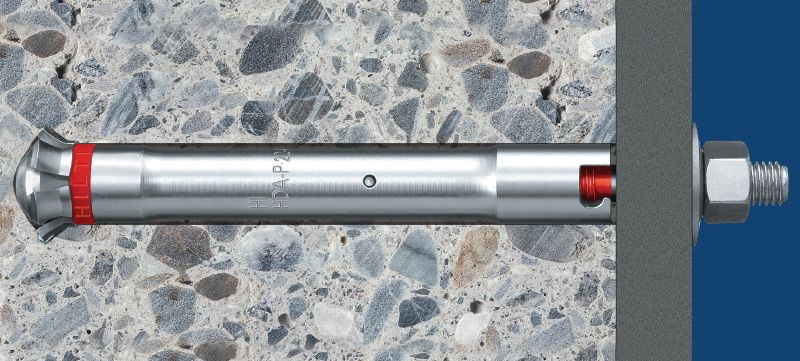

Ultimate-performance pre-set undercut anchor for dynamic loads (zinc-plated)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fatigue, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Customers also searched for heavy duty fasteningfastening support heavy pipesheavy anchor supportsanchor supports or anchoring.

Choose options

Anchor size
  • M10
  • M16
  • M20
Standard embedment depth
  • 100 mm
  • 190 mm
  • 250 mm
Max. fixture thickness at standard embedment depth
  • 20 mm
  • 40 mm
  • 50 mm
Pack size
  • 2 pc
  • 4 pc
  • 12 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 3,942.58

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fatigue, ICC-ES report (concrete), Nuclear (NQA-1), Seismic
Fatigue loading
Yes
PROFIS software
Yes
Type of fastening
Pre-fastening

Documents

Features & Applications

Features

  • Combines the flexibility and immediate loading capability of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to low expansion forces
  • Self-undercutting facilitates fast and reliable installation without need for a separate undercutting tool or additional operations
  • The resulting keying effect provides a secure hold even in cracked concrete under dynamic loading
  • Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants

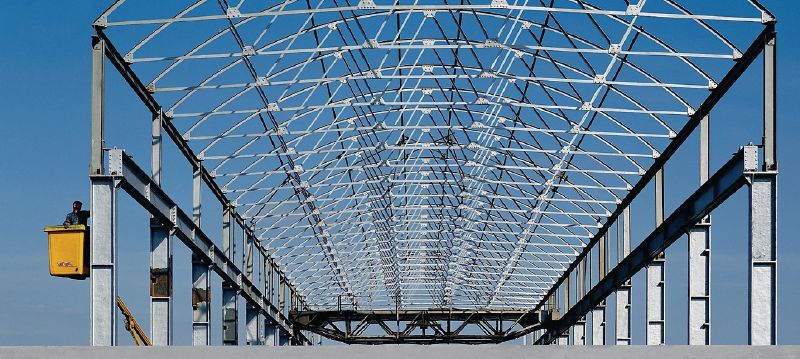

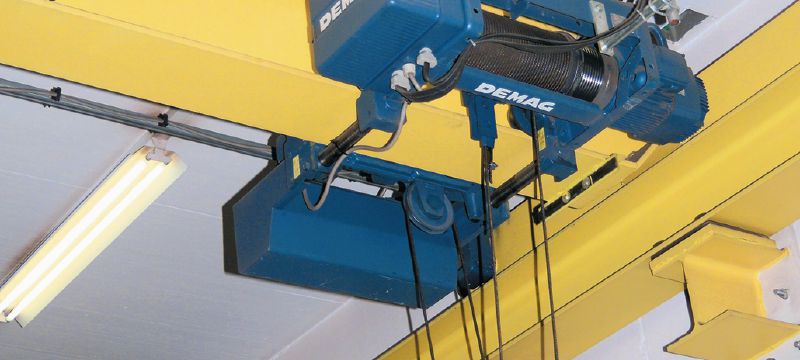

  • Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
