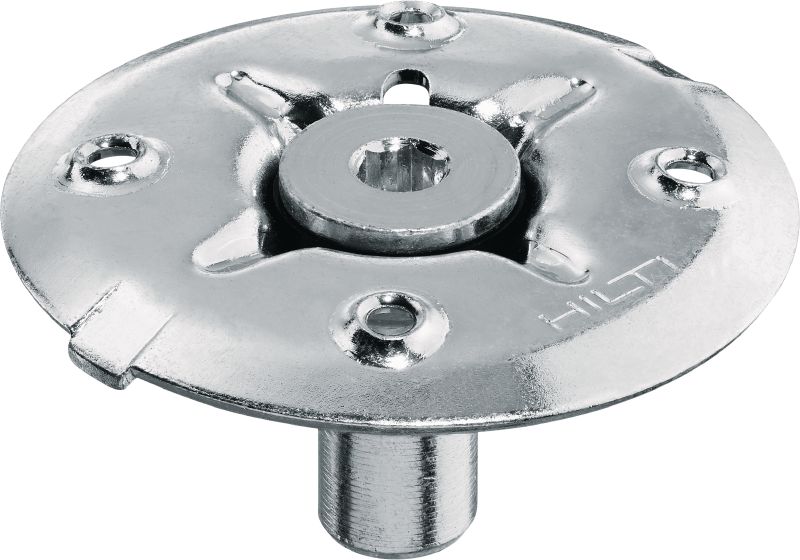

X-FCM Grating fastener disc (zinc coated)

Grating disc X-FCM 28/33 #2349078

Zinc coated grating fastener disc for fixing floor grates with threaded studs in low corrosion environments

  • Application: Grating
  • Approvals: ABS, LR
  • For use with (tools): BX 3, DX 351
ultimate

Customers also searched for grating discfastening gratingfastening grating corrosive environmentsindustrial fastening or direct fastening.

Choose options

Grating height
  • 28 - 33 mm
  • 38 - 43 mm
  • 48 - 53 mm
Grating width range
  • 18 - 40 mm
Corrosion protection
  • Galvanised zinc coated <20 µm
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

3 Packs (Total pieces 300)

Ex Vat and Packaging/Forwarding charges

AED 10,272.88

AED 34.24 / 1 Piece

Technical Data

Application
Grating
Approvals
ABS, LR
For use with (tools)
BX 3, DX 351
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor, Indoor with temporary condensation
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate

Documents

Features & Applications

Features

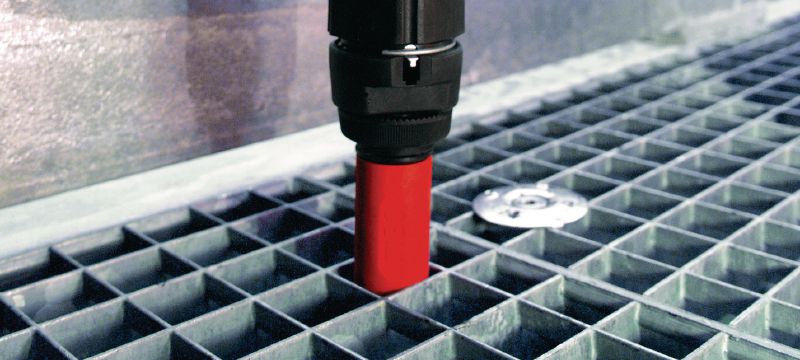

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening grating to steel in low corrosion C1 environments, such as dry and indoor locations
  • For gratings exposed to standard loads such as walkways
  • Fastening steel grating
  • Fastening fiber-reinforced plastic (FRP) grating
  • Grating fastener disc for use with M8 threaded studs
