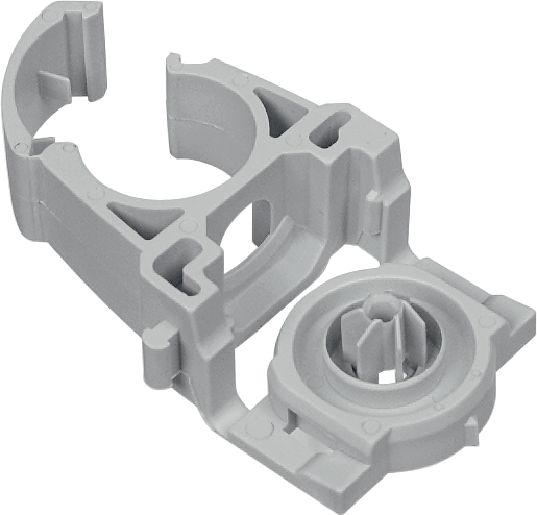

X-EKSC MX Pipe clamp

Electr. cable clamp X-EKSC 16 MX #274083

Plastic cable/conduit clamp with clip-in design and snap-lock for use with collated nails

  • Application: Conduits
  • Material: Polyamide (PA), Halogen-free, Flame-retardant according to EN 60695-2-11 at 650°C, Flame-retardant according to IEC 60695-2-11 at 650°C, Flame-retardant according to VDE 0471 part 2-11 at 650°C, UV-resistant (fair)
  • For use with (tools): BX 3-ME, BX 3-ME 02, DX 351 MX, DX 460 MX, DX 5 MX, GX 120-ME, GX 3-ME
ultimate

Choose options

Cable conduit diameter
  • 16 mm
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Application
Conduits
Material
Polyamide (PA), Halogen-free, Flame-retardant according to EN 60695-2-11 at 650°C, Flame-retardant according to IEC 60695-2-11 at 650°C, Flame-retardant according to VDE 0471 part 2-11 at 650°C, UV-resistant (fair)
For use with (tools)
BX 3-ME, BX 3-ME 02, DX 351 MX, DX 460 MX, DX 5 MX, GX 120-ME, GX 3-ME
Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Steel
Approvals
CSTB, ETA, UL
Width
26 mm
Environmental conditions
Dry indoor
Product class
Ultimate

Documents

Features & Applications

Features

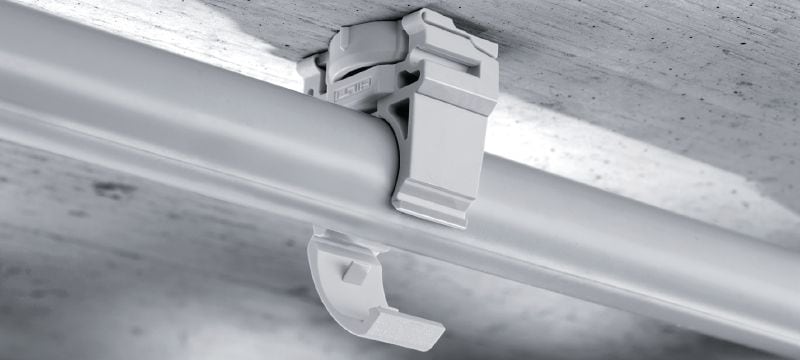

  • Friction-fit in the nose of BX/GX/DX nailers for easy handling
  • Closing latch for additional security
  • Silicone-free and halogen-free material
  • Virtually dust-free fastening
  • Quick, cost-efficient fastening

Applications

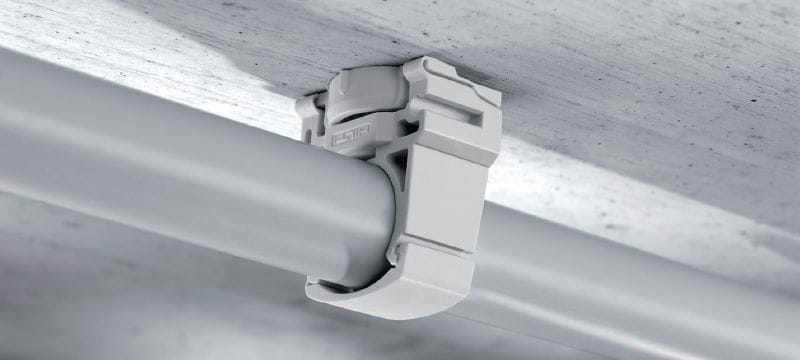

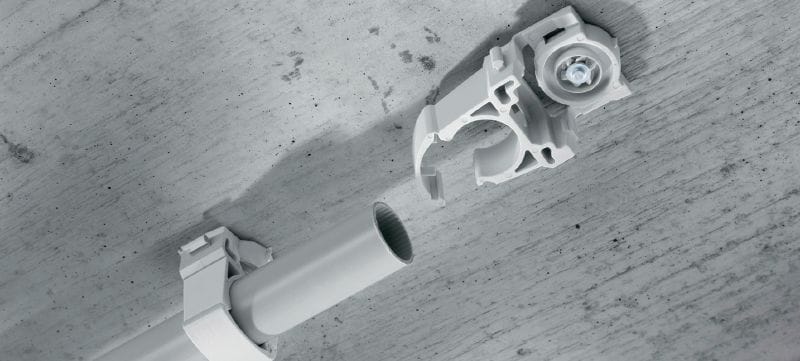

  • Fastening cable conduits
