HAS-U Anchor rod

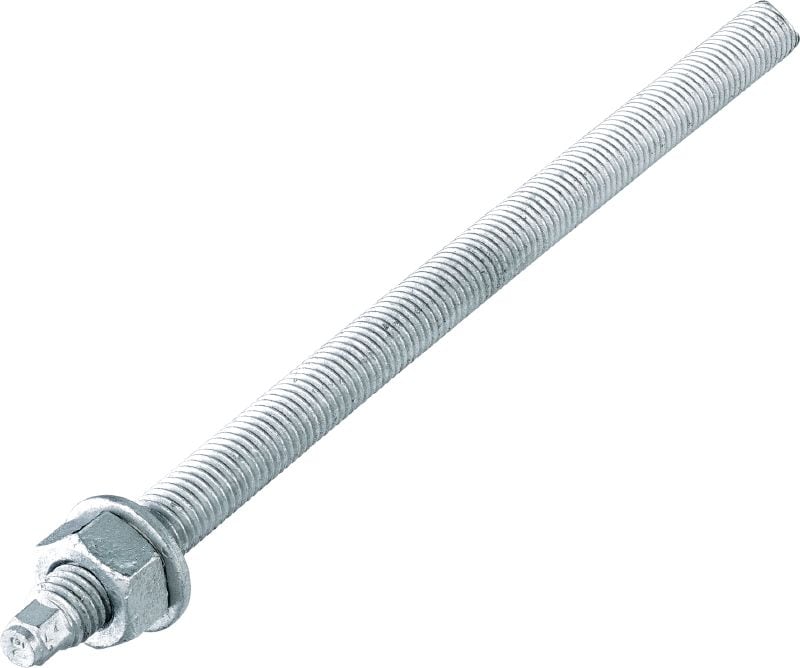

Anchor rod HAS-U A4 M20x480 #2223931

High-performance anchor rod for capsule and injectable hybrid/epoxy anchoring in concrete and masonry (5.8 or 8.8 carbon steel and HDG or A4 stainless steel)

  • Material, corrosion: Carbon steel 5.8, Carbon steel 5.8 HDG, Carbon steel 8.8, Carbon Steel, Hot-Dip Galvanised, Stainless steel, A4
  • Drill bit diameter: 22 mm
  • Useable thread length: 445 mm

Choose options

Anchor size
  • M6
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
  • M27
  • M30
  • M36
Anchor length
  • 80 mm
  • 95 mm
  • 105 mm
  • 110 mm
  • 115 mm
  • 120 mm
  • 130 mm
  • 150 mm
  • 160 mm
  • 165 mm
  • 170 mm
  • 180 mm
  • 190 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 300 mm
  • 340 mm
  • 350 mm
  • 380 mm
  • 400 mm
  • 450 mm
  • 460 mm
  • 480 mm
  • 500 mm
Head configuration
  • Hex head
Material composition
  • Galvanised carbon steel
  • Stainless steel, A4
Pack size
  • 2 pc
  • 4 pc
  • 5 pc
  • 10 pc
  • 20 pc
  • 100 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 5,835.12
AED 583.51 / 1 Piece

Technical Data

Material, corrosion
Carbon steel 5.8, Carbon steel 5.8 HDG, Carbon steel 8.8, Carbon Steel, Hot-Dip Galvanised, Stainless steel, A4
Drill bit diameter
22 mm
Useable thread length
445 mm
PROFIS software
Yes
Application

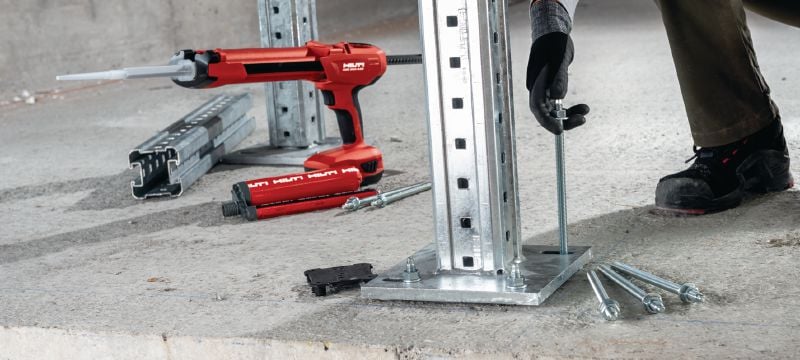

Baseplate

Documents

Features & Applications

Features

  • Available in a wide range of anchor rod diameters (M6-M39) and material compositions (carbon steel, hot-dip galvanised, A4 stainless steel)
  • More peace of mind - already included in ETAs of HIT injectable mortars
  • Head marking for easy verification of steel grade and rod length, even after installation
  • Inspection certificate 3.1 or 2.2 - confirmation of material and mechanical proprieties available upon request
  • Increased productivity - pre-cut and pre-packaged with nut and washer, eliminating need to cut metre rods on site

Applications

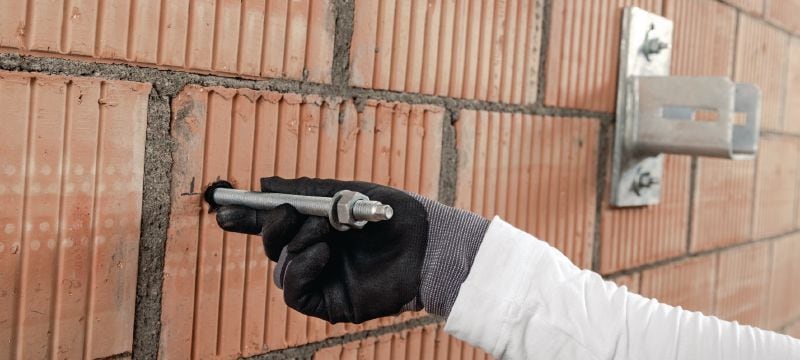

  • Fastenings in concrete and masonry in combination with compatible Hilti HIT adhesive anchoring systems
  • ETA approval for fatigue fastenings (only HAS-U A4 M8-M24)
