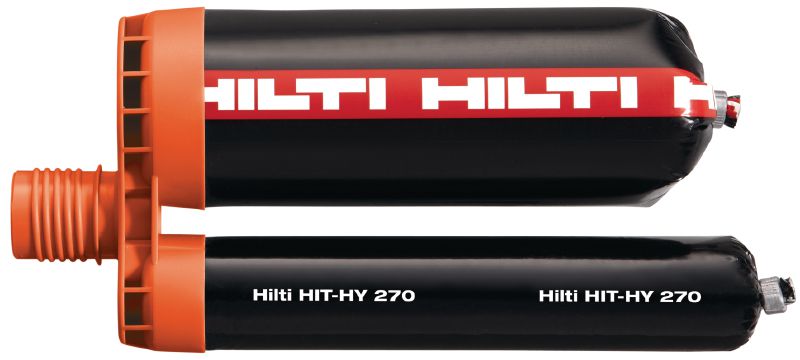

HIT-HY 270 Adhesive anchor

Ultimate-performance injectable hybrid mortar with approvals for fastening and retrofitting in hollow and solid masonry

Base materials: Masonry (hollow), Masonry (solid)
Base material condition: Dry
Approvals / test reports: ETA

Choose options

Content per can/cartridge

0.33 l
0.5 l

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 168.91

Technical Data

Base materials

Masonry (hollow), Masonry (solid)

Base material condition

Dry

Approvals / test reports

ETA

PROFIS software

Yes

Anchoring elements

HIT-SC mesh sleeves

Environmental conditions

Dry indoor

Cleaning procedures

Manual cleaning

Storage and transportation temperature range

5 - 25 °C

In-service temperature – range

-40 - 80 °C

Free of styrene

Yes

Documents

pdf ETA-22/0395 steel to masonry connection, Seismic loading, ML, English, French, German [ 3 MB ]

Download

pdf ESR-4144 Hilti HIT-HY 270 October 2024, English [ 993.3 KB ]

Download

pdf ETA 13/1036 for HIT-HY 270 injection mortar for anchoring in masonry, English, German, Italian, Polish, French [ 18.3 MB ]

Download

pdf ETA-19/0160 steel to masonry connection, static loading, ML, English, German, Polish [ 27.5 MB ]

Download

pdf ICC-ESR-4143 for HIT-HY 270 Injectable mortars, English [ 4.5 MB ]

Download

Features & Applications

Features

Seismic ETA masonry approval, new TR053 and technical data available – significantly increases your flexibility when designing steel-to-masonry connections
Simplify code-compliant design – design fastenings in masonry, including under seismic loads, with greater speed and ease using the PROFIS Engineering software suite
Compatible with HIT-SC composite sleeves for use in hollow base materials – offering greater flexibility through use of multiple sleeve combinations and also minimising mortar waste by allowing more accurate dosing
On-site anchor testing available – request Hilti’s on-site anchor testing service for verification of both tensile and shear loads in both horizontal and vertical directions

Applications

Fastening structural steel to hollow and solid masonry
Cost-effective seismic retrofitting and structural strengthening of old masonry walls
Refurbishment and renovations of older masonry buildings
Heavy bracing of items such as sunshades on insulated materials
Fastening glass balustrade assemblies

For approval or certificate information, please see individual items.
