HAS-R Anchor rod

Anchor rod HAS-R M12x110/28 #259952

Configurator
Technical Data
Documents
Features & Applications
Related Products
31671.tif
HVU
00001275.tif
L100856_cropped (181130)
L100875_cropped (181142)

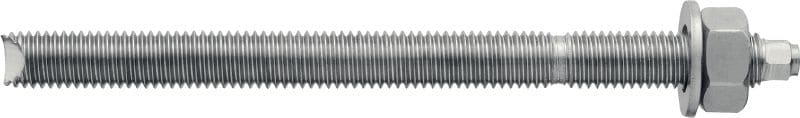

High-performance anchor rod with hexagonal head for adhesive capsules (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Drill bit diameter: 14 mm
  • PROFIS software: Yes

Choose options

Material composition
  • Steel, A4 (SS316)
Anchor size
  • M12
Anchor length
  • 160 mm
Head configuration
  • Externally threaded
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Stainless steel, A4
Drill bit diameter
14 mm
PROFIS software
Yes

Documents

Technical information
Approval document
Instruction for use
pdf Technical data sheet for Hilti HIT-ICE injectable mortar in concrete, English [ 1.8 MB ]

Features & Applications

Features

  • Large range of anchor rod sizes (M8-M16)

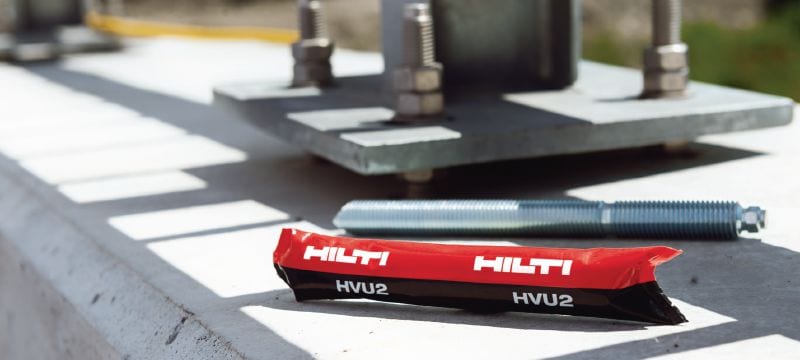

  • Designed for use with Hilti HVU capsules in uncracked concrete

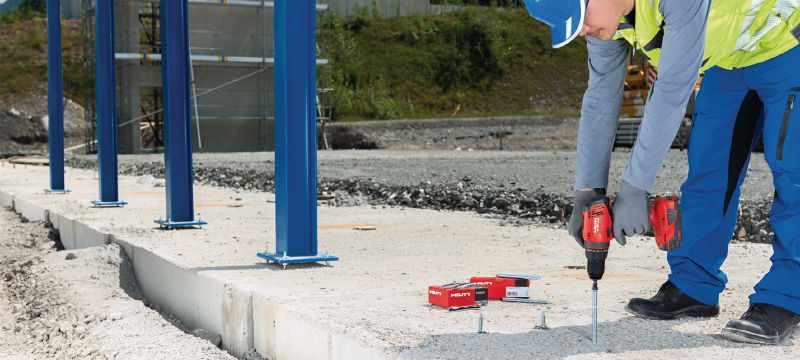

  • Supplied with setting tool for use with SF power tools and can be used with the separate setting tool adapter for TE power tools

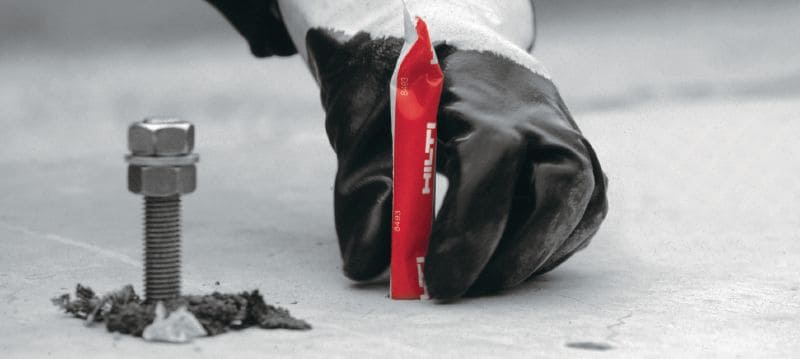

  • Features a chisel tip to cut and mix the HVU capsule, embedment marking for easy setting and hexagonal head for use with the in-box setting tool
  • Short spacing and edge distances

Applications

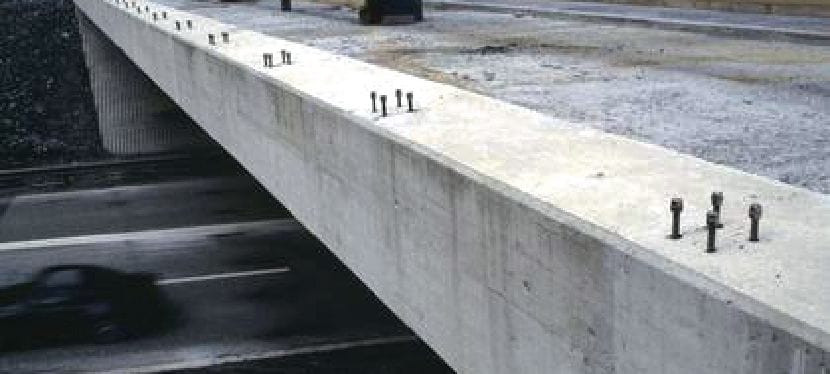

  • Suitable for use with Hilti HVU2 capsules for fastenings in concrete
