BUILDING INFORMATION MODELING (BIM)
Accessing the Hilti BIM/CAD Library
BIM – building information modelling – is revolutionizing the way projects are designed and managed.
It’s not just 3D design software, it’s a process that makes collaboration easier for extended project teams.
Enable end-to-end workflow solutions for your building projects with integrated BIM digital tools and engineering services.
BIM IS CHANGING THE CONSTRUCTION INDUSTRY
With BIM, you can:
Reduce errors and costs

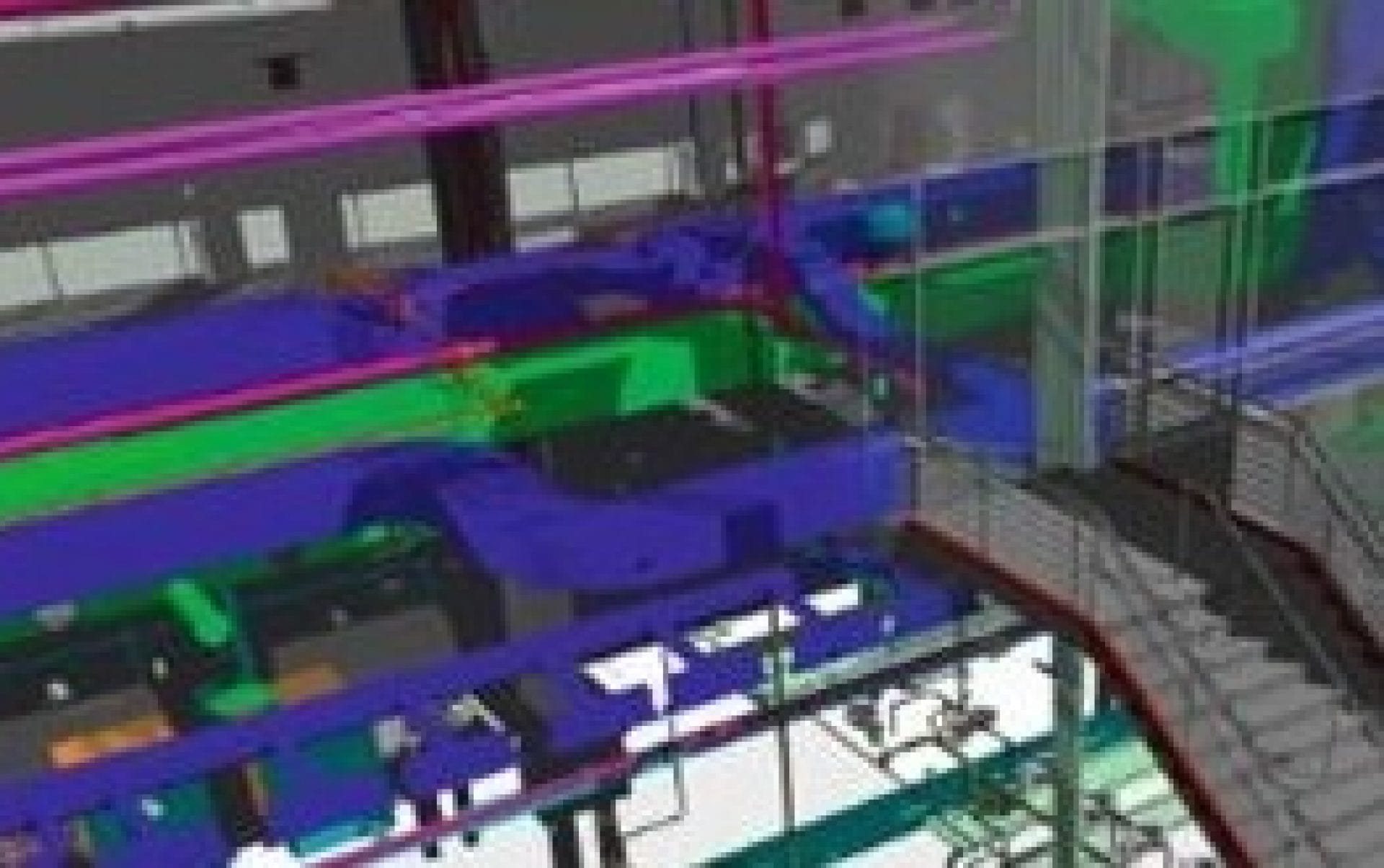

Spot potential clashes in 2D and 3D ensuring project accuracy.
Speed Collaboration in the Cloud
Increase teamwork and prevent errors by sharing your designs in real time. Save time in meetings or email exchanges, and help your different trade engineers check for clashes before you get to the jobsite.
Plug into a wider design ecosystem
Use the Hilti BIM/CAD libraries to easily insert 3D objects directly into AutoCAD®, Revit® and Tekla Structure – bringing your detailed Hilti application designs into the whole of your building design.
THE HILTI BIM/CAD LIBRARY
Integrating directly into AutoCAD®, Revit® and Tekla Structure
Hilti’s BIM/CAD library enables you to have an extensive library of Hilti products as 3D and 2D BIM/CAD objects – all able to integrate directly into leading construction design software, such as AutoCAD®, Revit® and Tekla Structure.
More than just a library of libraries, it allows you to choose which country you want to design and work in, ensuring global code compliance.
Explore Hilti’s BIM/CAD Library to:
Search for an object by name or by the type of object – such as anchors, direct fastenings, firestop systems, modular support systems.
Choose whether you want a 2D or 3D model – all objects include detailed technical data, such as size, material, Hilti product numbers, material information.
Insert the object directly into your design
Export the product model and save it for later use.
