Fastening on Steel with X-BT and S-BT

Fast, simple and reliable electrical connections

Steal back time when fastening on steel

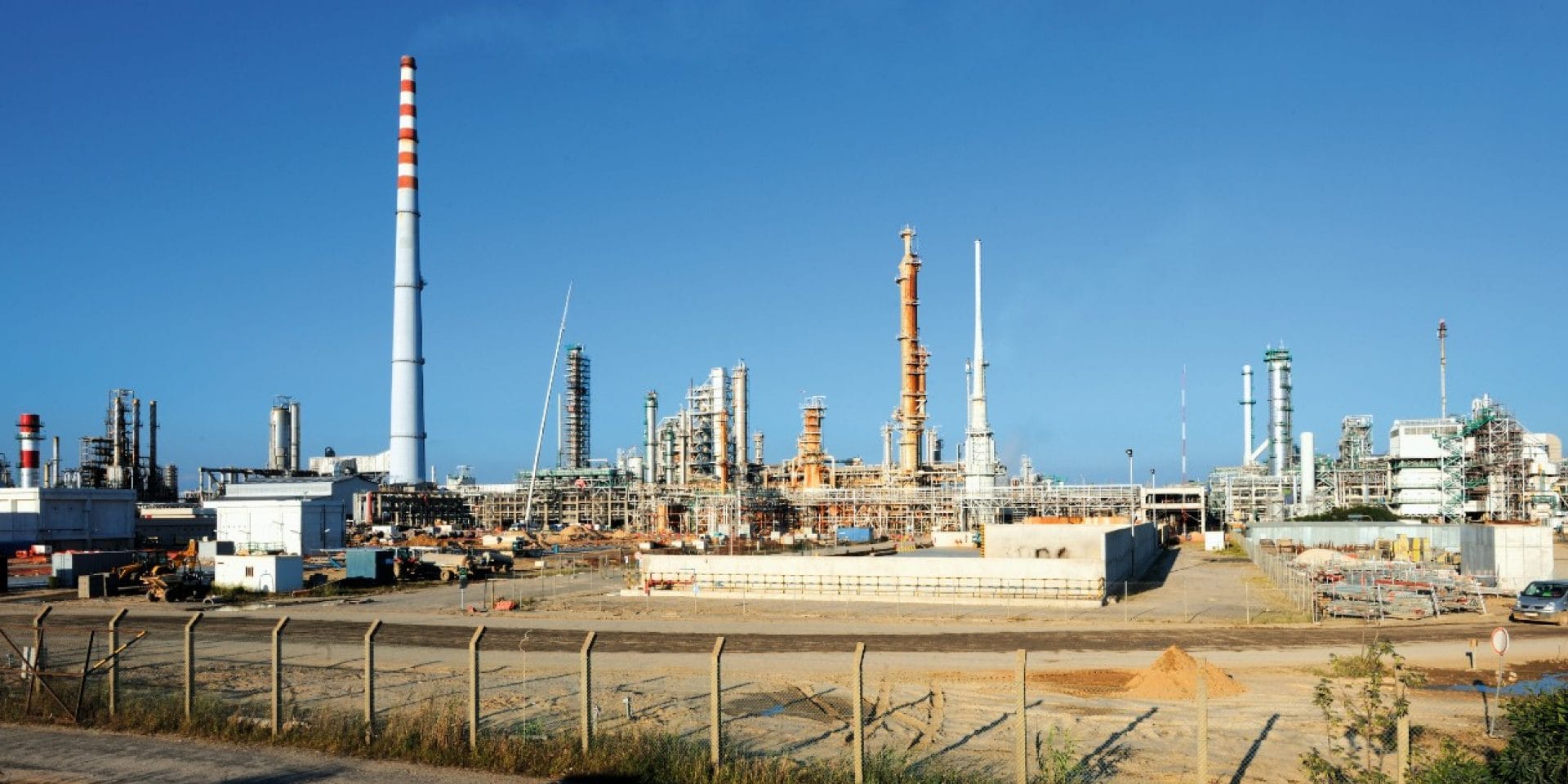

Electrical connections are often needed on steel structures to provide a physical connection to earth for elements such as instrumentation panels, pipe flanges and other electrical equipment. By earthing (or grounding) the elements, you protect the equipment as well as reducing the risk of electrical shocks for people around them. This is particularly important in energy and industry settings, with outdoor environments such as power plants, oil refineries and offshore platforms.

Primarily these connections provide three important functions:

  • Bonding
    Simple act of joining two elements together – such as pipe flanges, cable trays or steel structures – so that at least one of them is then earthed so the electrical current can be discharged
  • Earthing (or grounding)
    Connecting a part which does not normally carry current – such as equipment, junction boxes or storage vessels – to the earth
  • Lightning
    Can be either direct (a lightning strike) or indirect (through power and communications lines or through the earth via the earthing system) and protection is based on catching the current and discharging it to earth (lightening conductors, catcher rods etc.)

Alternative methods for fastening on steel

Alternative methods can be time-consuming, labour intensive and require extensive rework to coated steel. For example:

Welding

  • Time consuming preparation of the coated steel e.g. with an angle grinder
  • Creates a lot of sparks, which can be a hazard
  • An experienced and certified welder is required
  • May require a hot work permit and, on some sites, a dedicated fire watch
  • Multi-layer painting common in the Oil and Gas industry can take 3 to 6 days, including drying time, meaning expensive and time-consuming rework

Through-bolting

  • Drilling process can be time-consuming depending on the thickness and hardness of the steel
  • Steel exposed from the drilling must be properly coated to avoid corrosion
  • Access to both sides is needed
  • Installer needs to work with small parts such as nuts, washers and bolts that may get dropped or lost

Clamping

  • Limited in direction of attachment of the component since clamps require a specific orientation relative to the structural steel
  • Access to both sides of structural steel is needed
  • Very high material costs, especially for corrosion-resistant clamps in hot-dip galvanized or stainless steel

Two fast and reliable ways for fastening electrical connections on steel

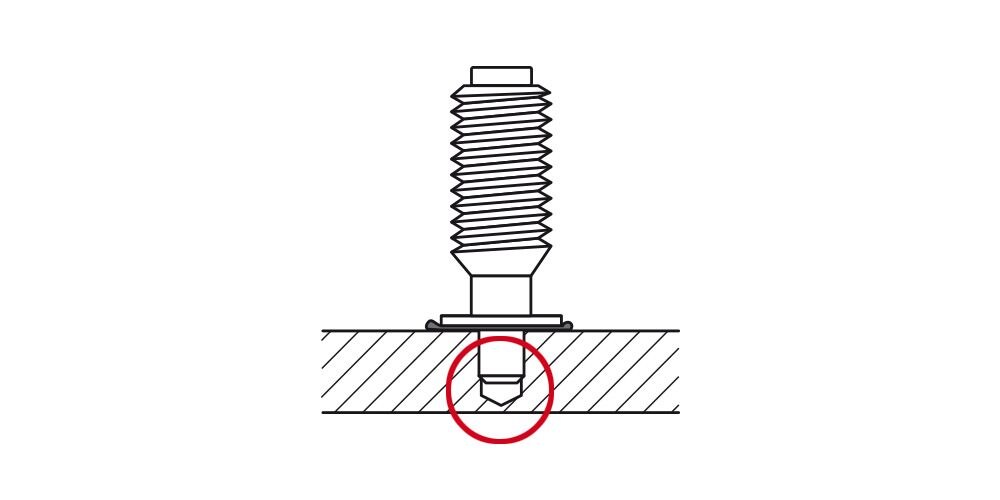

Diagram of a cross-section of steel showing blunt tip fastening

X-BT blunt tip fastening

A revolutionary fastening technology where a blunt-tip stainless steel fastener with a smooth cylindrical or conical shank is driven by a powder-actuated tool into a pre-drilled hole in the base material, creating a high-quality connection.

  • No damage to the corrosion protection coating in non-through penetration applications
  • Fastenings in less than 2 minutes

Duplex stainless steel fasteners for highly-corrosive environments.

Watch the blunt tip video

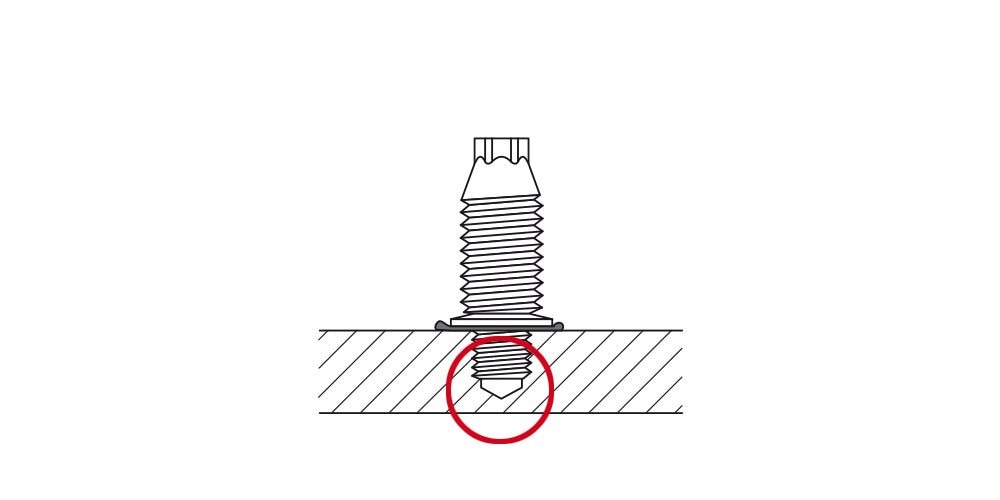

Diagram of a cross-section of steel showing blunt tip screw fastening

S-BT blunt tip screw fastening

A revolutionary fastening technology where a blunt-tip stainless steel fastener with a screw type shank is driven by a torque controlled screw driver into the pre-drilled hole in the base material creating a tapped connection.

  • No damage to the corrosion protection coating in non-through penetration applications
  • Fastenings in less than 2 minutes

Duplex stainless steel fasteners for highly-corrosive environments. Duplex coated carbon steel fasteners for mildly-corrosive environments.

Watch the blunt tip screw video

Hilti fastening methods

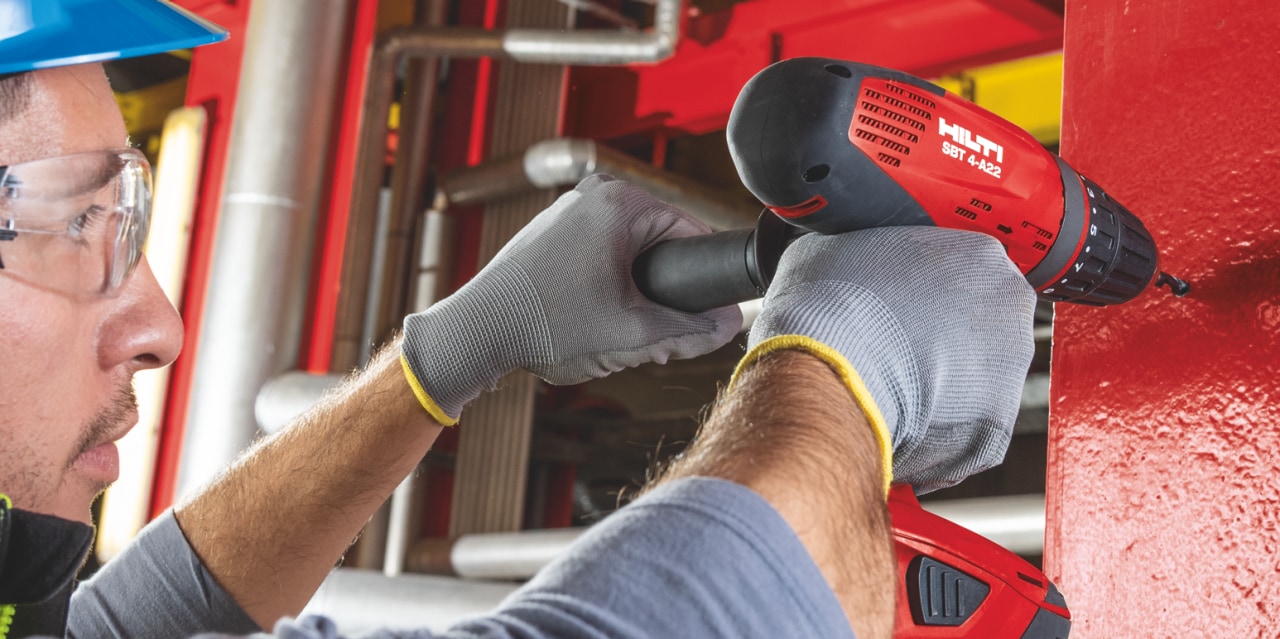

Pilot hole being drilled for an electrical connection

Fast

One of the fastest electrical connections on the market

  • A connection can be made in less than 2 mins
  • Recoating not required – no time-consuming rework!
  • Significant total cost of install savings

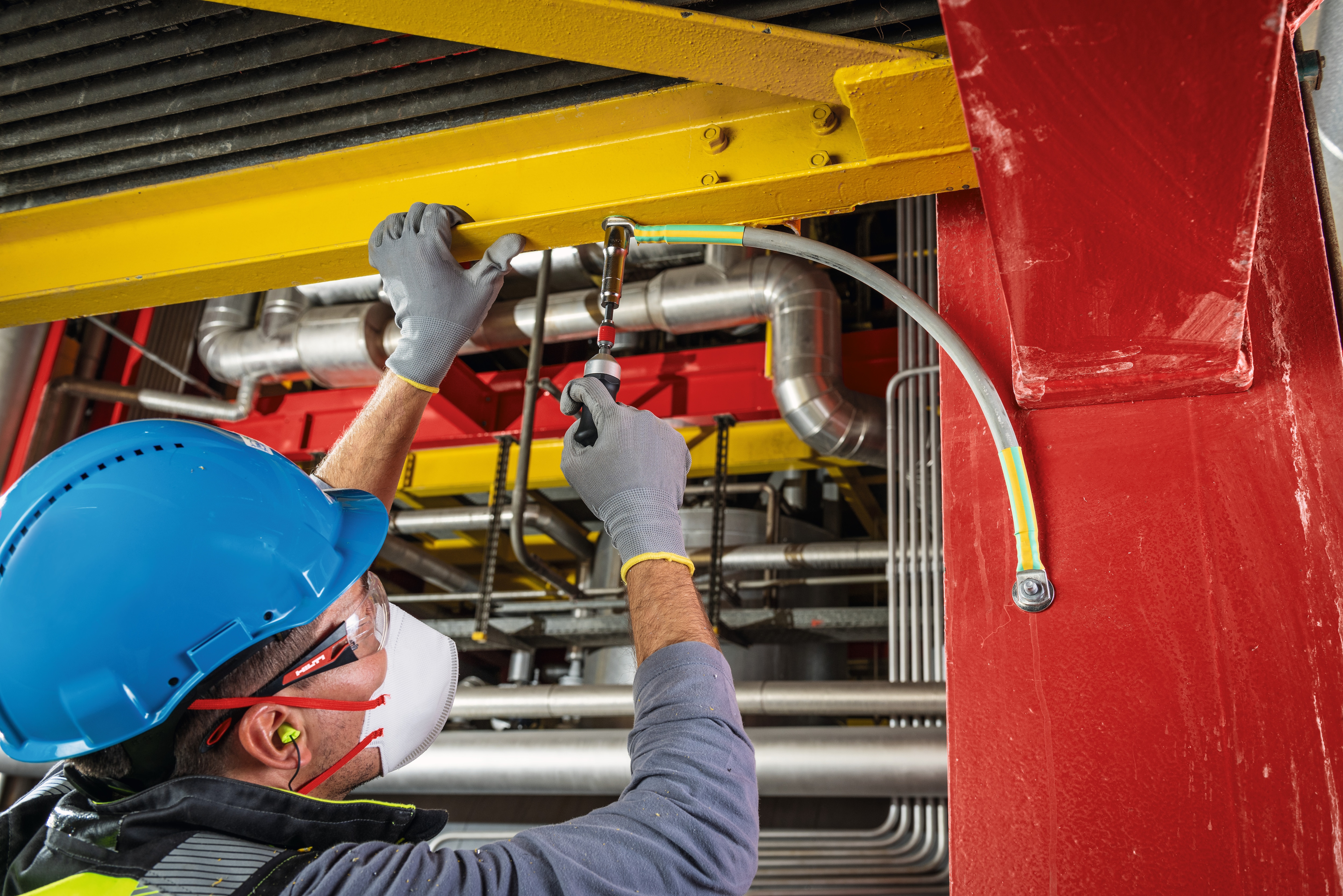

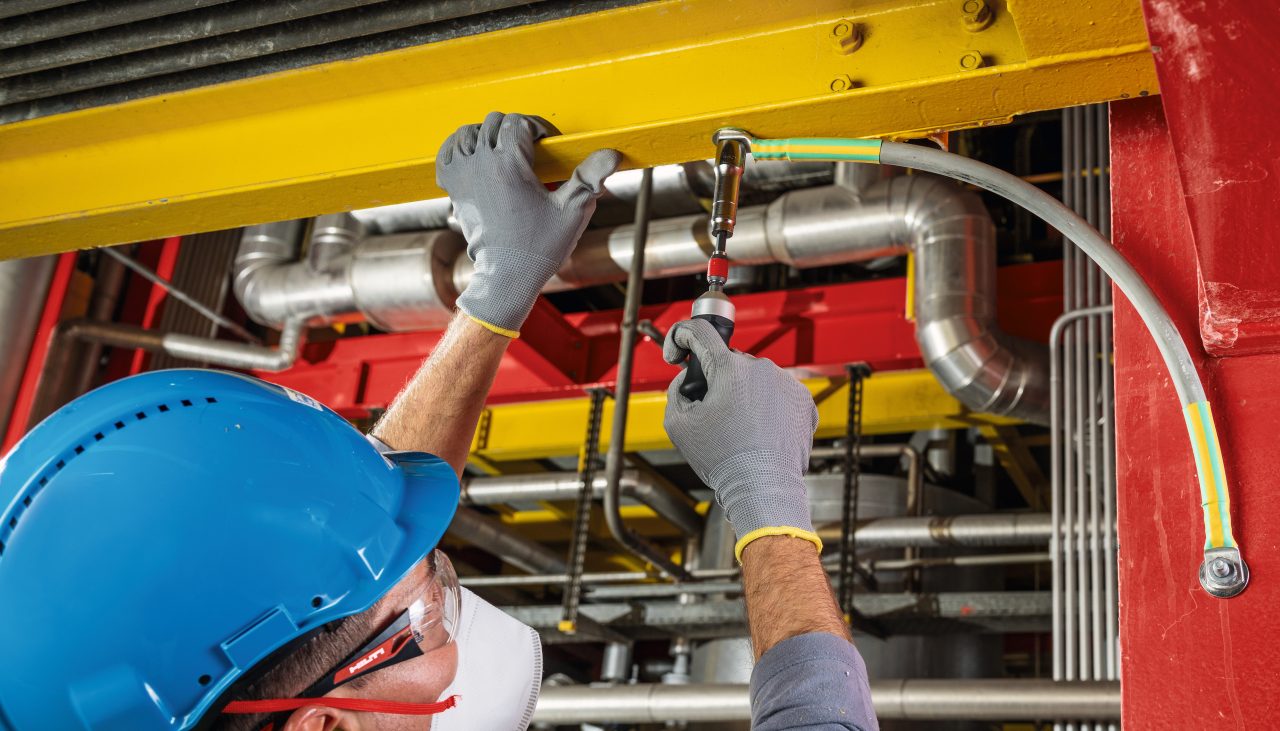

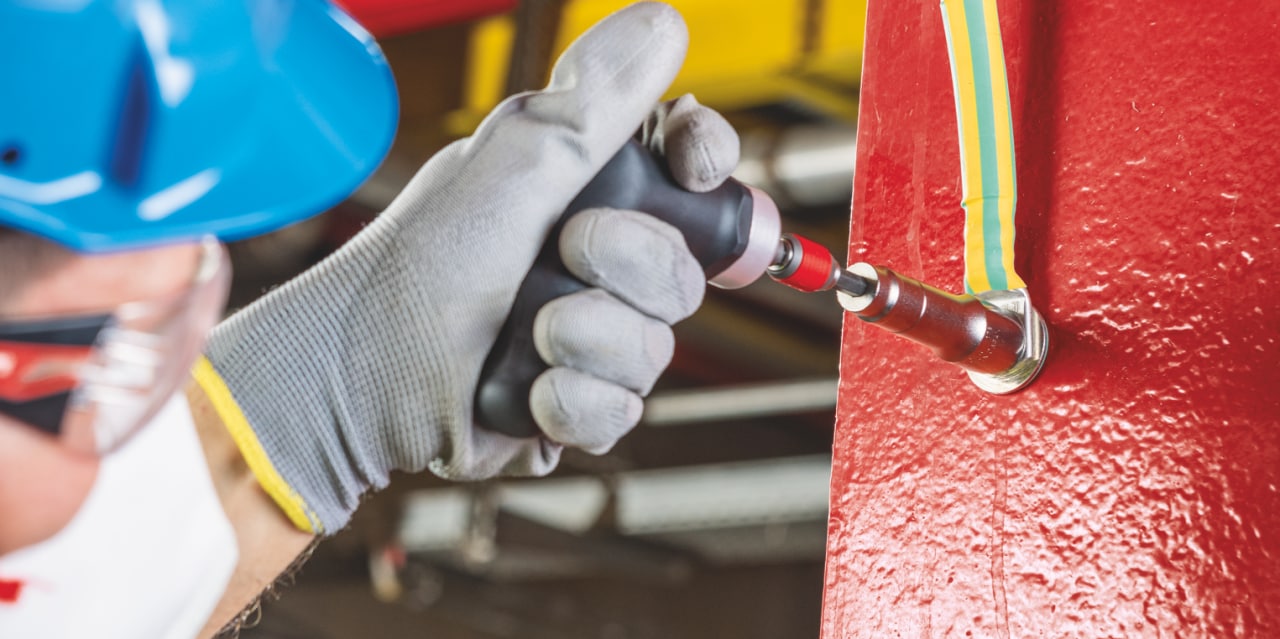

Stainless steel stud being torqued for an electrical connection

Reliable

"Set it and forget it"

  • Stainless steel stud suitable for highly-corrosive environments
  • Vibration-resistant system prevents the connection from coming loose
  • Wide range of approvals

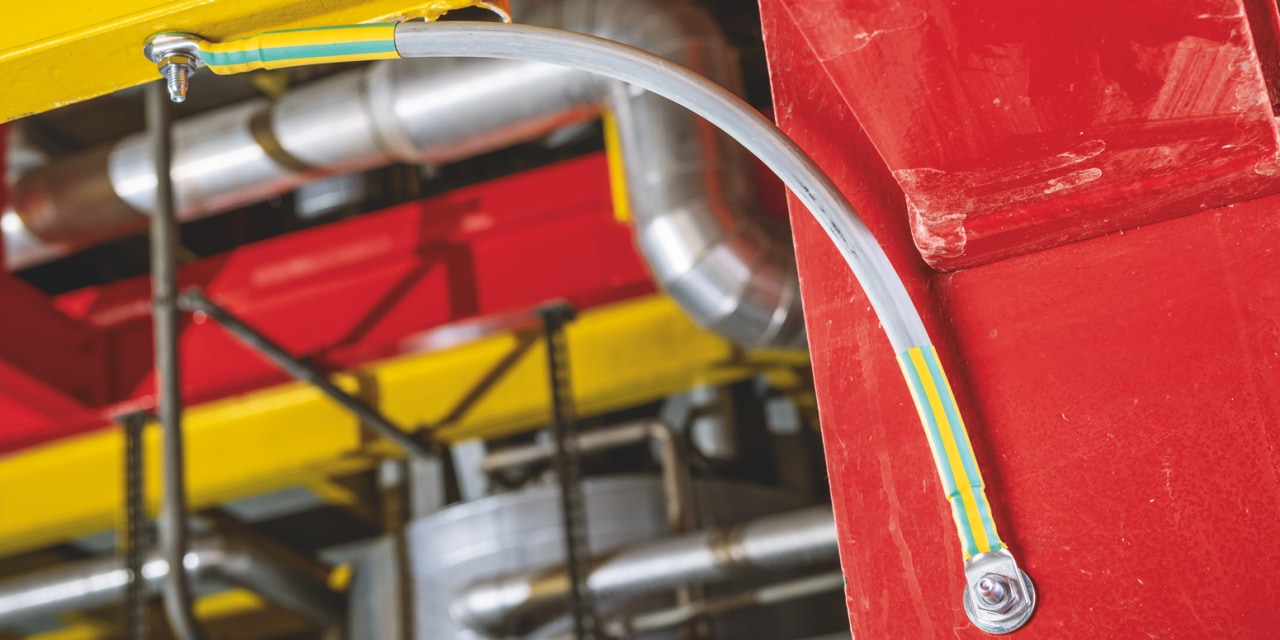

Two elements bonded together and earthed so the electrical current can be discharged

Simple

Fastenings in just a few easy steps

  • Simply drill, fasten and connect
  • No external power source required
  • Weather independent

Electrical connections portfolio

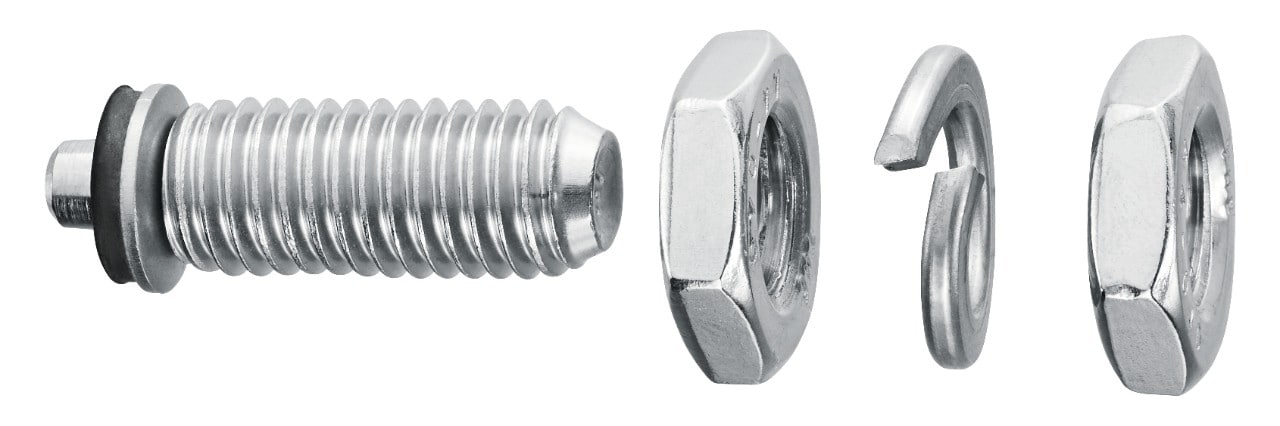

X-BT-ER threaded stud

X-BT-ER threaded stud

Stainless steel for low current electrical connections on steel in highly corrosive environments

Maximum cable cross-section
Up to 10 mm² or 8 AWG

Current resistance (grounding)
Up to 1.25 kA for 1 sec (IEC)

Current resistance (lightning)
Class N 50 kA

Base material
Steel, stainless steel, cast iron

Minimum thickness
8 mm

Tool required
SF BT A22 and DX 351-BT(G)

Available thread diameter
M6, M8, M10

Fastener material
Stainless steel A4 equivalent

Product group
Low current

Click to buy (M8 / M10) Click to buy (M6)

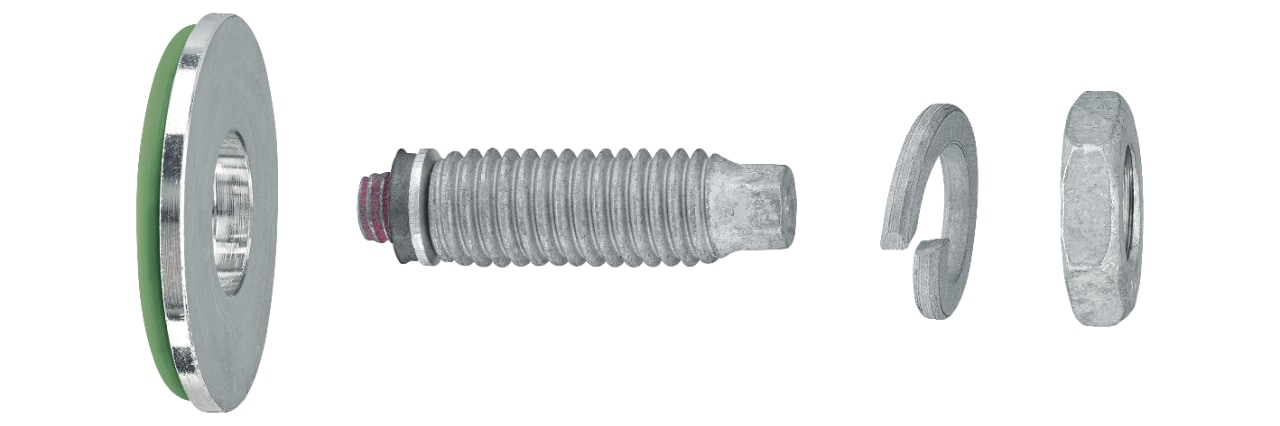

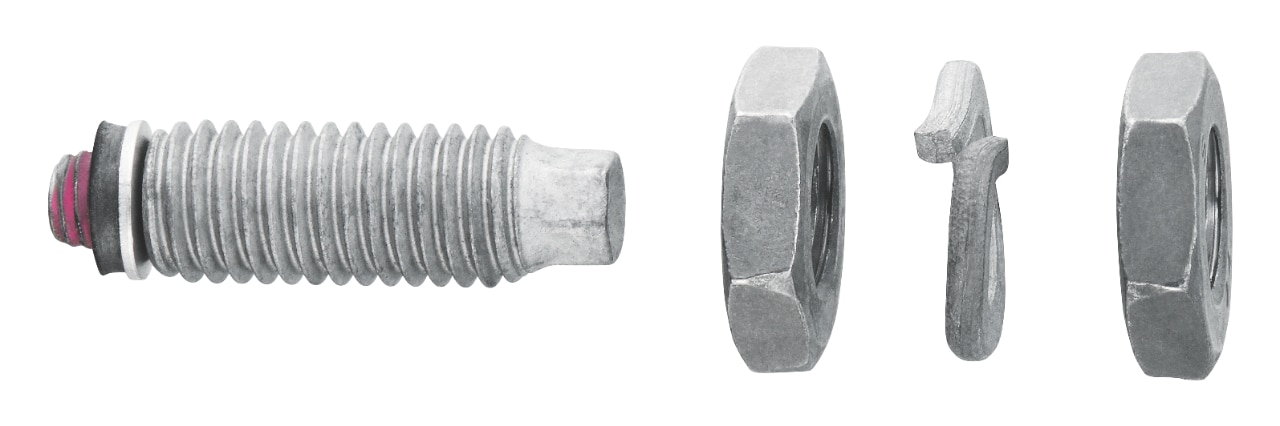

S-BT-EF threaded screw-in stud

S-BT-EF threaded screw-in stud

Carbon steel (duplex coated) for low current electrical connections on steel, in mildly corrosive environments

Maximum cable cross-section
Up to 10 mm² or 8 AWG

Current resistance (grounding)
Up to 1.25 kA for 1 sec (IEC)

Current resistance (lightning)
Class N 50 kA

Base material
Steel

Minimum thickness
6 mm

Tool required
SBT 4-A22

Available thread diameter
M8, M10

Fastener material
Duplex coated carbon steel

Product group
Low current

Click to buy (M8 / M10)

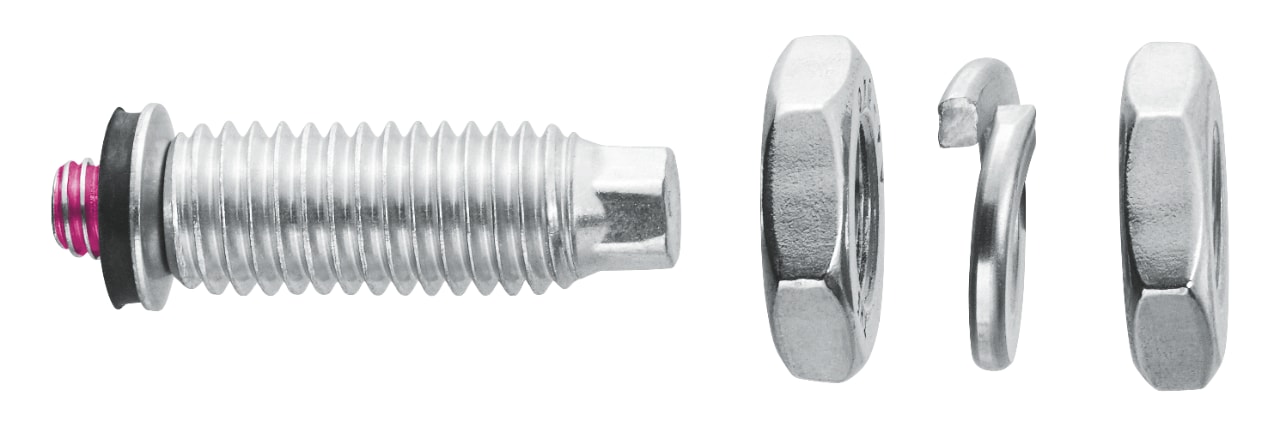

S-BT-ER threaded screw-in stud

S-BT-ER threaded screw-in stud

Stainless steel for low current electrical connections on steel, in highly corrosive environments

Maximum cable cross-section
Up to 10 mm² or 8 AWG

Current resistance (grounding)
Up to 1.25 kA for 1 sec (IEC)

Current resistance (lightning)
Class N 50 kA

Base material
Steel

Minimum thickness
6 mm

Tool required
SBT 4-A22

Available thread diameter
M8, M10

Fastener material
Stainless steel A4 equivalent

Product group
Low current

Click to buy (M8 / M10)
S-BT-EF HC threaded screw-in stud

S-BT-EF HC threaded screw-in stud

Carbon steel (duplex coated) for high current electrical connections on steel, in mildly corrosive environments

Maximum cable cross-section
Up to 120 mm² or 4/0 AWG

Current resistance (grounding)
Up to 14.4 kA for 1 sec (IEC)

Current resistance (lightning)
Class H 100 kA

Base material
Steel

Minimum thickness
6 mm

Tool required
SBT 4-A22

Available thread diameter
M8, M10

Fastener material
Duplex coated carbon steel

Product group
High current

Click to buy (M10)

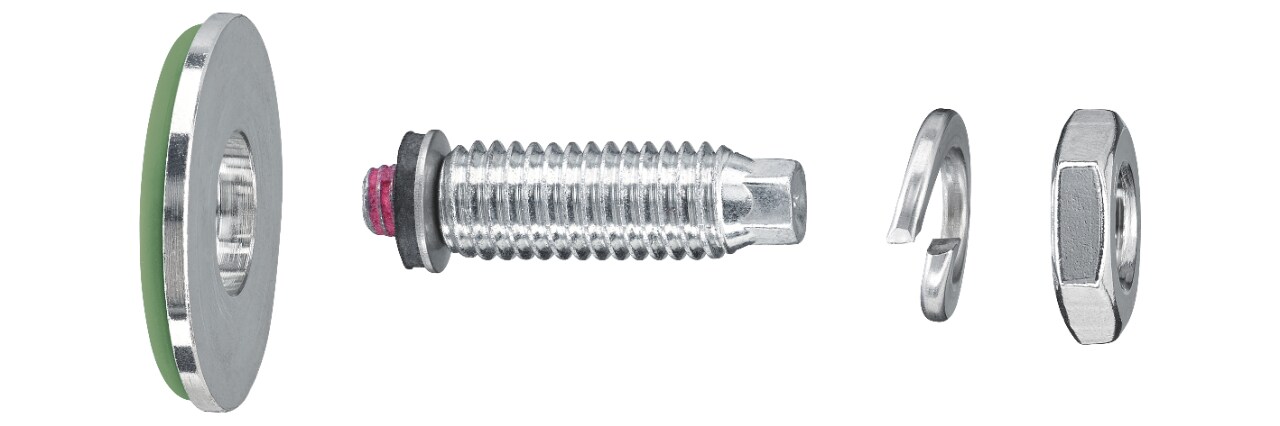

S-BT-ER HC threaded screw-in stud

S-BT-ER HC threaded screw-in stud

Stainless steel for high current electrical connections on steel, in highly corrosive environments

Maximum cable cross-section
Up to 120 mm² or 4/0 AWG

Current resistance (grounding)
Up to 14.4 kA for 1 sec (IEC)

Current resistance (lightning)
Class H 100 kA

Base material
Steel

Minimum thickness
6 mm

Tool required
SBT 4-A22

Available thread diameter
M8, M10

Fastener material
Stainless steel A4 equivalent

Product group
High current

Click to buy (M10)

Other applications

Fastening on steel in corrosive environments

Fastening on steel in corrosive environments

Hilti provides a range of faster, more reliable and efficient solutions for fastening to steel in virtually any corrosive environment, commonly encountered in the energy and industry sector.

More info on fastening on steel
Corrosion in construction has a big impact on costs and safety - particularly in outdoor, coastal areas with heavy pollution.

Corrosion in construction

Why it is important to consider corrosion on your jobsite.

More info on corrosion in construction

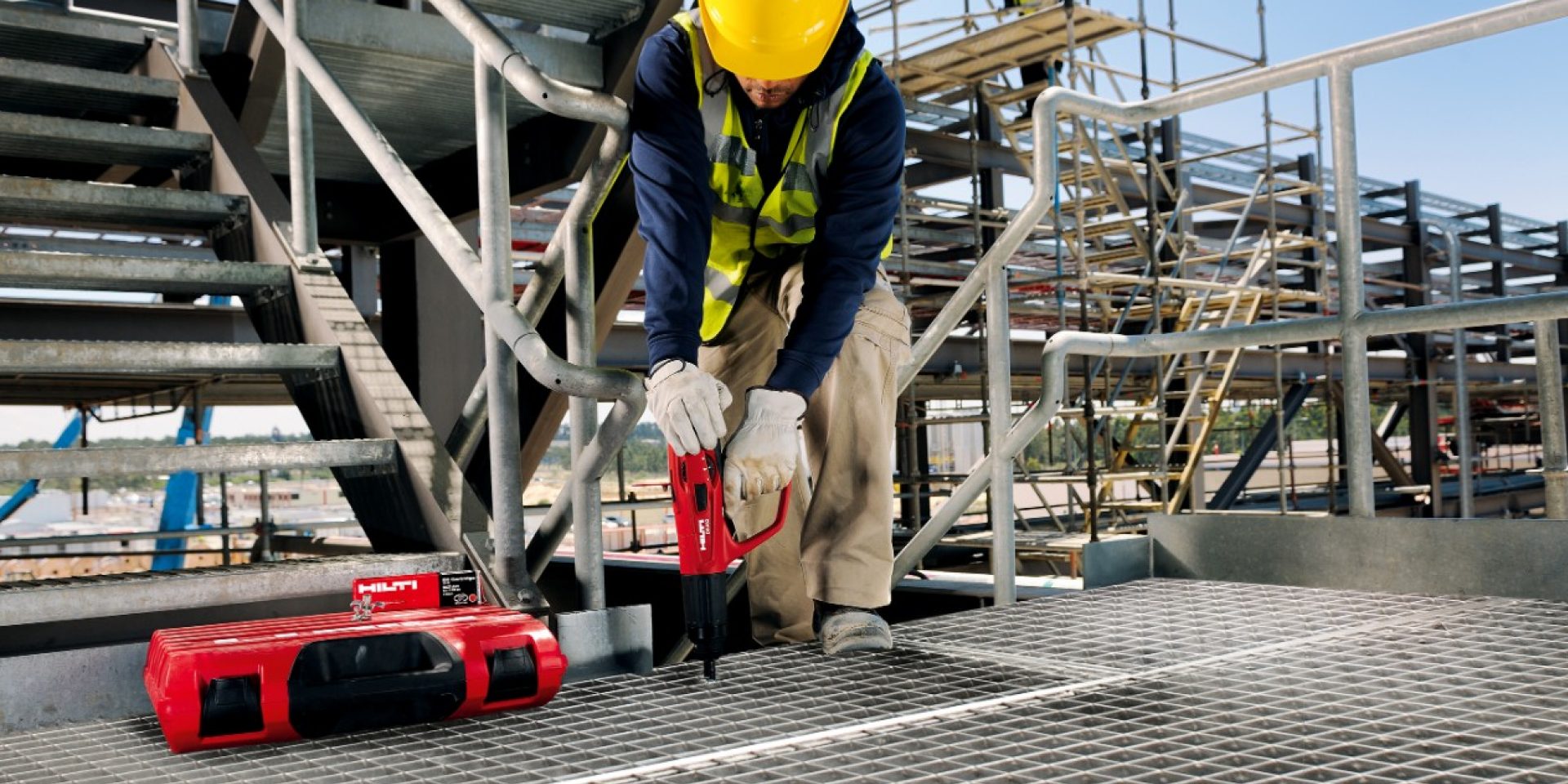

Fixing gratings and checker plates with Hilti direct fastening tools

Fixing gratings and checker plate

A wide range of corrosion and vibration resistant fastening solutions – without the need for clamping, welding and through bolting.

More info on fixing gratings

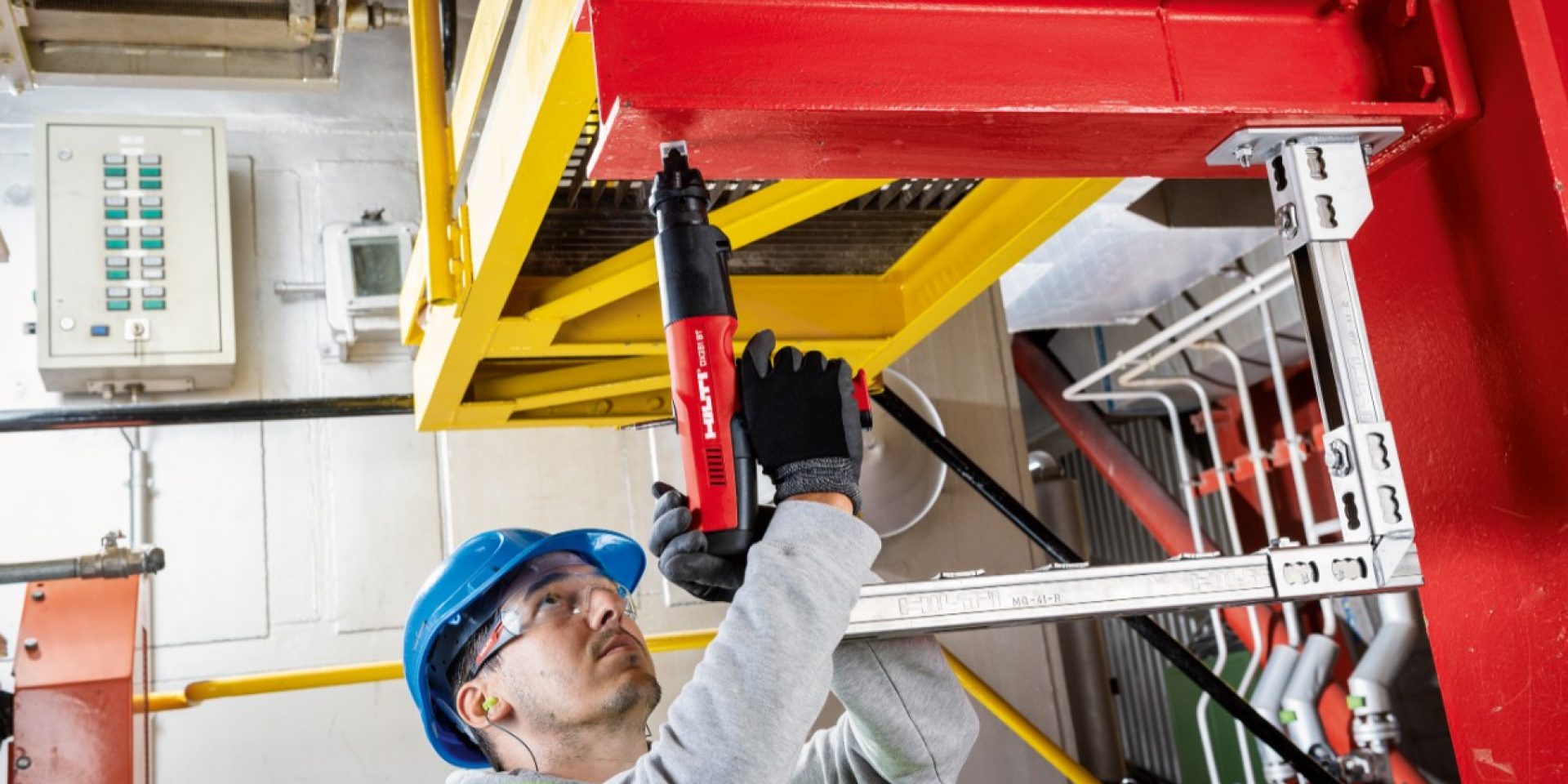

Fixing electrical elements to steel with Hilti direct fastening tools
