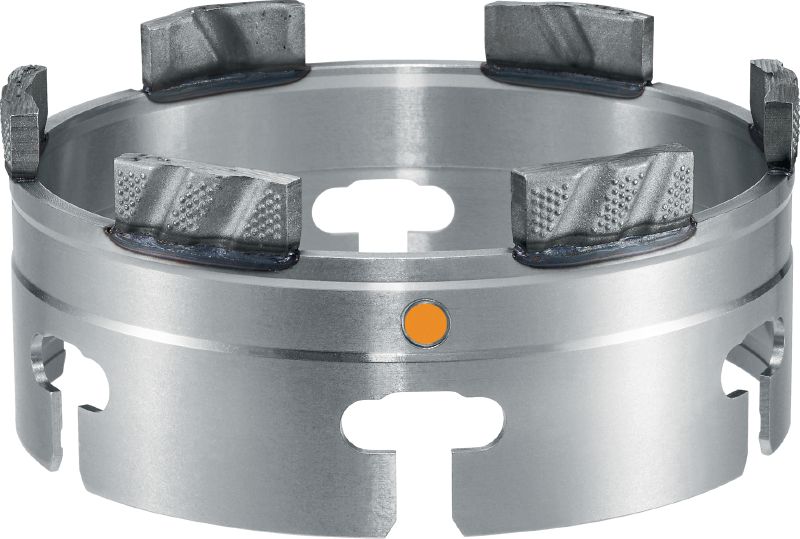

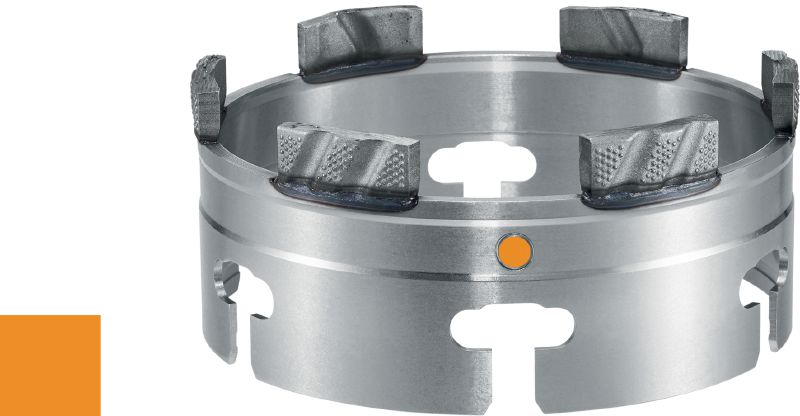

Ultimate X-Change module for coring in all types of masonry

  • Base materials: Masonry
  • Drilling mode: Hand-held, Rig-mounted
  • Wet or dry operation: Dry
ultimate

Choose options

Diameter
  • 52 mm
  • 62 mm
  • 67 mm
  • 77 mm
  • 82 mm
  • 87 mm
  • 92 mm
  • 102 mm
  • 112 mm
  • 122 mm
  • 132 mm
  • 152 mm
  • 162 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 1,525.90

Technical Data

Base materials
Masonry
Drilling mode
Hand-held, Rig-mounted
Wet or dry operation
Dry
Laser-welded segments
Yes
Product class
Ultimate

Documents

Features & Applications

Features

  • Hilti Equidist technology (above 35 mm diameter) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
  • Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
  • Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content
  • Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
  • The X-Change barrel can be used for the life of multiple modules

Applications

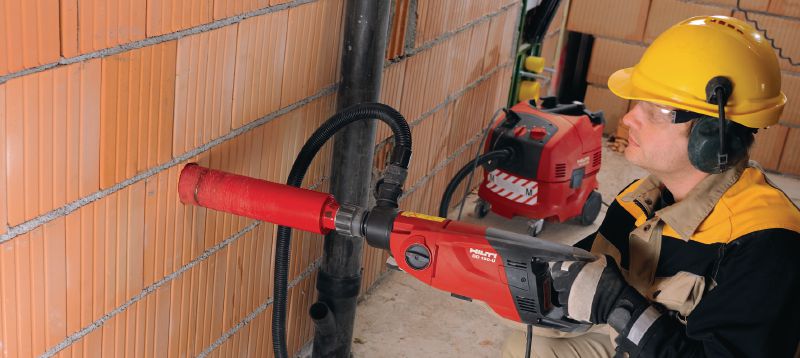

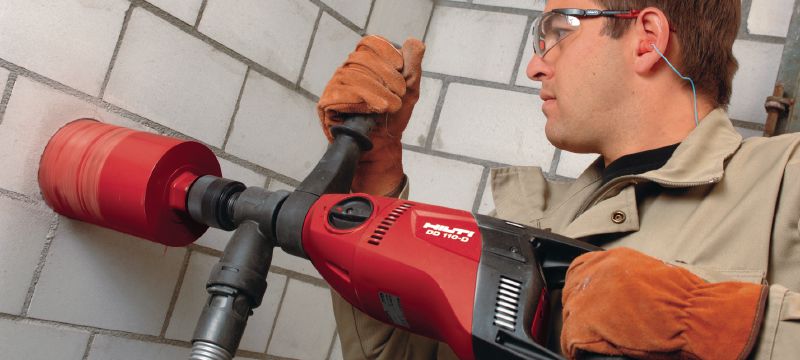

  • Hand-held dry coring in all types of masonry

For approval or certificate information, please see individual items.
