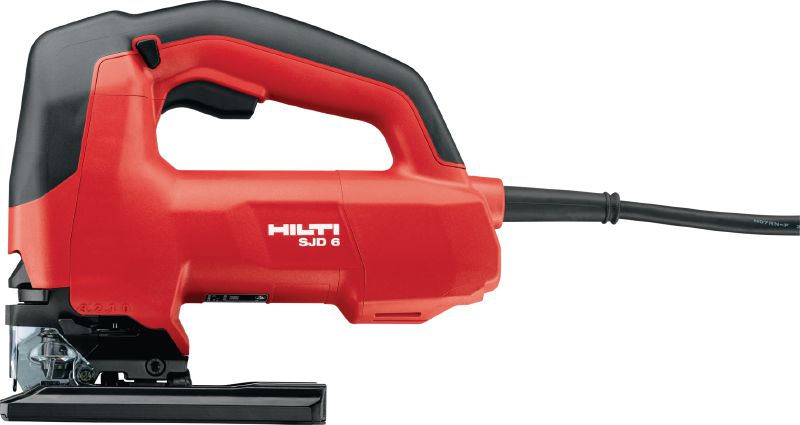

SJD 6 D-handle orbital jig saw

850W orbital jig saw with top handle, built to make tough, curved cuts faster and more comfortable

  • Rated input power: 850 W
  • Handle: Hoop grip
  • Weight according to EPTA Procedure 01/2003: 2.4 kg

Technical Data

Rated input power
850 W
Handle
Hoop grip
Weight according to EPTA Procedure 01/2003
2.4 kg
Base material
Aluminium, Chipboard, Construction timber, Drywall, Drywall studs, Gypsum board, Hardwood (beech, oak etc.), Non-ferrous metal, Plastic, Plywood, Wood, Wood composites, Tiles
Stroke length
28 mm
Stroke rate
3000 strokes/minute
Max. bevel angle
45 °
Max. cutting depth in mild steel
10 mm
Max. cutting depth for wood
150 mm
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for cutting board (ah,B)
9.7 m/s² 2
Uncertainty (K) for triaxial vibration value for cutting board (ah,B)
1.5 m/s² 3
Triaxial vibration value for cutting sheet metal (ah,M)
8.0 m/s² 4
Uncertainty (K) for triaxial vibration value for sawing in metal (ah)
1.5 m/s² 5
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)
  5. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Upgraded ergonomics with large baseplate – this lighter and more compact D-handle jig saw improves your manoeuvrability, stability and cut precision
  • 850W motor – delivers the cutting power you need to slice through tougher boards and metal
  • Keyless blade change – minimise your downtime while replacing jig saw blades
  • Virtually dust-free sawing – this jig saw has a dust blower and extraction adapter, keeping your cutting line clear
  • Speed dial and adjustable pendulum stroke – the operator has precise control over how fast the orbital jig saw cuts and how clean the final result needs to be

Applications

  • Trimming or cutting wood and plasterboard to size with minimal airborne sawdust when using DRS

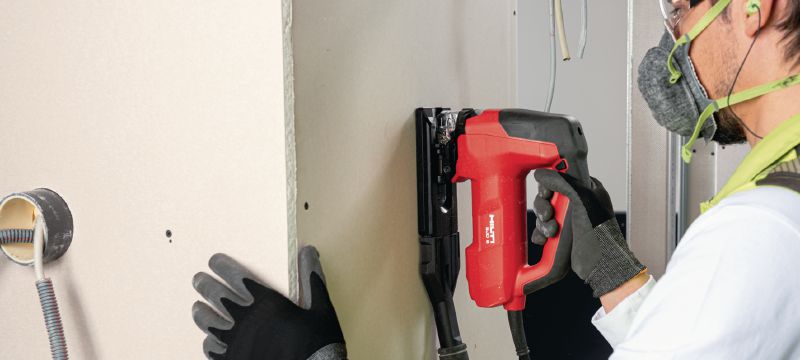

  • Interior finishing – especially sawing plasterboard or wood-based internal cladding (horizontal or vertical cuts)
  • Cutting wood board up to 150 mm thick
  • Cutting metal sheet up to 10 mm thick
  • Cutting tiles and plastic pipes

For approval or certificate information, please see individual items.
