Nuron

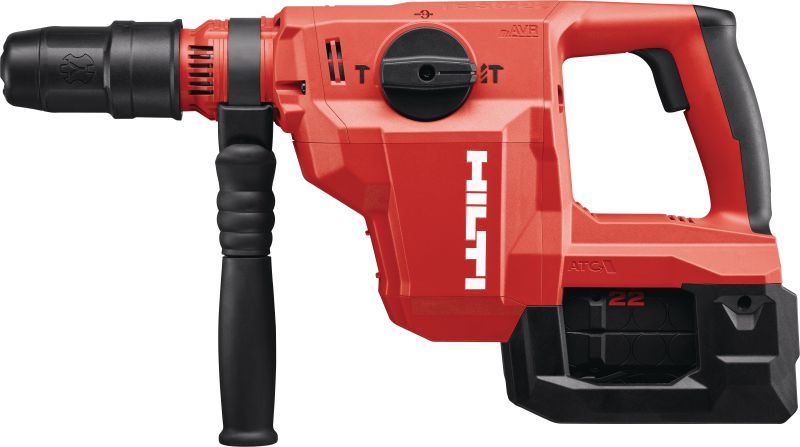

TE 50-22 cordless rotary hammer

Compact and cordless SDS Max (TE-Y) rotary hammer drill with lighter weight, more power and less vibration for drilling and chiseling in concrete (Nuron battery)

Weight according to EPTA Procedure 01/2003: 5.5 kg
Optimum hammer drilling range: 16 - 35 mm
Hammer drilling diameter range: 12 - 82 mm

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 6,169.92

Technical Data

Weight according to EPTA Procedure 01/2003

5.5 kg

Optimum hammer drilling range

16 - 35 mm

Hammer drilling diameter range

12 - 82 mm

Single impact energy

6 J

Hammer drilling RPM

360 rpm

Full hammering frequency

3510 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Hammer drilling

Triaxial vibration value for hammer drilling into concrete (ah,HD)

8.6 m/s² ¹

Triaxial vibration for chiselling in concrete

6.8 m/s² ²

A-weighted emission sound pressure level

99 dB (A) ³

A-weighted emission sound power level

107 dB (A) ⁴

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

Power and versatility for tough jobs - broad range of inserts combined with brushless motor for higher performance drilling, chiseling and coring
Work more comfortably - ergonomic design and Active Vibration Reduction (AVR) technology helps reduce user fatigue on the jobsite
Safer work environments - Hilti's innovative Active Torque Control (ATC) provides more protection from tool over-rotation when drill bits get stuck
Drop protection - more robust battery plus metal battery garage protect against rotary hammer failures after accidental drops
On the Nuron battery platform - cordless tools without compromise thanks to longer-lasting batteries and a range of services to keep you more productive, today and tomorrow

Applications

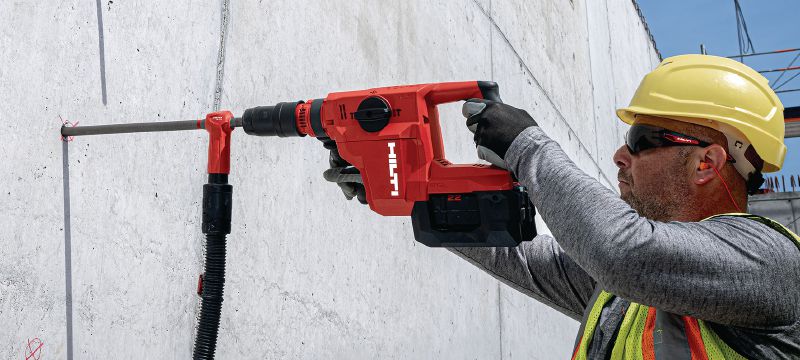

Versatile rotary hammer drill for concrete construction work and building services installation

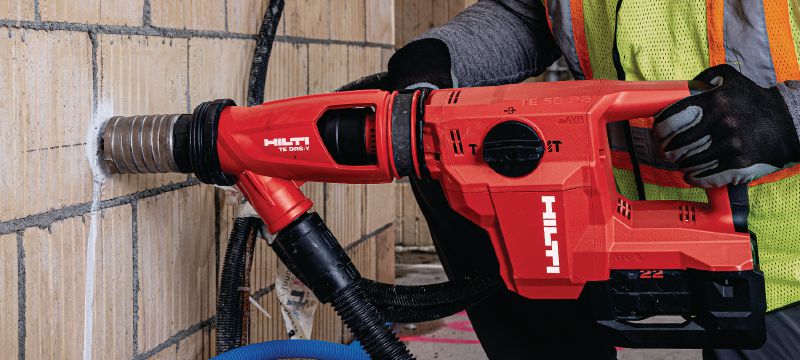

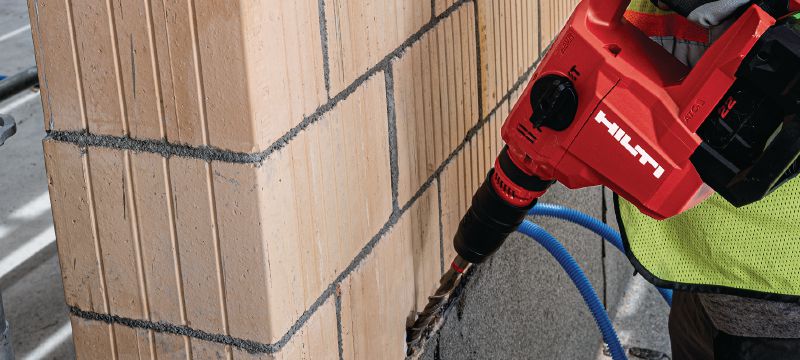

Drilling holes for pipe penetrations or plug sockets through concrete and masonry

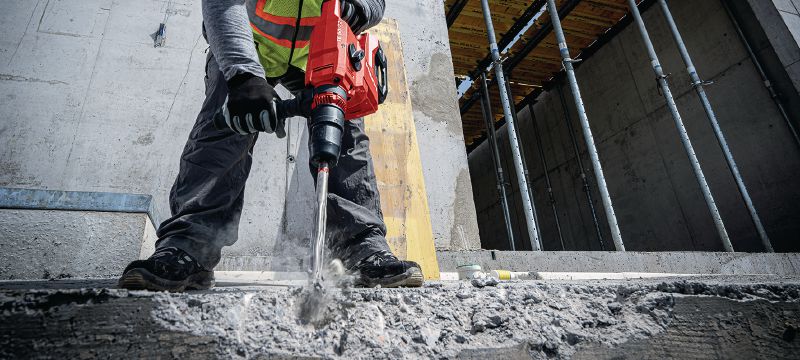

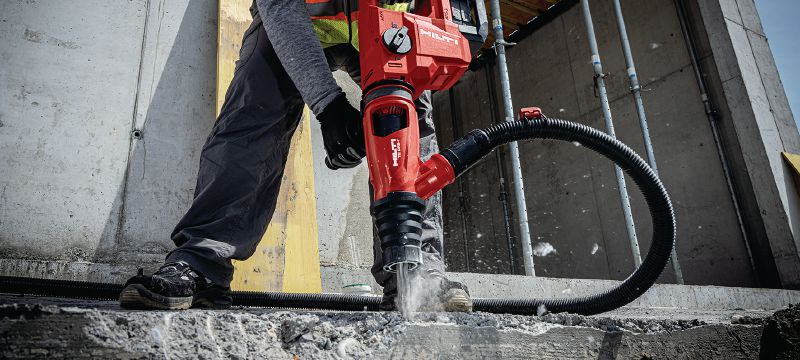

Chiseling in concrete, masonry, tiles and plaster for demolition
Ideal for repetitive drilling in reinforcing bar

For approval or certificate information, please see individual items.
