Nuron

SID 4-22 Cordless impact driver

Cordl. impact driver SID 4-22 box #2324274

Configurator
Technical Data
Documents
Features & Applications
Related Products
L131184 (2842099)
L131308_cropped (2898124)
L131340_cropped (2898117)
L131377_cropped (2898112)

Compact brushless impact driver optimised for more reliable and efficient non-structural fastening in wood and metal (Nuron battery platform)

  • Feature: LED light around the chuck
  • Chuck type: 1/4" hexagonal click-in
  • No load RPM: gear 1: 3000 rpm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 1,324.58
AED 1,324.58 / 1 Piece

Technical Data

Feature
LED light around the chuck
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 3000 rpm
Maximum torque
186 Nm (1) 1
Full hammering frequency
4400 impacts/minute
Number of gears
1
Dimensions (LxWxH)
134 x 68 x 204 mm
Tool body weight
0.852 kg
A-weighted emission sound pressure level
95 dB (A) 2
Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)
10.7 m/s²
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SID 4-22 (02), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Features & Applications

Features

  • Economical alternative to the SID 6-22 – SID 4-22 is Hilti’s recommended cordless impact driver if you don’t need to set hundreds of screws per day
  • Extra-compact size – at just 134 mm from front to back, this is the ideal impact driver when you need to work in tight spaces
  • LED lights around the chuck – four built-in lights for a clearer, glare-free view of your work area
  • Ergonomic grip – textured and contoured for more comfortable control, even when working in awkward positions
  • Built to last – 1/4" hex click-in chuck, re-engineered gearing, motor cooling and sealed electronics make this our most durable impact driver to date

Applications

  • Smaller fastening jobs where time-per-fastening is not your biggest concern – such as formwork, prefab and glazing
  • Self-drilling screws – optimised for drilling through metal, then driving threads to completion

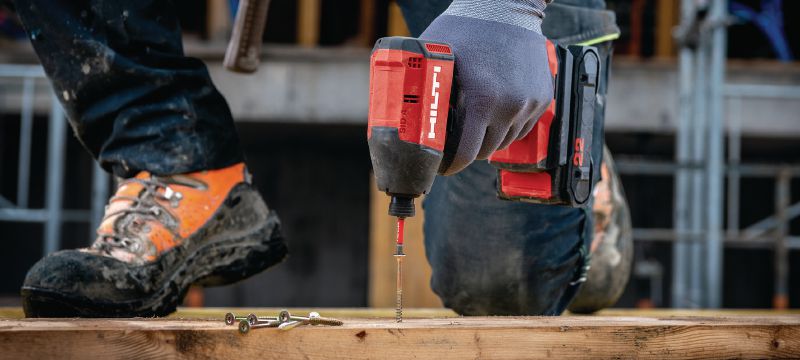

  • Wood screws – agile cordless impact driver for attaching wood to wood
  • Masonry screws – three gears so torque can be reduced for masonry screws such as HRD
  • Drilling in wood with spade bits such as WDB-S (max. diameter 25 mm)
