Nuron

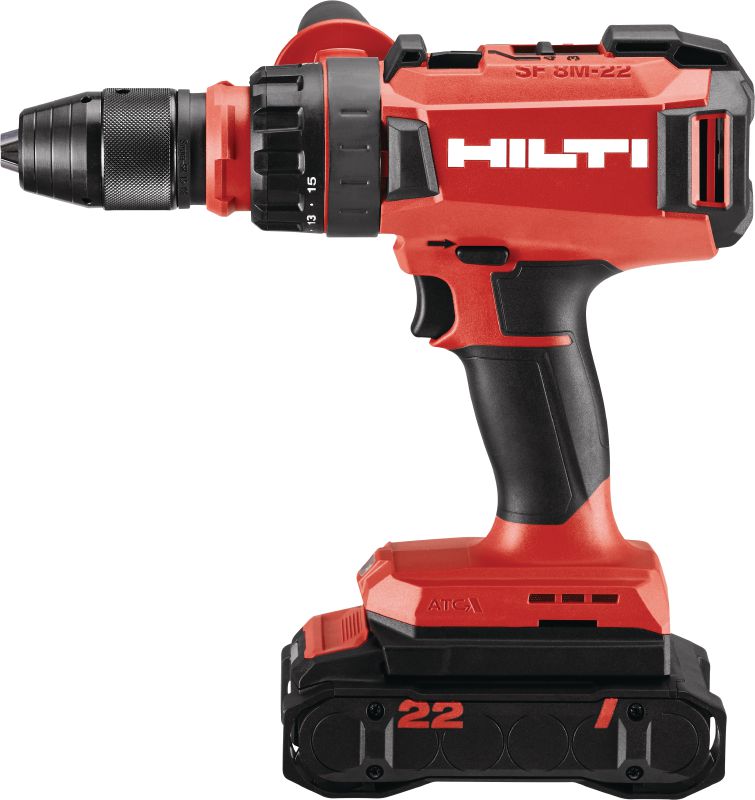

SF 8M-22 cordless drill driver

Cordl. drill driver SF 8M-22 box #2360543

Configurator
Technical Data
Documents
Features & Applications
Related Products
L600037 (3052337)
L148509_cropped (3101382)
L148513_cropped (3101384)
L148520_cropped (3101390)
L148542_cropped (3101394)

Cordless drill driver with interchangeable chucks, more torque, higher RPM and adjustable speed

  • Maximum torque (soft/hard joint): 55 Nm (soft joint), 75 Nm (hard joint)
  • No load RPM: gear 1: 365 rpm; gear 2: 625 rpm; gear 3: 1440 rpm; gear 4: 2460 rpm
  • Chuck clamping range: 2 - 13 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 2,809.93
AED 2,809.93
/
1 Piece

Technical Data

Maximum torque (soft/hard joint)
55 Nm (soft joint), 75 Nm (hard joint)
No load RPM
gear 1: 365 rpm; gear 2: 625 rpm; gear 3: 1440 rpm; gear 4: 2460 rpm
Chuck clamping range
2 - 13 mm
Number of gears
4
Torque increments
15
Dimensions (LxWxH)
242 x 69 x 226 mm
Tool body weight
1.9 kg
A-weighted emission sound pressure level
78 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
1.6 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 8M-22 02, Arabic, Czech, Danish, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Turkish, Ukrainian, Chinese, Serbian, Bulgarian, cn, German, Greek, Spanish, Hebrew, Croatian, Hungarian, Italian, Dutch, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish [ 5.6 MB ]

Features & Applications

Features

  • More flexibility and productivity with interchangeable chucks - innovative chuck design allows for different chucks to be swapped out in seconds (thread tapping M3-M16, self-tightening chuck, universal chucks)
  • Better performance in metal - higher RPM of 2460 combined with soft joint torque (60Nm) and four speeds enable the cordless drill driver to handle demanding metal drilling and screwdriving with ease
  • More peace of mind - specialized chuck with self-tightening function designed for metal drilling protects against drill bit slippage
  • Safer work environments - Hilti's Active Torque Control (ATC) helps prevent the tool body from uncontrolled spinning if the drill bit sticks and an LED work light in the base provides a clear view of your work area
  • Increased dependability - a powerful battery and brushless motor allow for more drilling and driving per charge at consistently high speeds

Applications

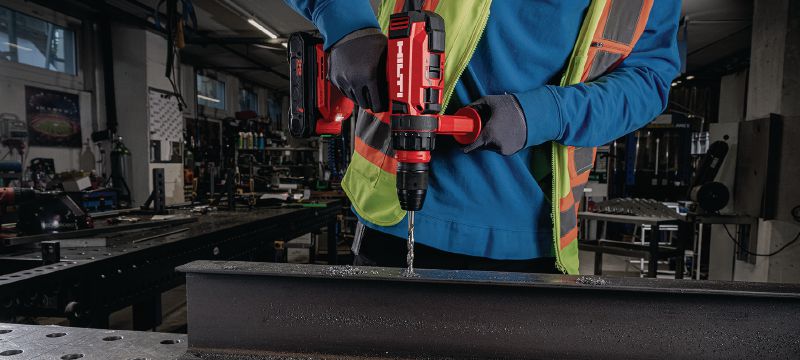

  • Drilling in metal with HSS bits up to 20 mm diameter
  • Drilling in sheet metal up to 3 mm thick with step drill bits up to 40 mm diameter

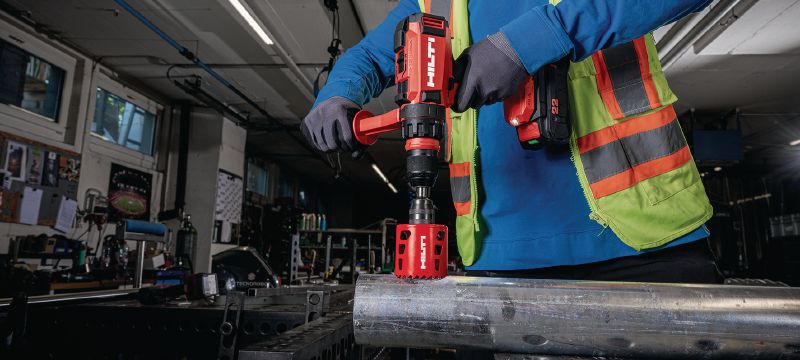

  • Drilling holes in metal using hole saws up to 102 mm

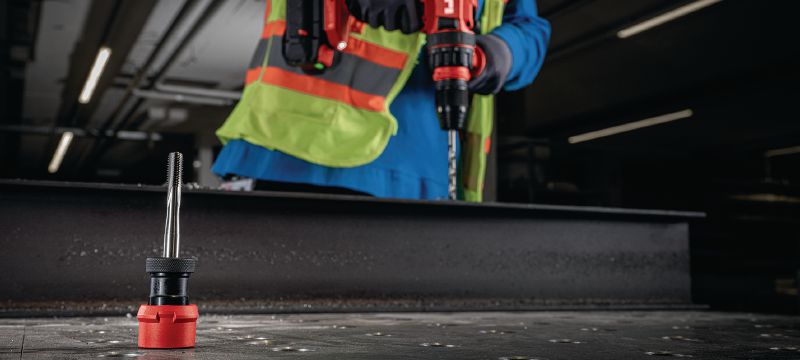

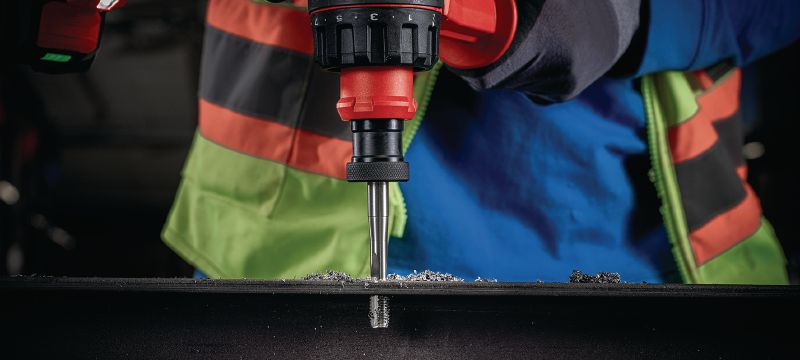

  • Thread tapping up to size M16 (square shank bits suitable with thread tap chucks)
  • Countersinking in metal up to 31 mm diameter
