DX 462 CM Metal stamping tool
Fully automatic, high-productivity, powder-actuated tool for marking on cold and hot metal surfaces
- Dimensions (LxWxH): 608 x 72 x 180 mm
- Weight: 4.35 kg
- Fastener intake: Specialty
Customers also searched for Steel punch, Steel marking tool, Metal punch, Metal graving tool or Marking tool.
Technical Data
Dimensions (LxWxH)
608 x 72 x 180 mm
Weight
4.35 kg
Fastener intake
Specialty
Fastener length range
0 - 0 mm
Cartridge type
.27 calibre short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
362 J
Power regulation
Yes
Piston type
X-462-PM
Documents
Features & Applications
Features
- Total mobility and complete independence from electrical power supplies
- Marking head can accommodate up to 10 characters (depending on character type) in any combination of letters and numbers
- Increased reliability with simple cleaning and servicing
- A simple but secure locking mechanism ensures that the letters or numbers can be changed quickly and easily
Applications

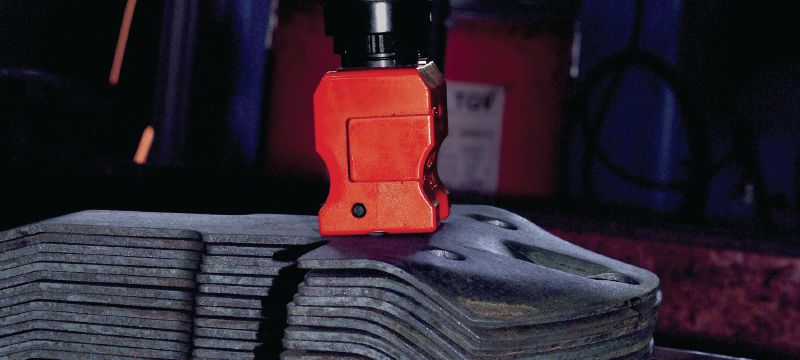

- Marking on hot metal surfaces with a temperature up to 800°C
- Marking on metal components for identification, traceability and quality control in steelworks, manufacturing plants, testing institutes, etc.
- Marking on slabs, blooms, billets and ingots as well as light-, medium- or heavy-duty steel sections
- Marking on metals with sharp, low-stress and mini-stress character types in different sizes
For approval or certificate information, please see individual items.
Services

Hilti Tool Service
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 1-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
