TE 1000-AVR TE-S demolition hammer

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 10,545.49

Technical Data

Working direction

Floor, Wall

Tool chuck type

TE-S

Weight according to EPTA Procedure 01/2003

12.5 kg

Single impact energy

26 J

Full hammering frequency

1950 impacts/minute

Max. chiselling performance

7800 cm³/min

Dimensions (LxWxH)

710 x 141 x 305 mm

Triaxial vibration for chiselling in concrete

5.9 m/s² ¹

Dust removal system available

TE DRS-B

A-weighted emission sound pressure level

88 dB (A) ²

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet

Operating Instruction

pdf Material safety datasheet Hilti Grease (AR) [ 927.2 KB ]

Download

pdf Material safety datasheet Hilti Grease (EN) [ 735.3 KB ]

Download

Features & Applications

Features

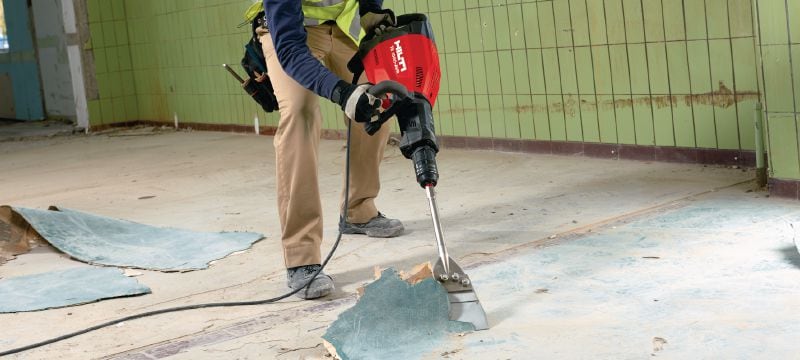

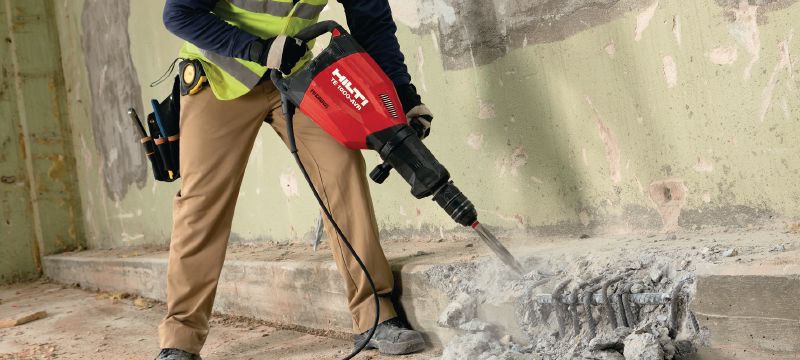

High versatility – in-line design for floor breaking and ergonomic side handle for occasional wall breaking
Maintenance-free brushless SR motor and triple-chamber lubrication systems for longer service intervals and tool lifetime
Exceptionally low tool vibration due to Hilti AVR sub-chassis (Active Vibration Reduction) system
Detachable supply cord for fast and easy replacement of damaged/broken supply cords on the jobsite

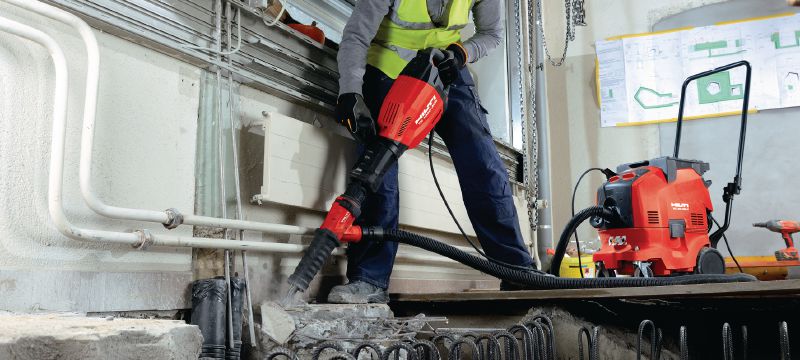

Optional TE DRS-B dust removal system, which collects up to 95% of dust
