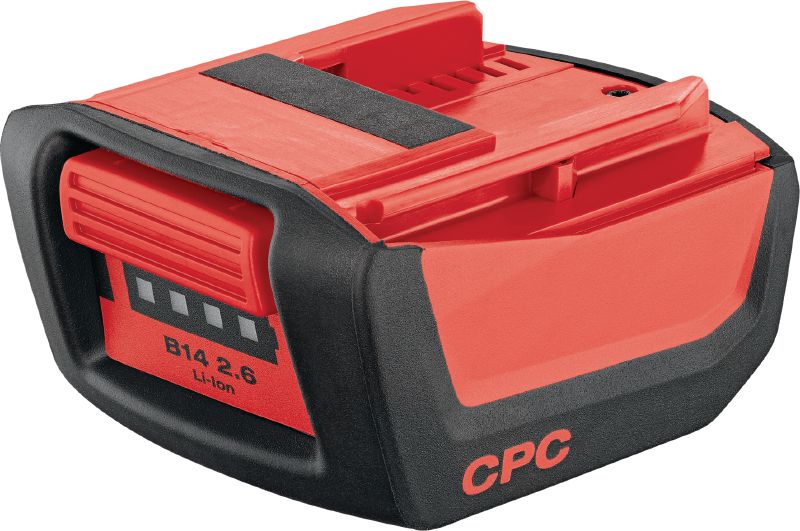

B14 2.6 14V Battery

L109206 (188384)

L109206 (188384)

Compact Li-ion 14V 2.6 Ah battery

Battery capacity: 2.6 Ah
Weight: 0.37 kg
Dimensions (LxWxH): 103 x 81 x 51 mm

Technical Data

Battery capacity

2.6 Ah

Weight

0.37 kg

Dimensions (LxWxH)

103 x 81 x 51 mm

Battery energy

37 Wh

Charging time with C4/36-90 battery charger

35 min

Charging time with RC4/36 Radiocharger

35 min

Charging time with C4/36-350 battery charger

35 min

Working temperature range

-17 - 60 °C

State of charge display

Yes

Documents

Features & Applications

Features

Compact and lightweight 14V battery providing 2.6 Ah
Up to 60% more run time from the same size and weight than the previous generation
Cordless Power Care (CPC) technology intelligently monitors each battery cell for consistent, longer-lasting power output and a reliable charge status display
The rubberised, glass-fibre reinforced casing is up to four times more resistant to damage from dropping and twice as resistant to extreme temperatures than standard ABS plastic
Fully sealed electronics for increased protection against dust, humidity and water

Applications

Compatible with all Hilti 14V tools
Compatible with all Hilti C4/36 Li-ion chargers
Applications in extreme temperature conditions – from 60° C (140° F) down to -17° C (1.4° F)
Working in tight spaces where compact dimensions and low weight are high priorities

For approval or certificate information, please see individual items.
