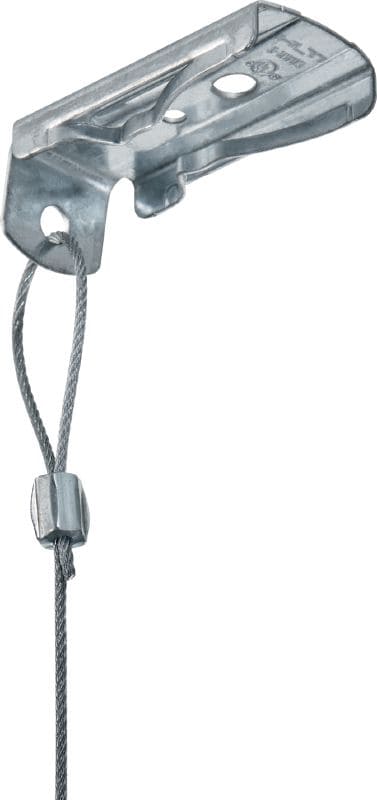

X-MW MX wire hanger system
Wire hanger system for spiral HVAC ducting and lighting applications, installed using battery-actuated fastening tools
- Material: Carbon steel
- For use with (tools): BX 3
- Base materials: Concrete, Steel
ultimate
Technical Data
Material
Carbon steel
For use with (tools)
BX 3
Base materials
Concrete, Steel
Corrosion protection
Galvanic zinc-plated
Environmental conditions
Dry indoor
Product class
Ultimate
Documents
Features & Applications
Features
- Shorter installation time – wire suspensions are a faster alternative to threaded rod

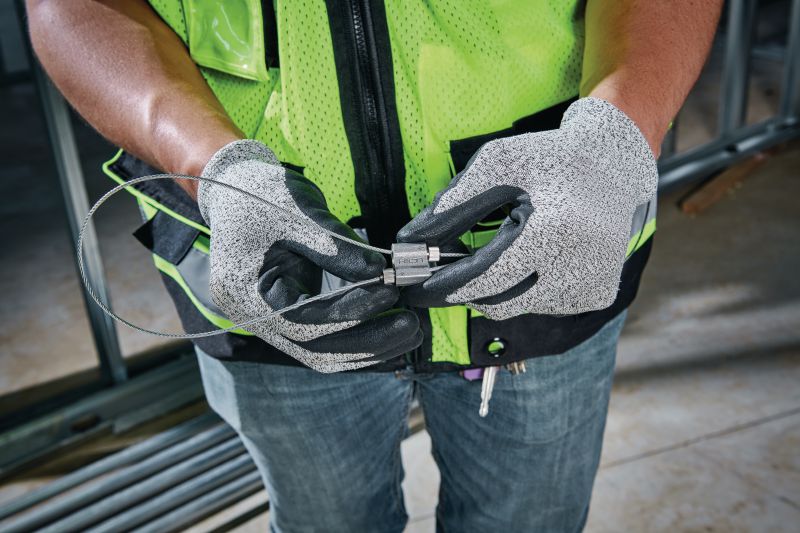

- Easier to adjust – self-closing wire lock can be adjusted tool-free, making leveling, retrofitting and long drop lengths much simpler
- Aesthetics – wire rope suspension is a discreet installation method for exposed building services and open soffits

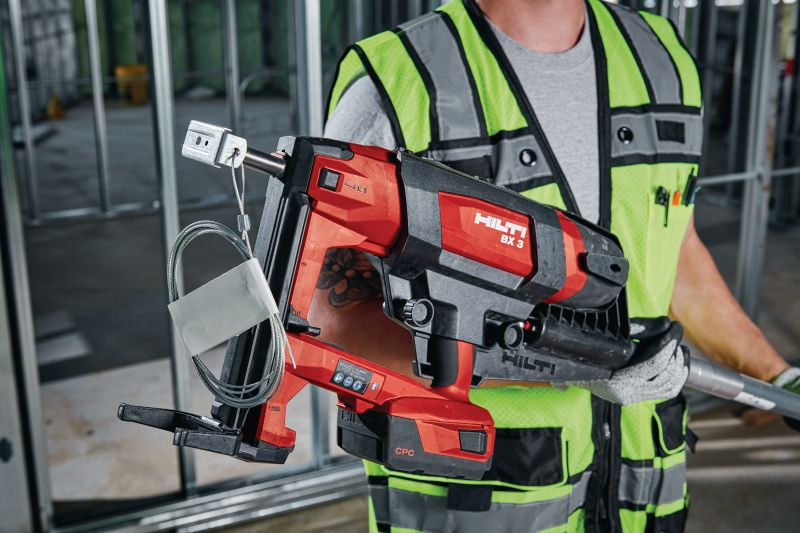

- Combustion-free operation – no gas cans or powder cartridges to shop and dispose of and no certification required when used with fully electric BX fastening tools,

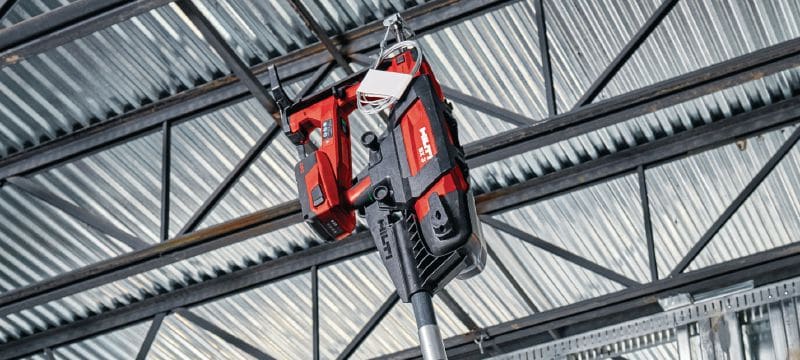

- Can be fastened while standing on the floor using the BX pole tool – safer method of installation avoiding lifts and ladders
Applications

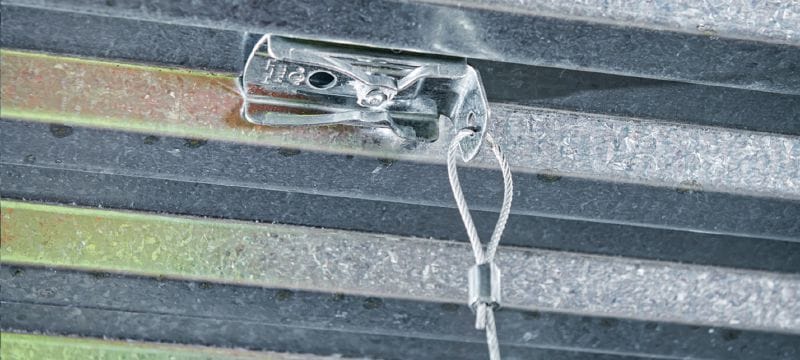

- Suspending spiral HVAC duct from concrete, wood and metal deck

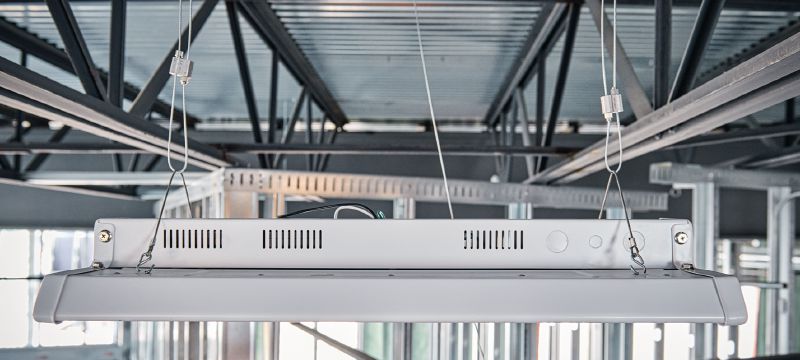

- Suspending electrical lighting from the ceiling
- Suspending security attachments (secondary attachment point to work if first attachment point fails)
- Up to 30 lbs (13.5 kg) allowable load values
- Suitable for use in dry, indoor environments only
For approval or certificate information, please see individual items.
