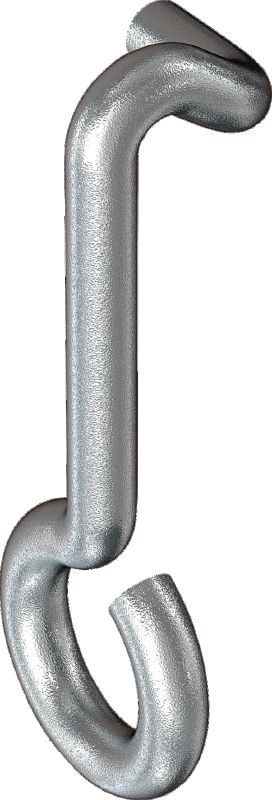

Trapezoidal plate hook for hanging MW wire rope suspension systems from metal deck

  • Material composition: Steel
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Technical Data

10_Wire_MW_DH (218418)
Material composition
Steel
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

  • Faster installation – trapezoidal deck hooks stay in place without additional screws
  • Easy connection to MW wire
  • Versatile – compatible with a wide range of sheet metal deck
  • CE mark (DIN EN 13964)

Applications

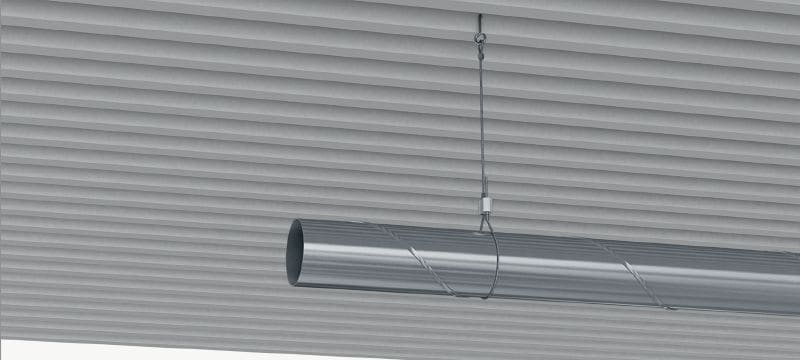

  • Suspending lightweight ventilation duct

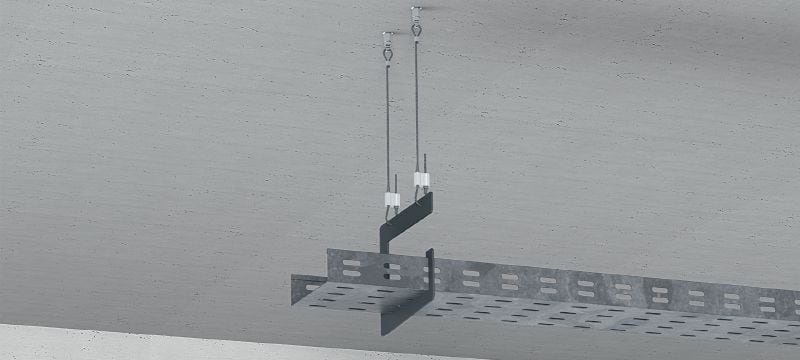

  • Suspending lightweight trapeze
  • Suitable for use in dry, indoor environments only
  • Compatible with 1.5 and 2.0 Hilti wire rope

For approval or certificate information, please see individual items.
