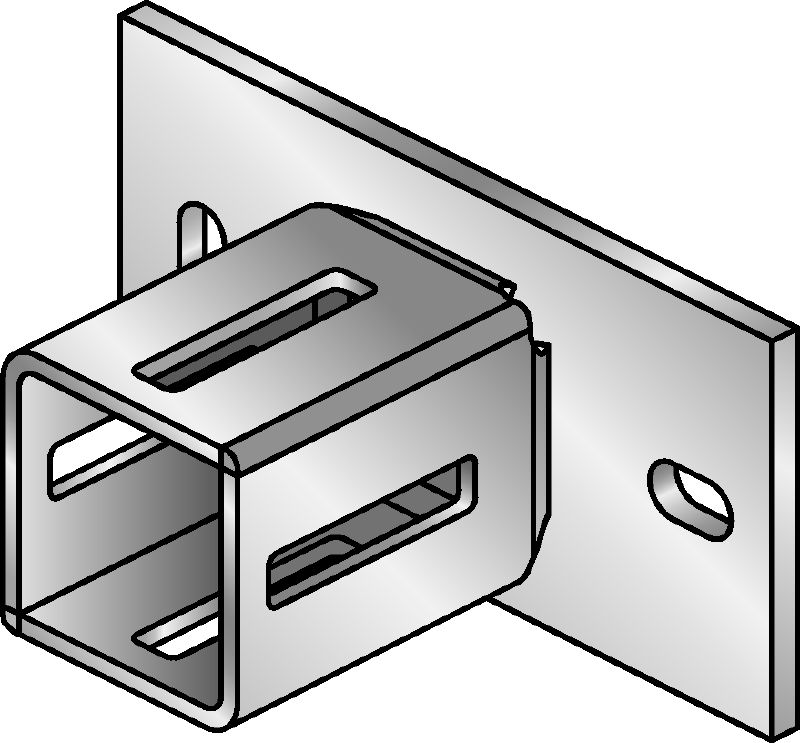

MIC-C-UH Connector
Connector for fastening MI girders to concrete
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Technical Data
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- Elongated holes – to simplify exact positioning
- Suitable for use with mechanical or chemical anchors depending on loading and type of base material
- No welding required – for faster, more efficient installation
- No welding, no downtime
- All parts are reusable
Applications

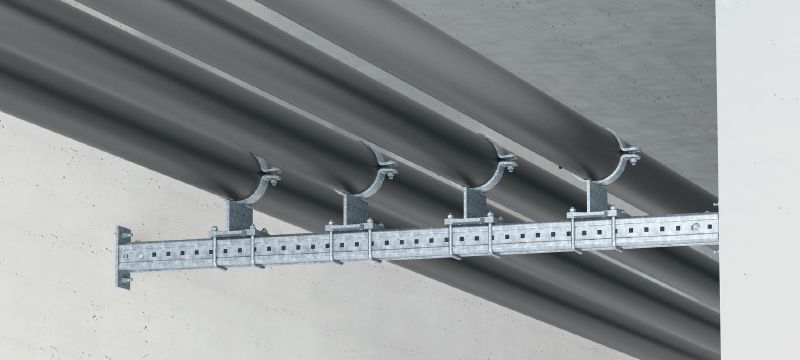

- Installing MI girders between two walls
- Fastening to concrete walls, floors or ceilings
- Applications requiring extra-high load capacity
- Supporting cable trays, pipes and miscellaneous secondary steel
- High shear load capacity for non-cantilever structures
For approval or certificate information, please see individual items.
