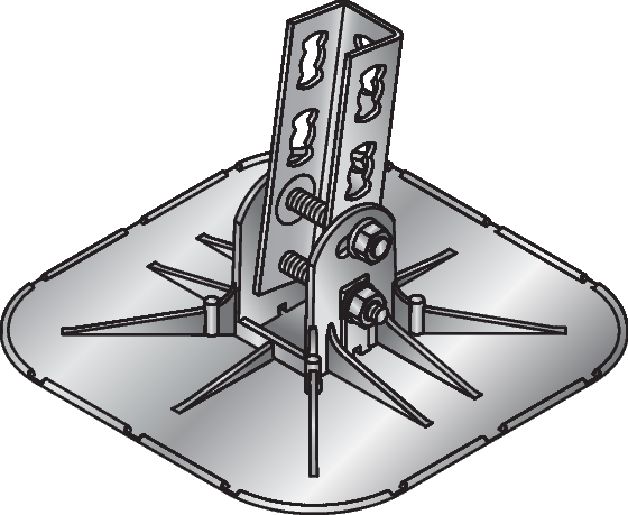

MV-LDP-L Load distribution plate

Load distrib. plate MV-LDP 290x290 set #2174559

IS_LDP_L_0002 (178577)
LCG001752_v1_cropped (181929)
IS_LDP_L_0001 (178576)

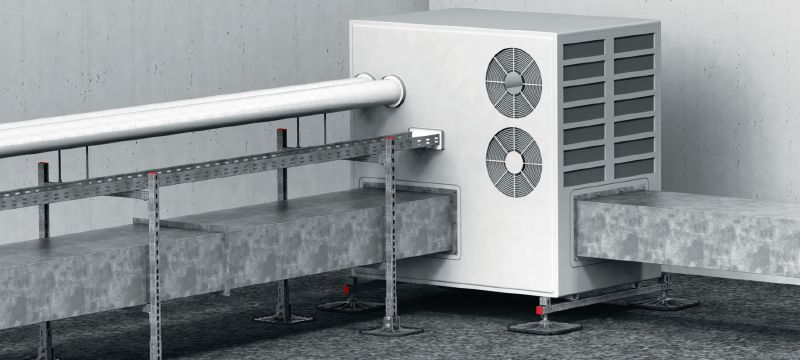

Robust load distribution plate with adjustable angle for installing air conditioning units, walkways, ventilation ducts, pipework or cable trays on flat roofs

  • Material composition: Plate: die cast aluminium, Connector: S235JR - DIN EN 10025, Rubber plate: EPDM
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 11,120.93
AED 926.74
/
1 Piece

Technical Data

Material composition
Plate: die cast aluminium, Connector: S235JR - DIN EN 10025, Rubber plate: EPDM
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
2757 g
Maximum load - F
10 kN

Documents

pdf Operating Instruction MV-LDP 290x290, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 629.3 KB ]

Features & Applications

Features

  • Up to 10 degree adjustment to compensate for roof pitch
  • Vertical and horizontal connectivity of MQ channels possible
  • Easier mounting of MQ channels when used with MQN push button channel connectors
  • Robust aluminium plate to evenly distribute loads along its surface
  • Perfectly suitable for outdoor applications, with features such as aluminium feet for high weather resistance

Applications

  • Installing air conditioning units, walkways, ventilation ducts, pipework or cable trays on flat roofs
