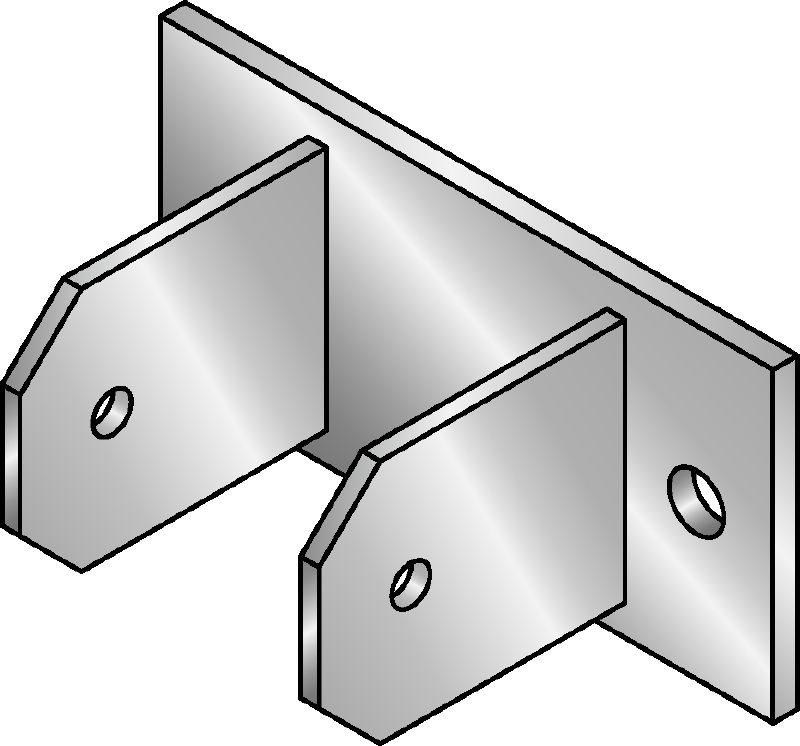

MIC-CU-MAH connector
hot-dip galvanised (HDG) connector for fastening girders directly to concrete at angles between 0 and 180 degrees
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Technical Data
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- High-strength part designed for extra-high application loads
- Anchor holes for fastening to concrete
Applications

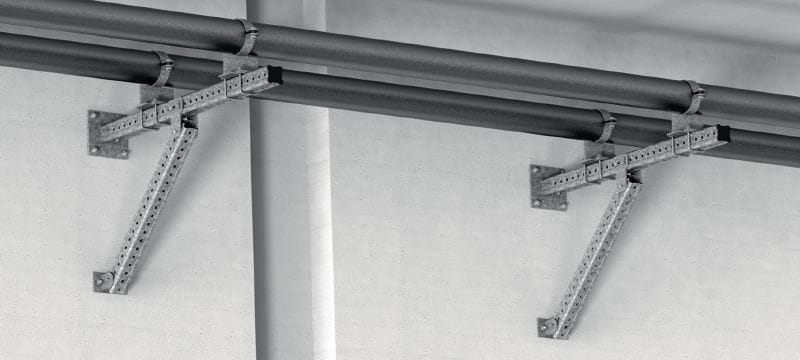

- Connecting girders directly to concrete at angles between 0° and 180°
- Fastening to ceilings, walls and floors
- Supporting cable trays, pipes and miscellaneous secondary steel
- Commonly used for supporting cable trays, pipes and miscellaneous secondary steel
For approval or certificate information, please see individual items.
