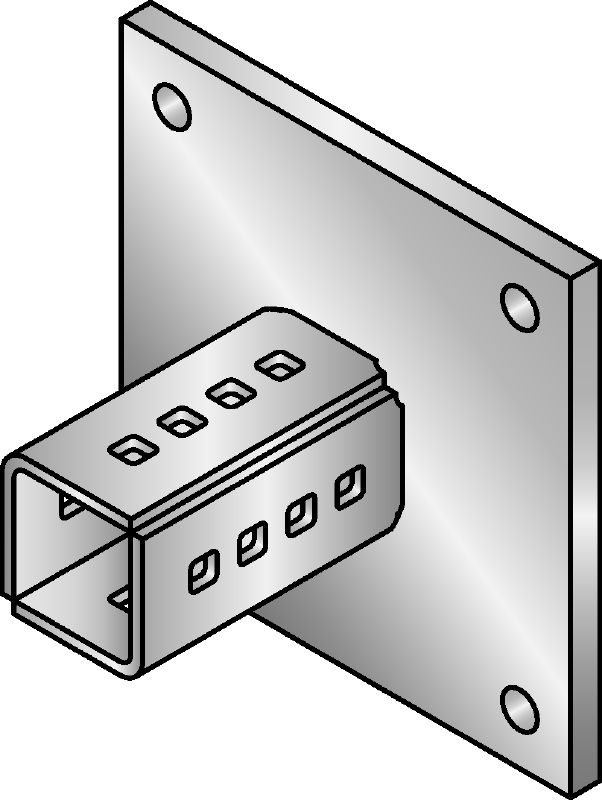

Hot-dip galvanised (HDG) baseplate for fastening MI-90 girders to concrete for heavy-duty applications

  • Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
  • Surface finish: HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

Material composition
Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • High-strength part designed for extra-high application loads
  • Concrete connector base plates can be fastened using a variety of Hilti anchors
  • Designed for fast, one-person installation and extension
  • No welding required – for faster, more efficient installation
  • Hot-dip galvanised coating for better corrosion protection

Applications

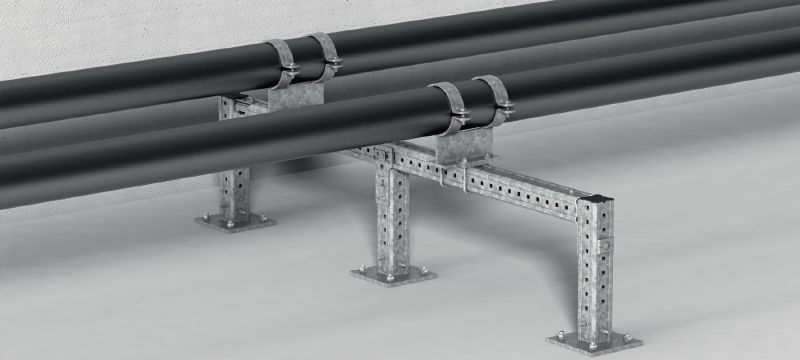

  • Part of a modular system for supporting cable trays, pipes and miscellaneous secondary steel
  • Fastening to concrete
  • Fastening to ceilings, walls and floors
  • Designed to provide extra-high load capacity
  • Recommended for use in moderately corrosive outdoor and indoor environments

For approval or certificate information, please see individual items.
