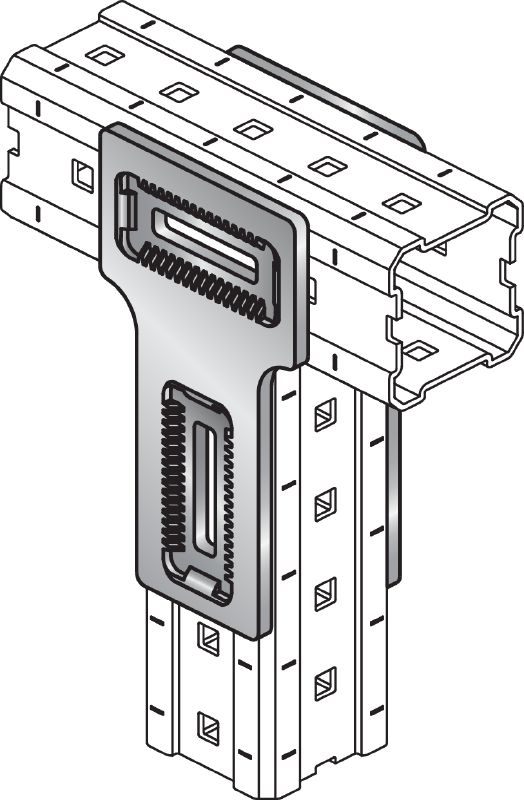

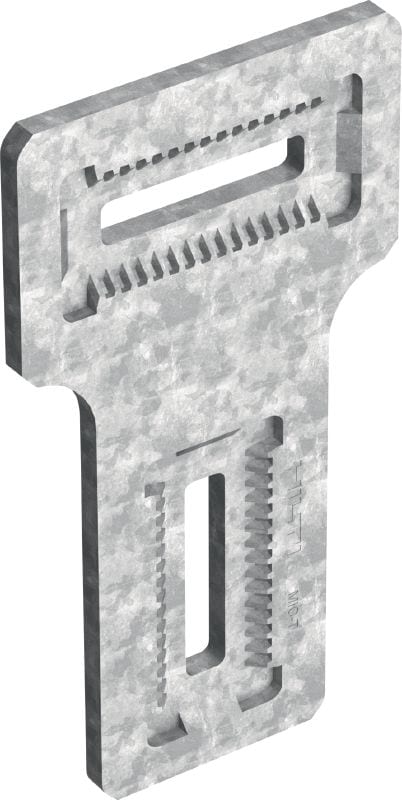

Hot-dip galvanised (HDG) connector for fastening MI girders perpendicularly to one another

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for 3d channel systemsconnecting girderscable tray installationspiping installations or metal connectors.

Technical Data

28657.eps
IS_HNA_316.eps
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • Positive engagement for optimum transmission of forces and moments
  • Connector comes with self-locking nuts to help protect against vibration
  • Rigid extension for connection of MI girders
  • Designed for fast, one-person installation
  • No welding required – for faster, more efficient installation

Applications

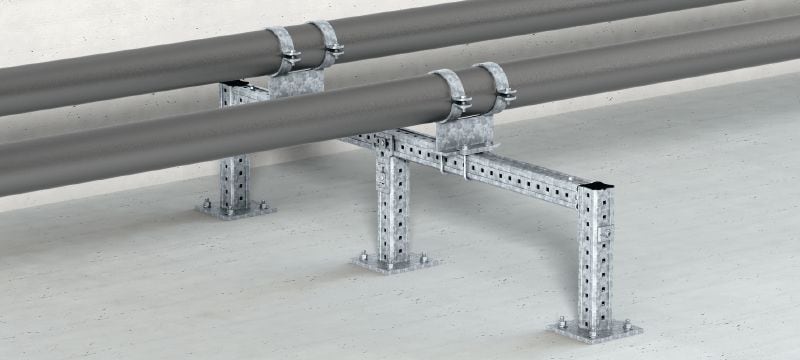

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Industrial and heavy commercial applications requiring an easy-to-install, adjustable, flexible solution that eliminates the need for welding
  • Pedestal connections
