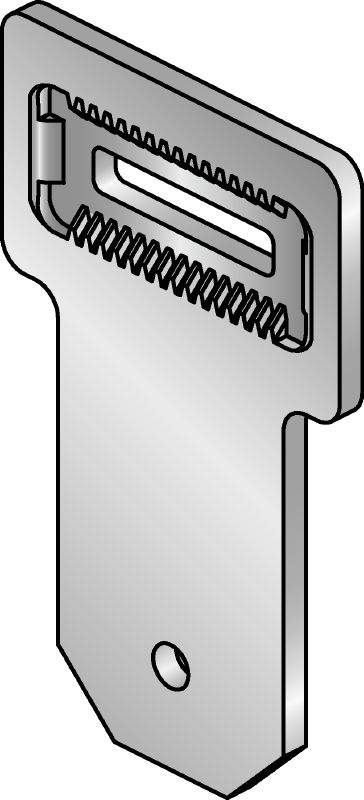

Hot-dip galvanised (HDG) multi-angle connector used with MIC-MAH connectors for fastening MI girders to one another at an angle

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for 3d channel systemsconnecting girderscable tray installationspiping installations or metal connectors.

Technical Data

IS_ME_317.eps
IS_HNA_317.eps
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • Connector comes with self-locking nuts to help protect against vibration
  • Can be finely adjusted by up to 5 mm
  • Keyed hold for optimum transmission of forces and moments

Applications

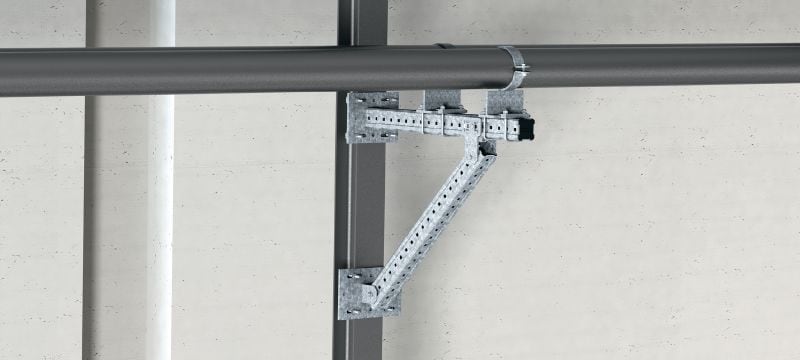

  • For supports or corner struts at angles between 0° and 180°

For approval or certificate information, please see individual items.
