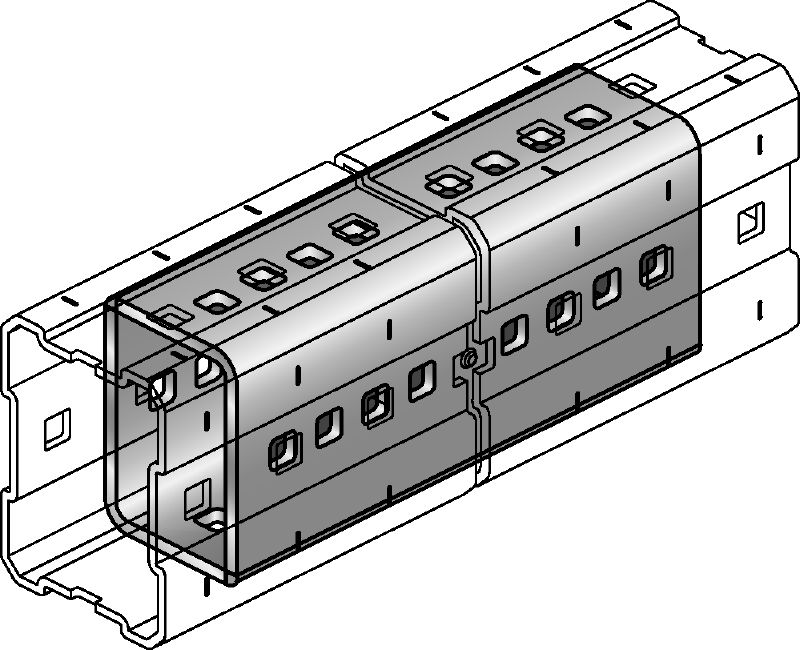

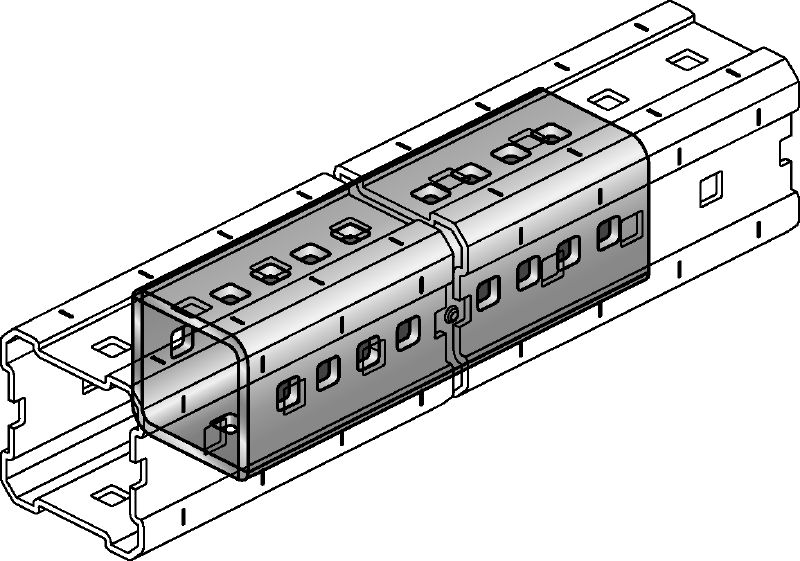

Hot-dip galvanised (HDG) connector used to connect MI girders longitudinally for long spans in heavy-duty applications

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Customers also searched for 3d channel systemsconnecting girderscable tray installationspiping installations or metal connectors.

Technical Data

Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm

Documents

Features & Applications

Features

  • Designed for faster and more efficient installation
  • Positive locking hold for optimum transmission of forces and moments
  • Connector comes with self-locking nuts to help protect against vibration
  • Built-in stop helps prevent the extension sliding right inside the girder

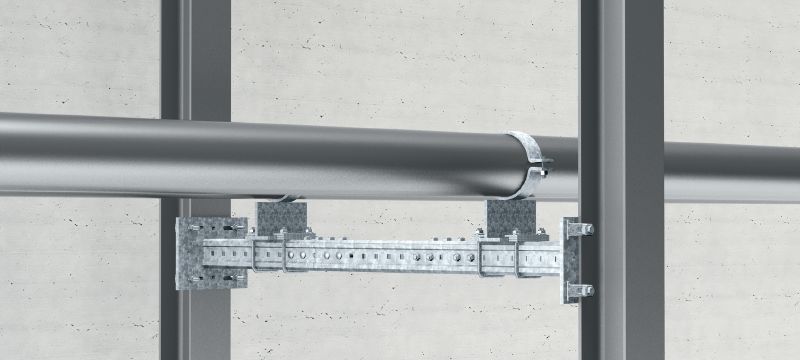

Applications

  • Connecting MI girders to each other longitudinally

For approval or certificate information, please see individual items.
