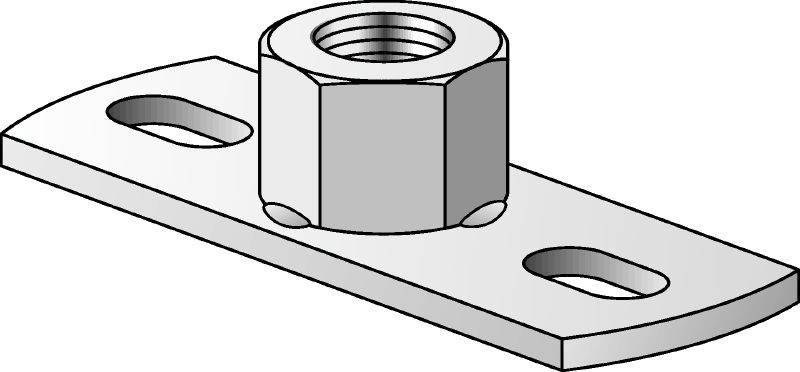

MGL 2 light-duty base plate

2-hole Baseplate MGL 2-M10 #246909

Galvanised light-duty base plate to fasten metric threaded rods with two anchor points

  • Thread connection - M: M10
  • Height - H: 13 mm
  • Maximum tensile load - F: 2.2 kN

Choose options

Thread connection - M
  • M10
Height - H
  • 13 mm
Maximum tensile load - F
  • 2.2 kN
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 57.59

AED 5.76 / 1 Piece

Technical Data

Thread connection - M
M10
Height - H
13 mm
Maximum tensile load - F
2.2 kN
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2
Weight
0.06 kg

Features & Applications

Features

  • Easy to install
  • Secure fastening with 2 anchor points

Applications

  • Fastening light-duty pipes to concrete with two fastening points
  • Recommended for use in dry, interior environments
