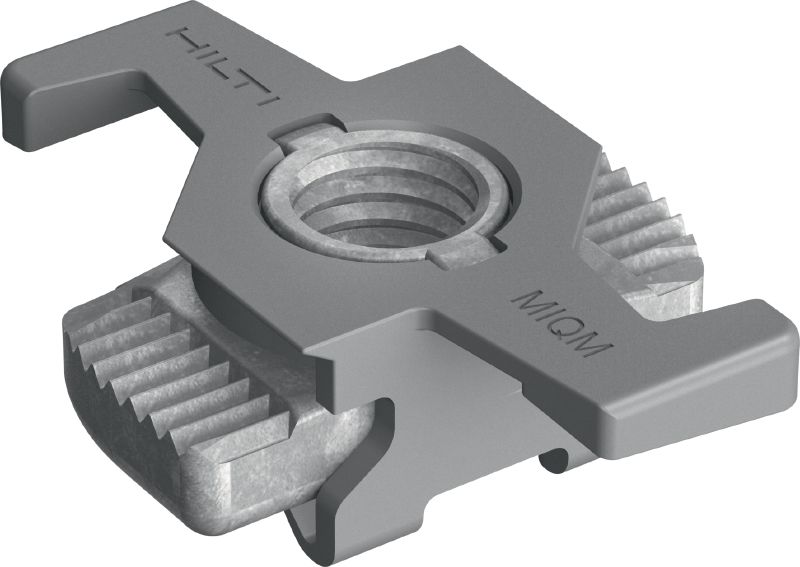

MIQM Wing nut, connecting element for MIQ profiles

  • Tightening torque: 84 Nm
  • Thread connection - M: M16
  • Material composition: Nut: C4C - DIN EN 10263, Plastic: PA 6.6

Choose options

Thread connection - M
  • M16
Pack size
  • 25 pc
Product options
Quantity
Packs
Total Piece
25
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 2,140.68

AED 85.63 / 1 Piece

Technical Data

Tightening torque
84 Nm
Thread connection - M
M16
Material composition
Nut: C4C - DIN EN 10263, Plastic: PA 6.6
Surface finish
Hot-dip galvanized, 55 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
37 g

Documents

Features & Applications

Features

  • Can be inserted at any point along the girder
  • Nut with a flexible wing to hold it in place during installation
  • Flush connection to channel possible

Applications

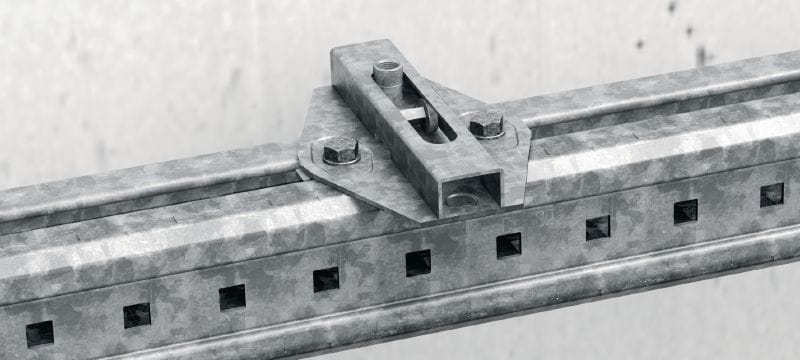

  • Easy assembly of the parts of the structure
