MIQC-H cross connector
Connector MIQC-90-MI-V #2140258
hot-dip galvanised (HDG) heavy-duty connectors to connect two MIQ girders
- Weight: 2.06 kg
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
- Set: Yes
Choose options
Pack size
- 4 pc
Quantity
Packs
Total Piece
4
Ex Vat and Packaging/Forwarding charges
Technical Data
Weight
2.06 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Set
Yes
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- No welding required – for faster, more efficient installation
- Seamless positioning and adjustability along the girder
- Designed for fast, one-person installation
- heavy-duty connections designed to carry high loads
Applications

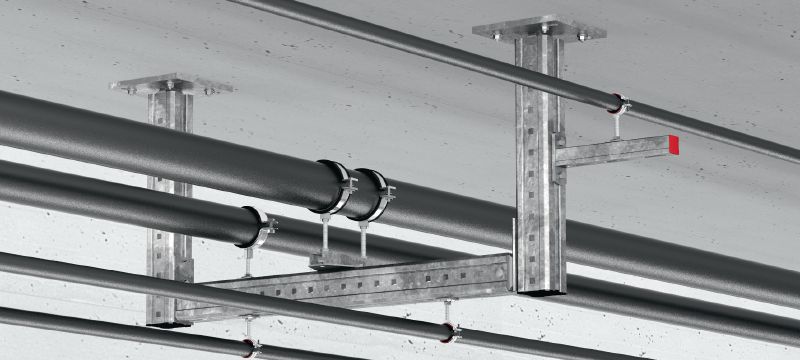

- Part of a modular system for supporting cable trays, pipes and other installations
- heavy-duty cross-beam connections with MIQ-90 girders
- heavy-duty goalposts and U-frames
