MI-SGC M12

LCG002322_HDG_v1 (203023)

LCG002322_HDG_v1 (203023)

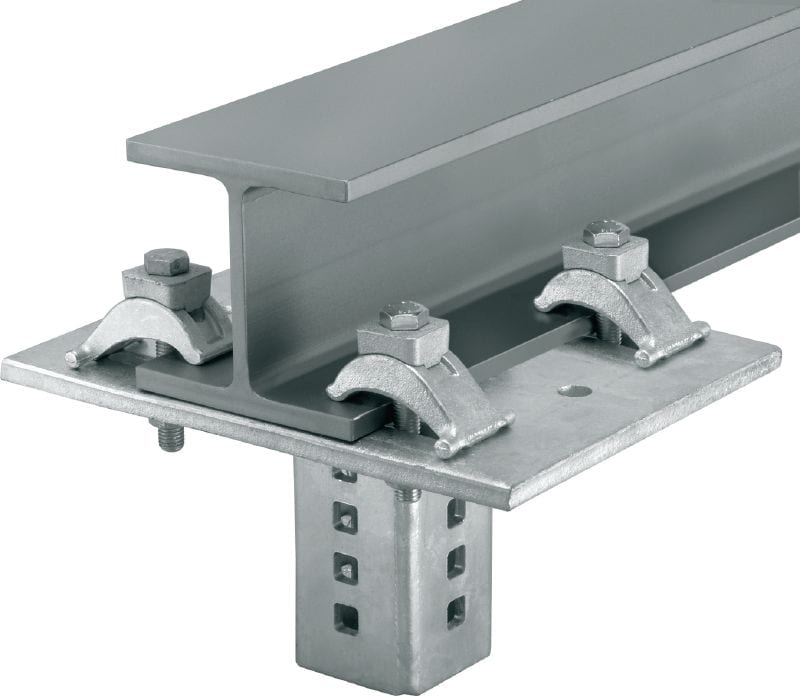

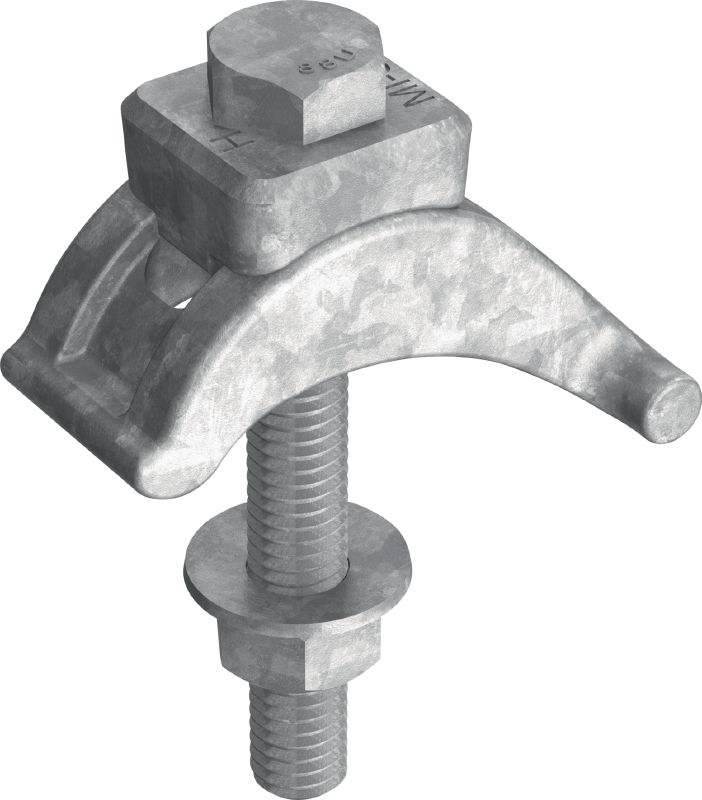

Hot-dip galvanised (HDG) single beam clamp for connecting MIQ steel baseplates to steel beams

Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

Material composition

Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

For steel beams with flange thicknesses from 3 to 36 mm and angles of up to 15°
Corrosion protection on the steel beam is not damaged by the beam clamp
Equipped with a set of vibration-resistant washers

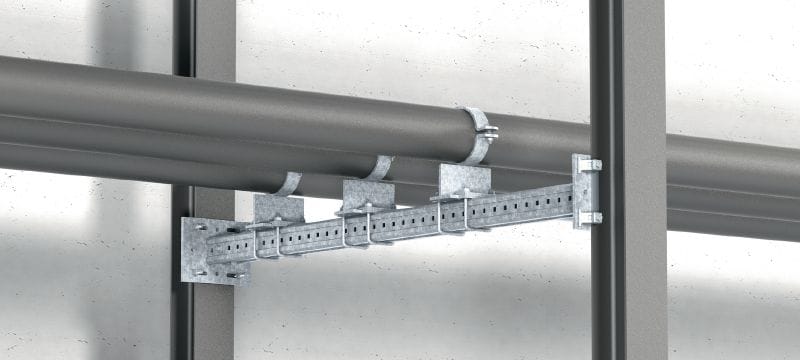

Applications

Compatible with steel beams with flange thicknesses from 3-36 mm and angles of up to 15°

For approval or certificate information, please see individual items.
