MQT-G Beam clamp

Swivel beam clamp MQT-G M8 #284238

Configurator
Technical Data
Features & Applications
Related Products
MQT-G

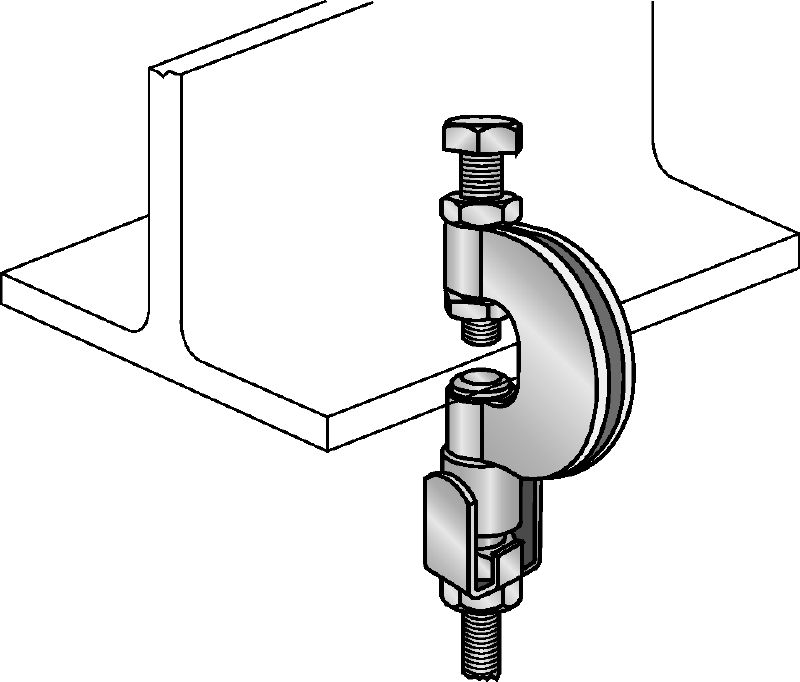

Galvanised beam clamp for fastening threaded rods to sloping steel girders

  • Base material type: Steel
  • Thread connection - M: M8
  • Material composition: High-grade alloy steel S420NC

Customers also searched for beam clamps, connections for steel beams, glavanised connectors, connectors or metal connectors.

Choose options

Thread connection - M
  • M8
Pack size
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 5,517.26
AED 137.93 / 1 Piece

Technical Data

Base material type
Steel
Thread connection - M
M8
Material composition
High-grade alloy steel S420NC
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
266 g

Features & Applications

Features

  • Installation on steel beams without drilling or welding, also on inclined steel beams
  • No bending on threaded rods – tensile load only
  • Fits all standard beams (max. clamping thickness 17 mm parallel)
  • The attachment fits all standard beams (max. clamping thickness 17 mm parallel)

Applications

  • Fastening threaded rods to steel girders without drilling or welding
  • Recommended for use in dry, interior environments
