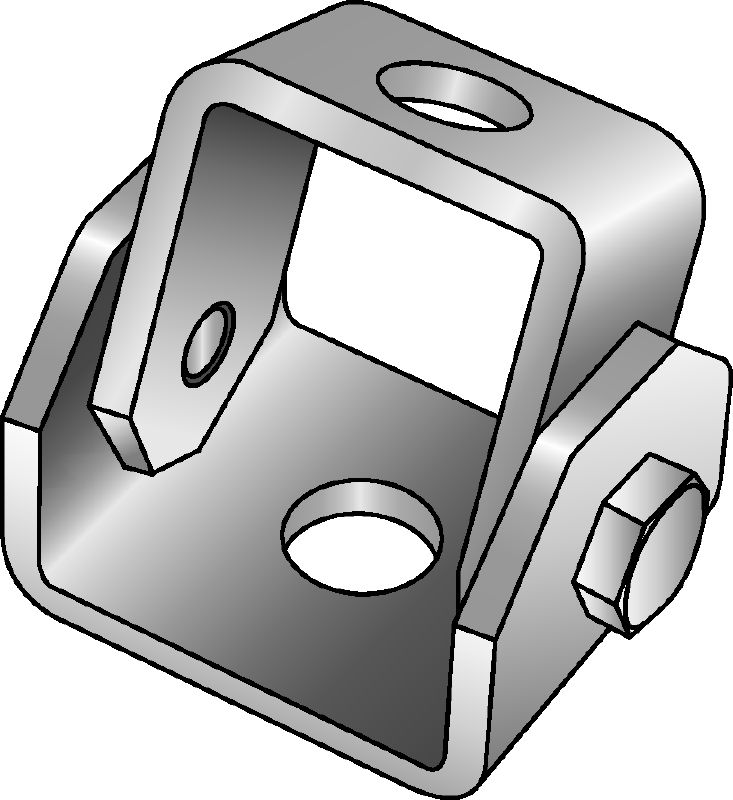

MT-AB-TR / MQP-U Universal joint
Galvanised pivoting element for bracing modular support systems with threaded rod
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 5 mm
Customers also searched for joining,meta channels, installing metal channels, glavanised connectors, connectors or metal connectors.
Choose options
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 713.47
Technical Data
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
5 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
pdf ETA-26_0435_Static_Baseplates_EN, English [ 937.2 KB ]
Features & Applications
Features
- Angle adjustable by up to 90 degrees
- Easy to use – threaded rod height is simple to adjust
- For use with both MT System C-Channels and box profiles
Applications
- Universal use on inclined building components
For approval or certificate information, please see individual items.
