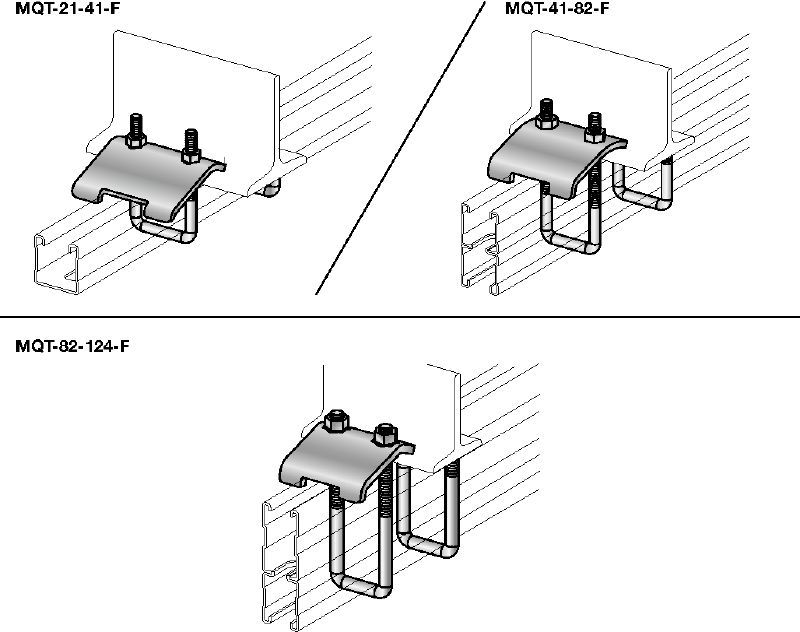

MQT-F Beam clamp
Hot-dip galvanised (HDG) beam clamp for connecting MQ strut channels directly to steel beams
- Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Customers also searched for beam clamps, metal clamps, hot dipped glavanised connectors, HDG connectors or metal connectors.
Choose options
Thread connection - M
- M8
- M10
- M12
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 434.35
Technical Data
Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
pdf Corrosion handbook, English [ 9.6 MB ]
Features & Applications
Features
- Pre-assembled – for quicker installation and to avoid losing parts
- No drilling or welding necessary
- Versatile, no small parts to lose
- The attachment fits all standard beams (max. clamping thickness = 23 mm)
- Quick installation
Applications
- Compatible with steel beams with max. flange thickness of 23 mm
For approval or certificate information, please see individual items.
