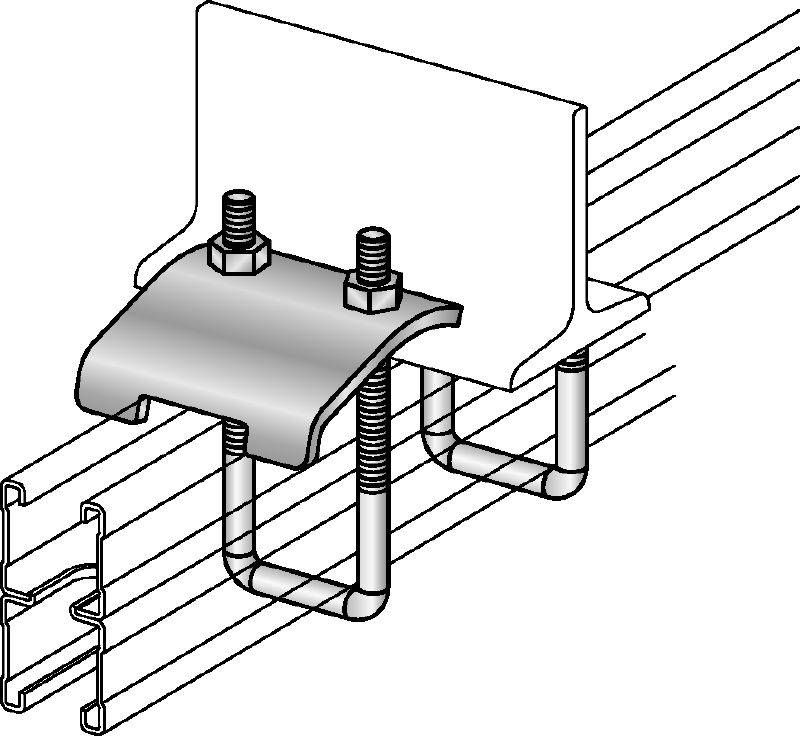

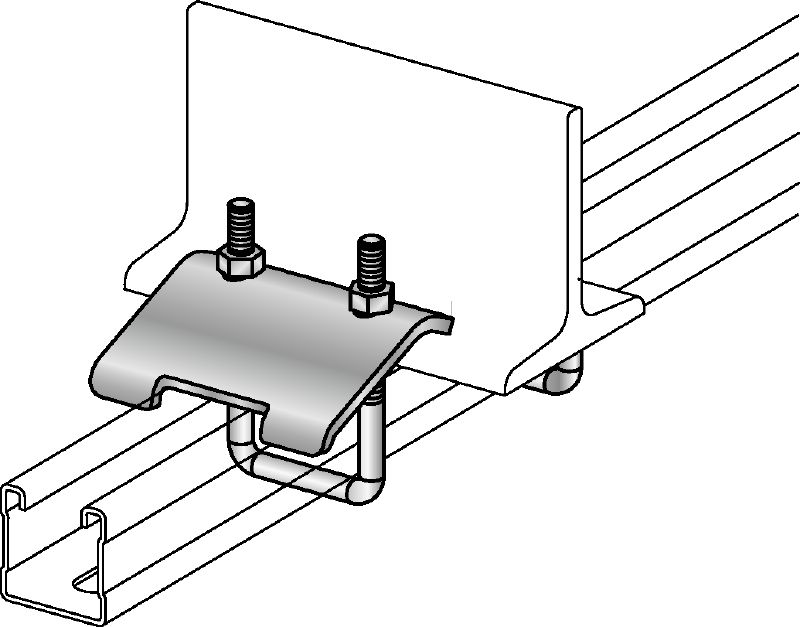

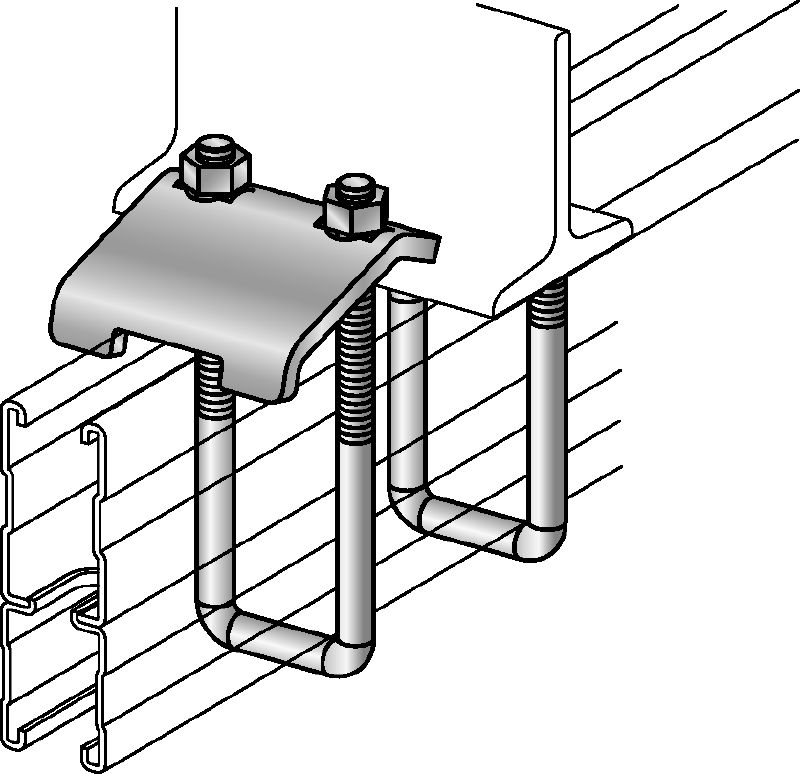

Galvanised beam clamp for connecting MQ strut channels directly to steel beams

  • Wrench size: 13 mm
  • Tightening torque: 10 Nm
  • Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961

Customers also searched for beam clampsU clampsglavanised connectorsHDG connectors or metal connectors.

Choose options

Thread connection - M
  • M8
  • M10
  • M12
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 1,572.66

AED 157.27 / 1 Piece

Technical Data

14725.eps
Wrench size
13 mm
Tightening torque
10 Nm
Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
Surface finish
Indoor Coated - Electro galvanised
Material thickness
5 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
378 g

Documents

Features & Applications

Features

  • Easier installation and positioning of strut channels
  • The attachment fits all standard beams (max. clamping thickness = 23 mm)
  • Quick installation
  • Easy readjustment possible

Applications

  • For fastening MQ channels to steel beams without drilling or welding (use only in pairs!)
