MQG-2

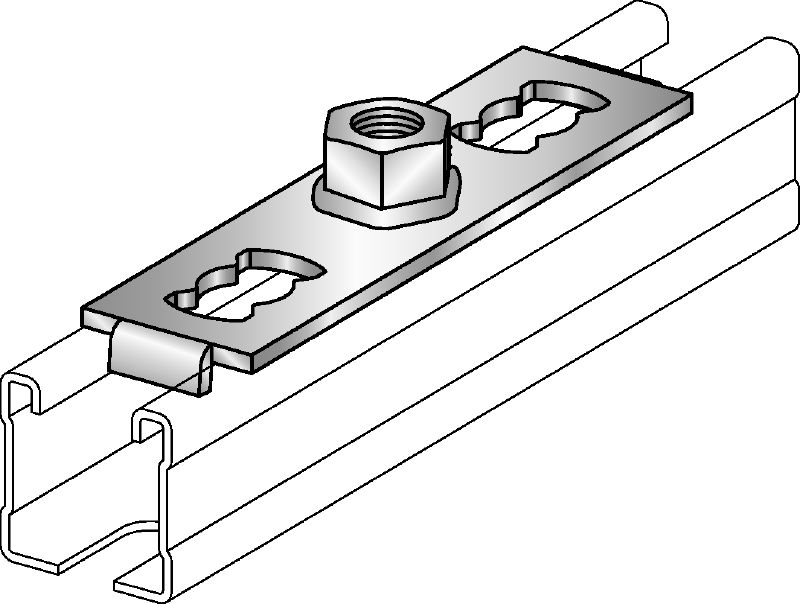

Baseplate MQG-2-M16 #369682
Galvanised base plate for connecting threaded components to MQ strut channels
- Tightening torque: 40 Nm
- Thread connection - M: M16
- Material composition: S235JR - DIN EN 10025
Choose options
Thread connection - M
- M16
Pack size
- 20 pc
Quantity
Packs
Total Piece
20
Ex Vat and Packaging/Forwarding charges
AED 680.70
AED 34.03 / 1 Piece
Technical Data
Tightening torque
40 Nm
Thread connection - M
M16
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
215 g
Features & Applications
Features
- Quick connection of threaded components to the open side of MQ strut channels
- Powerful gripping hold at the connection between metric threads and MQ channels
- Higher load-bearing capacity
- Takes up bending moments
Applications
- Fastening pipes and air ducts
- Recommended for use in dry, interior environments
