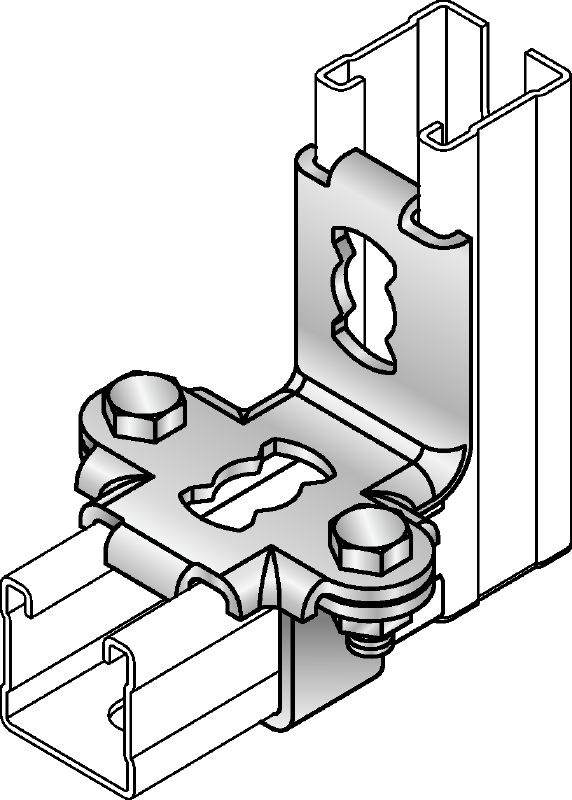

MQS-W Channel connector

Angle MQS-W-41 set #2083735

Galvanised pre-assembled strut channel connector for use in braced MQ channel trapezes for seismic applications

  • Material composition: S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 4 mm

Choose options

Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 1,419.83

AED 141.98 / 1 Piece

Technical Data

Material composition
S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
396 g
Height - H
41 mm

Documents

Features & Applications

Features

  • Designed for quicker, easier attachment to MQ modular support systems
  • Very high load capacity thanks to reinforcing bar – for optimal transfer of seismic loads
  • Holes allow the seismic brace to easily rotate according to the type of bracing required – transversal, longitudinal or 4-way
  • Three versions available to fit all main channel sizes (MQ-41, MQ-72, MQ-41D)

Applications

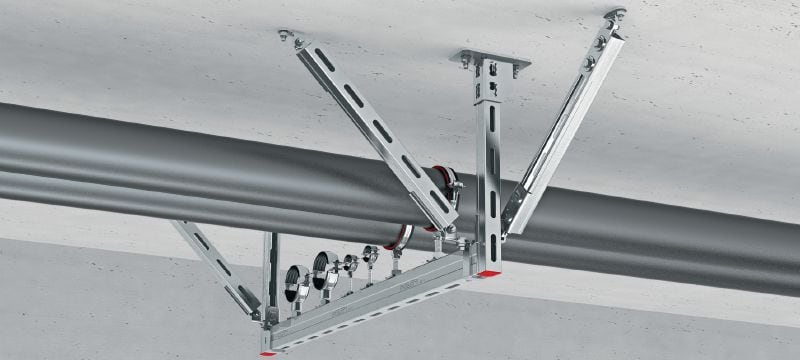

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Fastening MQS-AC or MQS-AB seismic hinges to MQ modular support systems in seismic strut channel trapeze applications
