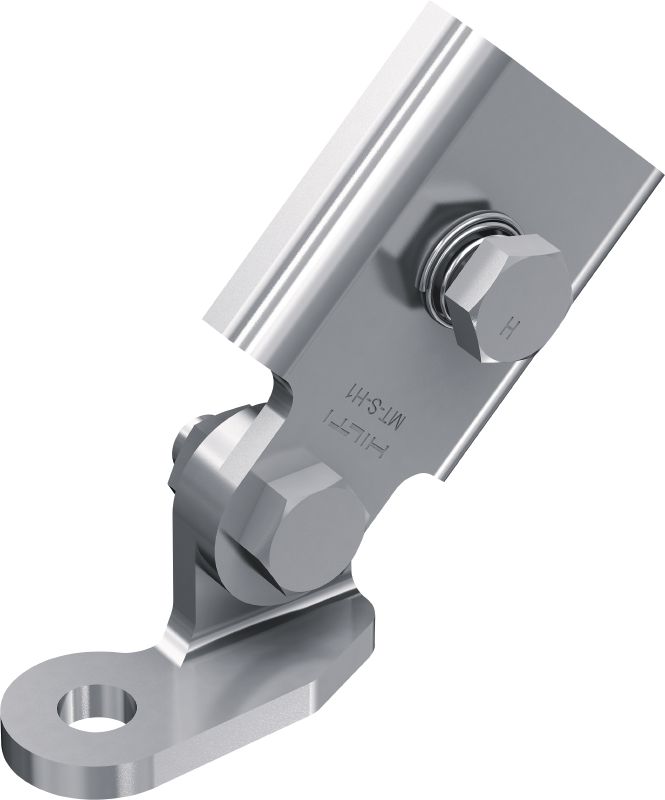

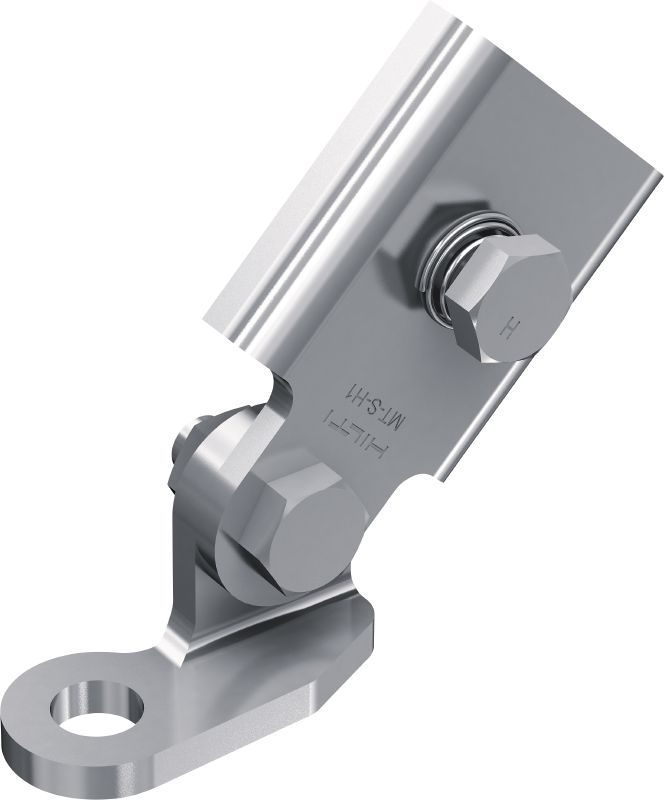

MT-S-H1 FL Pre-assembled seismic brace base
One-hole hinged connector with pre-assembled Fast-Lock nut and bolt for assembling seismic bracing of MT strut channel framing
- Material composition: Q355B
- Material and coating: Carbon steel - indoor coated
- Material thickness: 5 mm, 6 mm
Technical Data
Material composition
Q355B
Material and coating
Carbon steel - indoor coated
Material thickness
5 mm, 6 mm
Surface finish
Indoor Coated - Electro galvanised
Tightening torque
30 Nm
Documents
Features & Applications
Features
- Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
- Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
- Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
- Easy to instal – pivoting joint simplifies assembly and fastening
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Applications

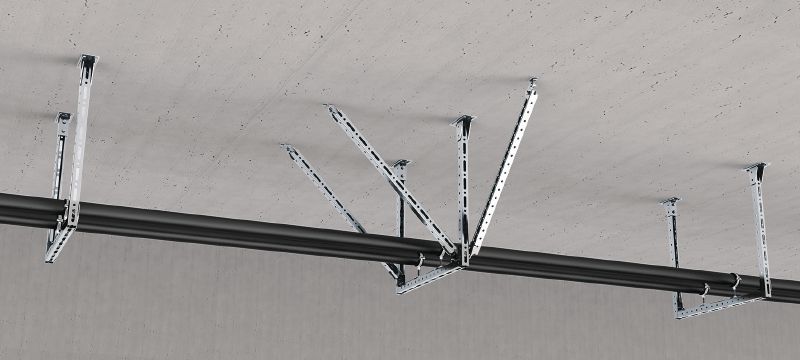

- Seismic bracing of strut channel framing
- Anchoring strut channel brace members to concrete for use as seismic bracing
- Connecting strut channel brace members to MT-S-L seismic angle brackets for use as seismic bracing
- Suitable for use in dry, indoor environments
For approval or certificate information, please see individual items.
