MT-C-Q1 FL Pre-assembled corner angle

L150732 (3505875)

LCG004017_v2_cropped (3652068)

LCG004018_v2_cropped (3652079)

08_IS_MT-C-Q1 FL_0001 (3658297)

L150732 (3505875)

LCG004017_v2_cropped (3652068)

LCG004018_v2_cropped (3652079)

08_IS_MT-C-Q1 FL_0001 (3658297)

This promotional video highlights the features and benefits of the new MT-FL Fast-lock portfolio (MT lightspeed). These connections are a new addition to the MT installation system portfolio and deliver higher productivity, flexibility and safety.

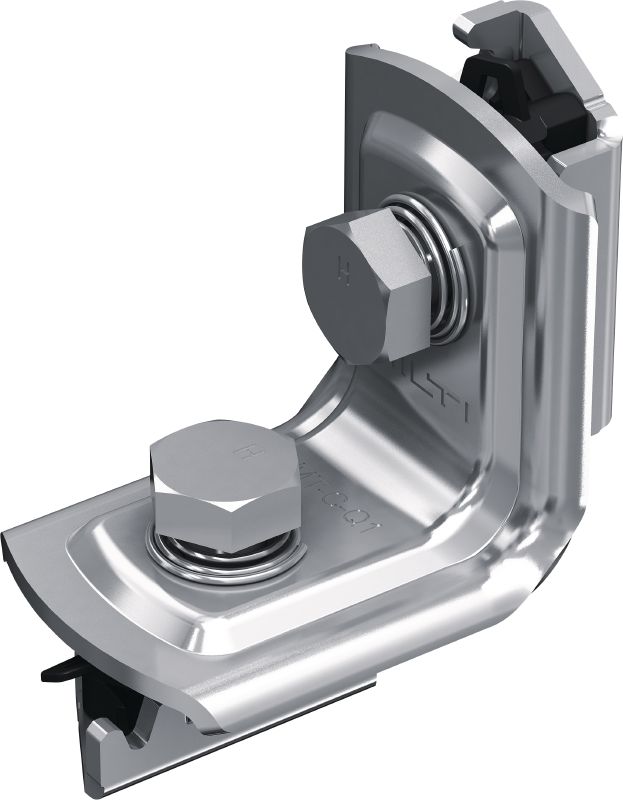

Angle bracket with pre-assembled Fast-Lock nut and bolt for assembling light-duty strut channel structures

Material composition: DD11 MOD
Material and coating: Carbon steel - indoor coated
Material thickness: 3 mm

Technical Data

08_IS_MT-C-Q1 FL_0001 (3658297)

Material composition

DD11 MOD

Material and coating

Carbon steel - indoor coated

Material thickness

3 mm

Surface finish

Indoor Coated - Electro galvanised

Tightening torque

30 Nm

Documents

Features & Applications

Features

Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Extensive software support – PROFIS Modular Support Engineering, BIMCAD content and Revit® families are all available to streamline design and ordering

Applications

Right-angle connections between any MT strut channels

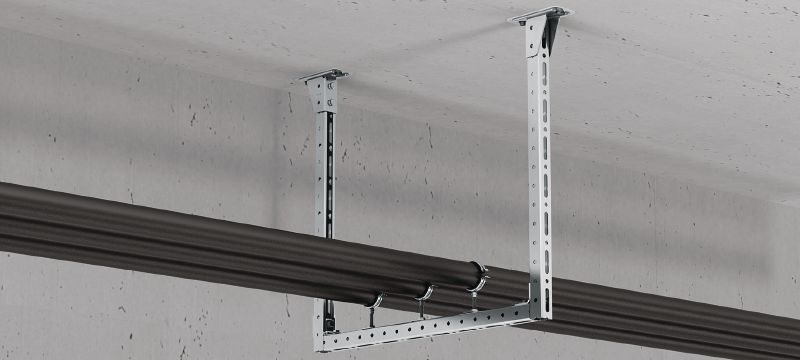

Assembling 2D metal framing for MEP support structures with light loads
Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
