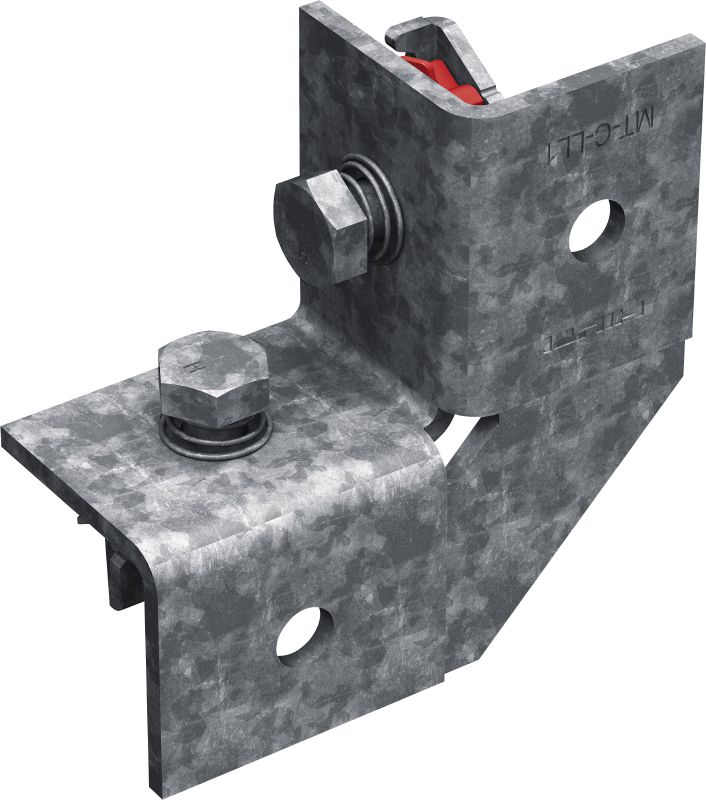

MT-C-LL1 FL OC Pre-assembled angle connector

Right-angle connector with pre-assembled Fast-Lock nut and bolt for assembling strut channel structures, for outdoor use with low pollution

  • Material composition: Q235B
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 4 mm

Technical Data

06_IS_MT-C-LL1 FL_0001 (3658349)
Material composition
Q235B
Material and coating
Carbon steel - outdoor coated
Material thickness
4 mm
Surface finish
Outdoor Coated - HDG
Tightening torque
40 Nm

Documents

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion

Applications

  • Fastening L-shaped connections between any MT strut channels
  • Assembling 2D metal framing for MEP support structures, such as strut trapeze
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
