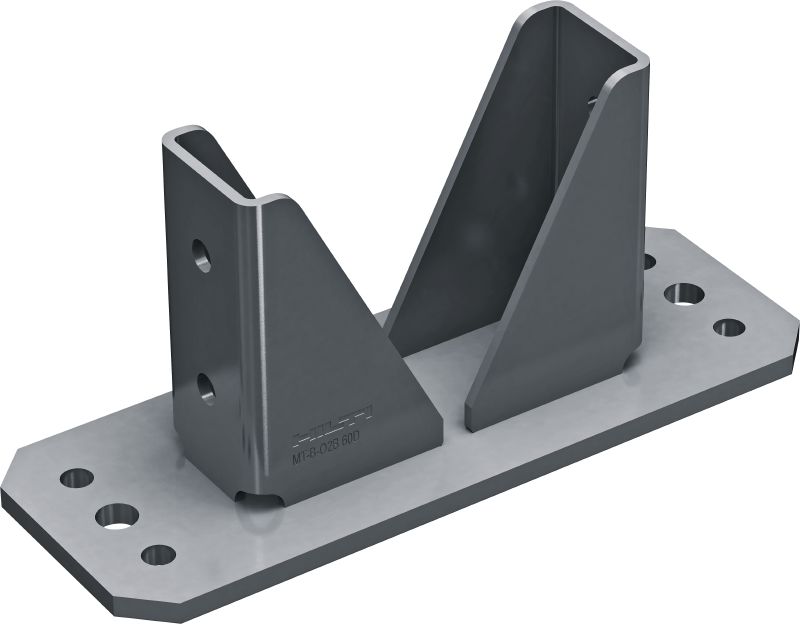

Base connector for anchoring MT-60D double strut channel to concrete in outdoor, low pollution environments

  • Material composition: Q355B
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: Baseplate 8 mm, Angle: 4mm

Technical Data

Material composition
Q355B
Surface finish
Outdoor Coated - HDG
Material thickness
Baseplate 8 mm, Angle: 4mm
Environmental conditions
Outdoor, low to moderate pollution (C3)

Documents

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Corrosion resistance – hot-dip galvanised baseplate for use in moderately corrosive environments
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to install – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
