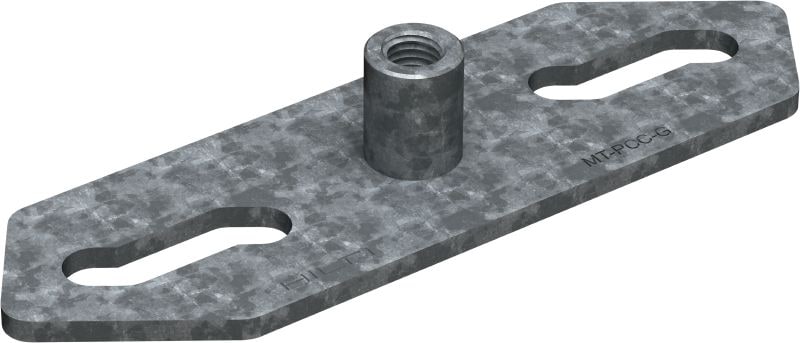

MT-PCC-G pipe clamp connector

Connector MT-PCC-G M8/M10 OC #2353801

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003795_v1 (2440452)

Threaded pipe clamp connector for fixing pipe clamps directly to MT girders

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 302.54
AED 30.25 / 1 Piece

Technical Data

Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
0.19 kg
Environmental conditions
Outdoor, low to moderate pollution (C3)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
Operating Instruction
pdf ETA-23-0103 Static Fire Saddle nuts, English [ 2 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Faster pipe clamp installation – attach a pipe clamp using just two thread forming bolts and an impact wrench with the Adaptive torque module
  • Full adjustability – easily install pipe clamps in the right position from M8 to M16
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
  • Helps lower installation cost – this new solution uses fewer and simpler components than previous Hilti pipe clamp connectors, saving you in advance costs and time on-site
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Connecting pipe clamps directly to MT-70, MT-80, MT-90 and MT-100 girders
  • Mounting medium/heavy-load pipes on trapeze
  • Mounting medium/heavy-load pipes on wall brackets
  • Mounting medium/heavy-load pipes on floor-mounted T-posts and goalposts
  • Mounting medium/heavy-load pipes on multi-trade MEP supports
