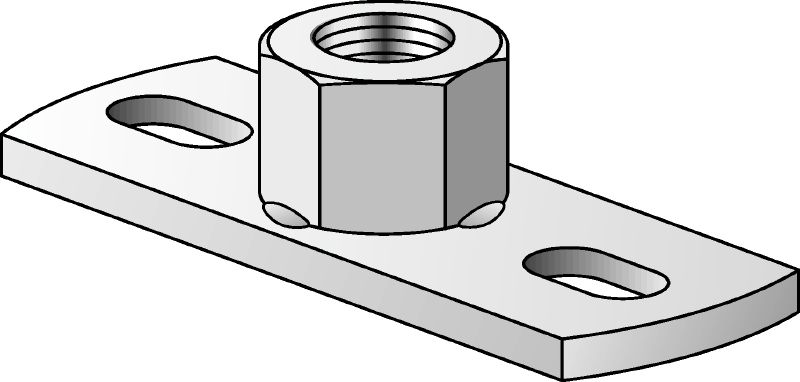

Galvanised medium-duty base plate to fasten metric threaded rods with two anchor points

  • Thread connection - M: M12
  • Height - H: 17 mm
  • Maximum tensile load - F: 3 kN

Choose options

Thread connection - M
  • M12
Height - H
  • 17 mm
Maximum tensile load - F
  • 3 kN
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

2 Packs (Total pieces 20)

Ex Vat and Packaging/Forwarding charges

AED 216.99

AED 10.85 / 1 Piece

Technical Data

Thread connection - M
M12
Height - H
17 mm
Maximum tensile load - F
3 kN
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2
Weight
0.15 kg

Features & Applications

Features

  • Supports the stable installation of threaded rod
  • Quicker, easier installation with fewer parts
  • Can be used in combination with metric threaded pipes

Applications

  • Fastening medium-duty pipes to concrete with two fastening points
  • Recommended for use in dry, interior environments
