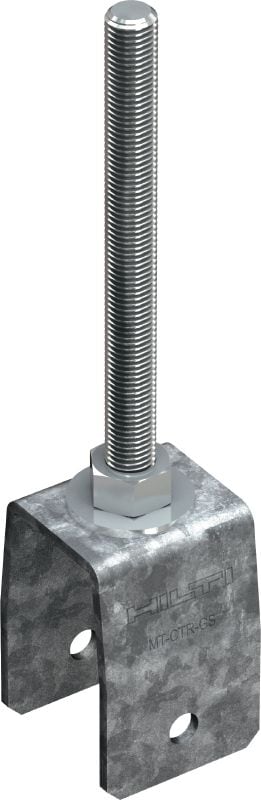

MT-CTR-GS OC Girder hanger
Connector MT-CTR-GS M16 OC #2332790
Hanger for suspending MT-70 and MT-80 girders from threaded rod to create heavy-duty MEP and HVAC trapeze
- Material composition: Q355 or better steel
- Surface finish: Outdoor Coated - HDG
- Material thickness: 4 mm
Choose options
Pack size
- 16 pc
Quantity
Packs
Total Pieces
16
Ex Vat and Packaging/Forwarding charges
AED 597.76
AED 37.36 / 1 Piece
Technical Data
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
0.45 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Features & Applications
Features
- Simpler inventory – these hangers make it possible to use standard MT girders in more situations
- Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
- Compatible with MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Applications
- Assembling trapeze for MEP and HVAC installations subject to loads too heavy for strut trapeze
