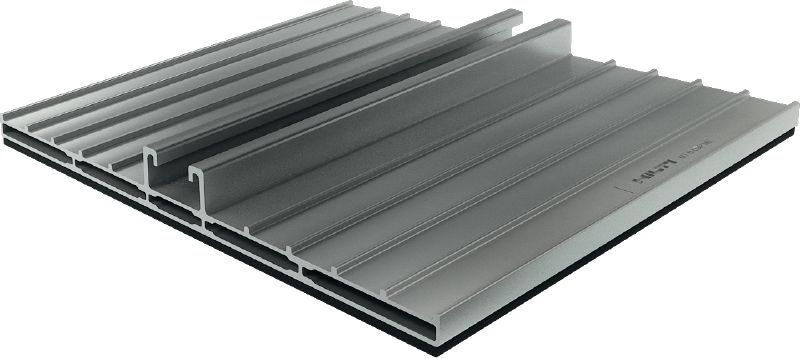

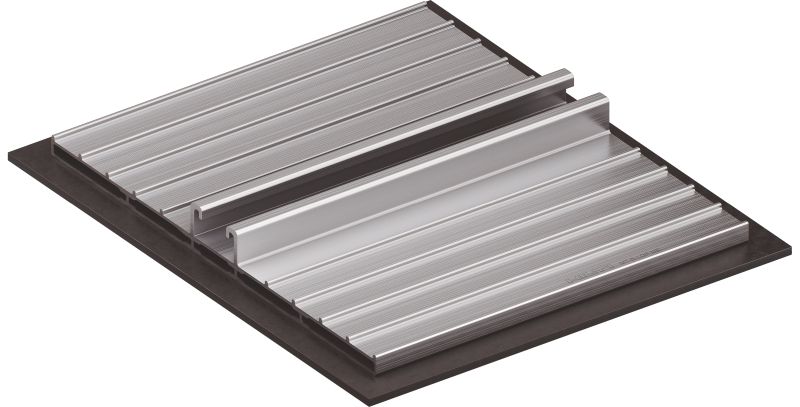

MT-B-LDP ME Load distribution plate

Load distribution plate MT-B-LDP ME #2464382

Medium load distribution plate for installing ventilation ducts and ventilation equipment on flat roofs

  • Material composition: Aluminium, Recycled Rubber blend SBR-PU-EPDM
  • Surface finish: n/a
  • Material thickness: 3 mm

Choose options

Pack size
  • 4 pc
Product options
Quantity
Packs
Total Piece
4
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

IS_MT-B-LDP_ME (4352519)
Material composition
Aluminium, Recycled Rubber blend SBR-PU-EPDM
Surface finish
n/a
Material thickness
3 mm
Weight
1.58 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for rooftop ventilation and other modular support systems
  • Easy to install – compatible with the Hilti MT Twist-Lock, MQN-C Push-button, MQM and MRM Channel Nut, a faster alternative to spring nuts for assembling a modular support system
  • Easier to handle and transport compared to pre-fabricated welded steel
  • Includes a rubber inlay – made from UV-resistant and recycled rubber to help protect the roof membrane
  • Suitable for outdoor applications, with features such as aluminum feet for better weather resistance

Applications

  • Installing ventilation equipment, ducts, pipework, cable trays on flat roofs
  • Suitable for use in outdoor environments
