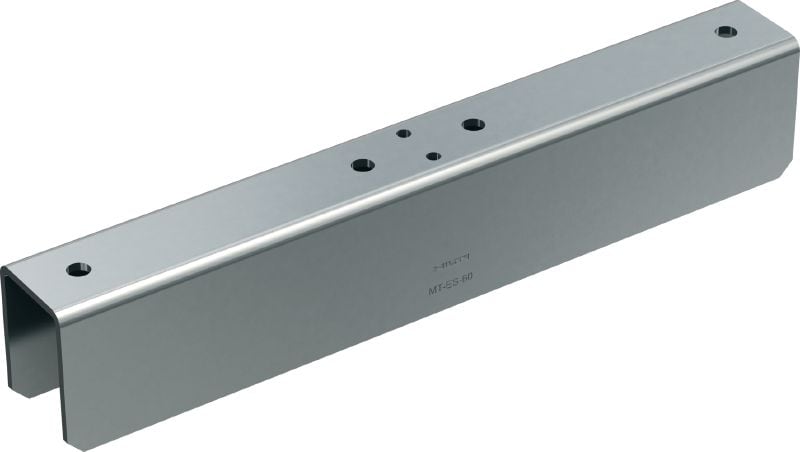

MT-ES-60 Splice clevis

Splice connector MT-ES-60 #2322415

Splice connector for coupling MT-60 strut channels end-to-end

  • Material composition: Q235 or better steel
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 4 mm

Choose options

Pack size
  • 8 pc
Product options
Quantity
Packs
Total Piece
8
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 2,382.72

AED 297.84 / 1 Piece

Technical Data

IS_MT_ES_60_0001 (227830)
Material composition
Q235 or better steel
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Weight
2.47 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
  • Adaptable – unlike welding, splice clevises allow modular metal framing to be modified for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Extending MT-60 channels by fastening them together end-to-end
  • Assembling metal framing for MEP support structures when longer spans or increased floor/ceiling clearance are required
  • Suitable for use in dry, indoor environments
